Hikvision Multi-channel SMPS

Hikvision Multi-channel SMPS

R 399.00 ZAR
R 399.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-2FA1205-C8

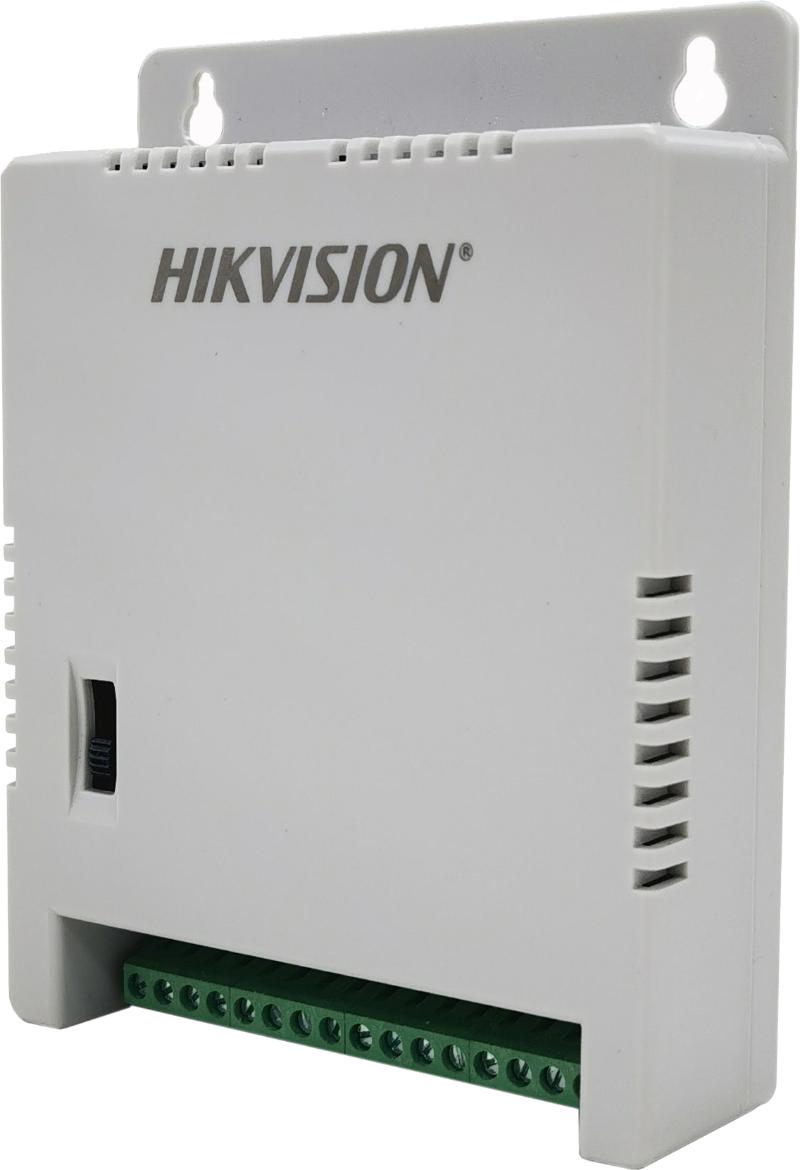

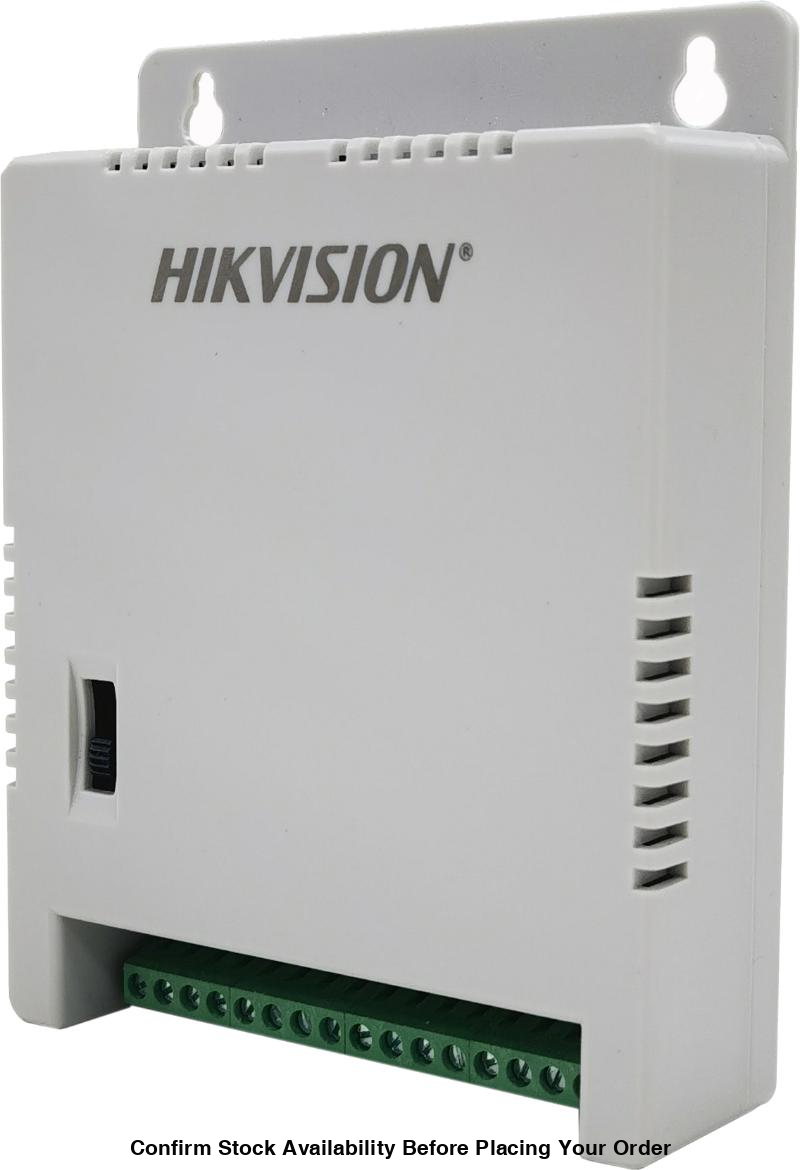

Hikvision Multi-channel SMPS

  • 60 W, 12 VDC/1 A max per channel, max total current is 5 A
  • Over current/short circuit/over voltage protection
  • Good EMC performance
  • Compact size; applicable to cameras
  • 150 to 285 VAC wide voltage input
  • Parameters
  • Appearance White
  • Dimension144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
  • Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
  • LED Indicator Green
  • Input150 to 285 VAC, 47 Hz to 63 Hz
  • Output12 VDC/1 A per channel
  • Ripple & Noise 150 mVp-p0.15 Vp-p (150 mV)
  • AC Input Connector C8
  • DC Output Connector DC Plug: grid terminal
  • Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
  • Cable Length Compensation

    Normal: 12 VDC

    Long: 13.5 VDC

    Ex-Long: 15 VDC
