DS-2FA1208-C16

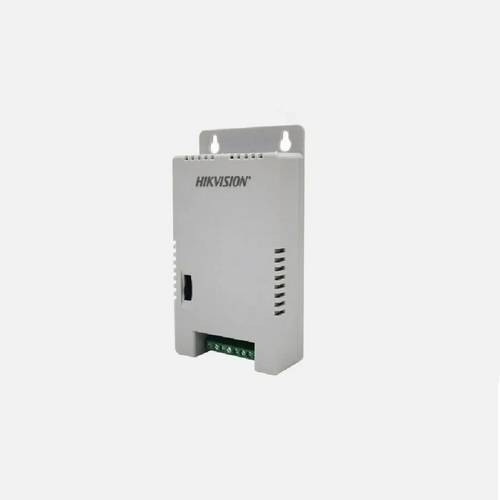

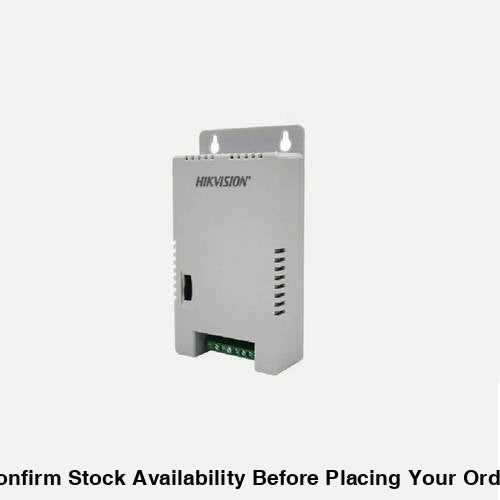

Hikvision Multi-channel SMPS

  • 96 W, 12 VDC/1 A max per channel, max total current is 8 A
  • Over current/short circuit/over voltage protection
  • Good EMC performance
  • Compact size; applicable to cameras
  • 150 to 285 VAC wide voltage input
  • Parameters
  • Appearance White
  • Dimension185 mm × 130.6 mm × 35 mm (7.28" × 5.14" × 1.38")
  • LED Indicator Green
  • Input150 to 285 VAC, 47 Hz to 63 Hz
  • Output12 VDC/1 A per channel
  • Ripple & Noise 150 mVp-p0.2 Vp-p (200 mV)
  • AC Input Connector C8
  • DC Output Connector DC Plug: grid terminal
  • Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
