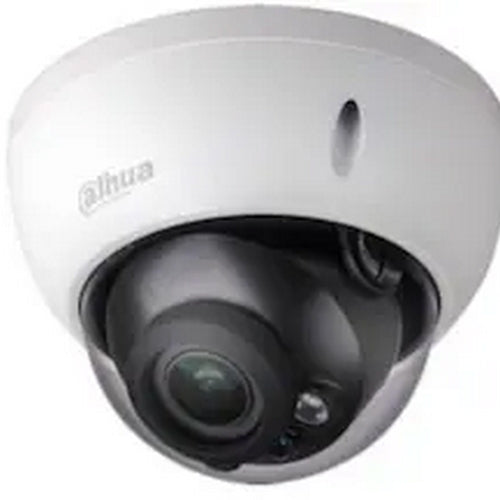

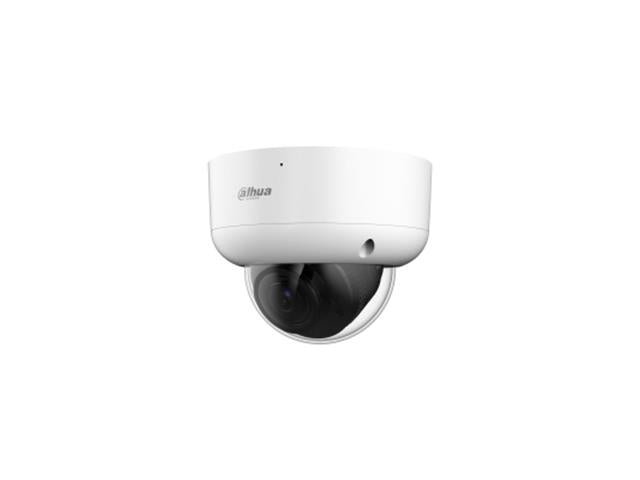

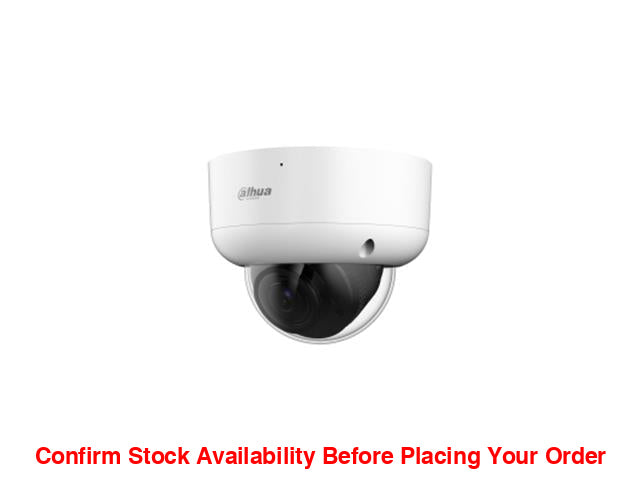

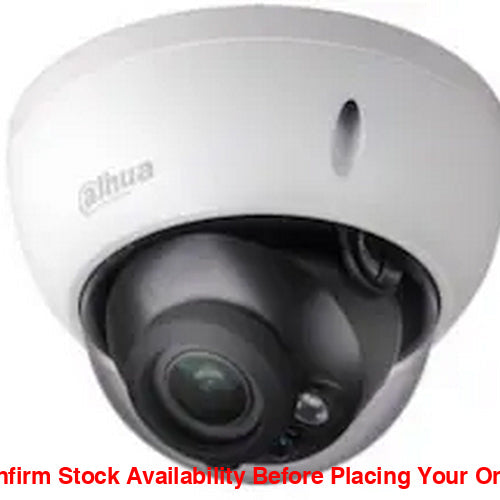

Dahua 2MP Dome 60m IR 2.7-12mm

Dahua 2MP Dome 60m IR 2.7-12mm

• Max 30 fps@1080P.
• Smart IR Illumination.
• 60 m illumination distance.
• Super Adapt.
• Built-in Mic.
• 2.7 mm–12 mm motorized lens.
• CVI/CVBS/AHD/TVI switchable.
• IP67, IK10, 24 VAC/12 VDC.

• Camera
  Image Sensor	2 MP CMOS
  Max. Resolution	1920 (H) × 1080 (V)
  Scanning System	Progressive
  Electronic Shutter Speed	PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
  Min. Illumination	0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
  S/N Ratio	>65 dB
  Illumination Distance	60 m (196.85 ft)
  Illuminator On/Off Control	Auto
  Illuminator Number	3 (IR light)
  Angle Adjustment	Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
  Lens
  Lens Type	Motorized Vari-focal
  Auto Focus	No
  Lens Mount	φ14
  Focal Length	2.7 mm–12 mm
  Max. Aperture	F1.6
  Field of View	H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°
  Iris Control	Fixed
  Close Focus Distance	0.8 m (2.62 ft)
  DORI Distance	Lens	Detect	Observe	Recognize	Identify
  	2.7 mm	47.4 m (155.51 ft)	18.9 m (62.01 ft)	9.5 m (31.17 ft)	4.7 m (15.42 ft)
  	12 mm	155.6 m (510.50 ft)	62.2 m (204.07 ft)	31.1 m (102.03 ft)	15.6 m (51.18 ft)
  Video
  Video Frame Rate	CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H
  Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  Day/Night	Auto(ICR)/Color/B/W
  BLC	BLC; HLC; DWDR
  WDR	DWDR
  White Balance	Auto;Area white balance
  Gain Control	Auto
  Noise Reduction	3D NR
  Illumination Mode	Smart IR
  Mirror	Yes
  Privacy Masking	Off/On (8 areas, rectangle)
  Certification
  Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
  Port
  Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  Audio Input	One channel built-in Mic
  Power
  Power Supply	24 VAC ± 30%;12 VDC ± 10%
  Power Consumption	Max 7.3 W (12 VDC, IR on)
  Environment
  Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
  Operating Humidity	<95% (RH), non-condensing
  Storage Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
  Storage Humidity	<95% (RH), non-condensing
  Protection	IK10;IP67
  Anti-corrosion Level	Basic Protection
  Structure
  Casing Material	Metal
  Product Dimensions	φ126 mm × 100 mm (φ4.96" × 3.94")
  Net Weight	0.65 kg (1.43 lb)
  Gross Weight	0.83 kg (1.83 Ib)
  Installation	Wall mount; ceiling mount; vertical pole mount
