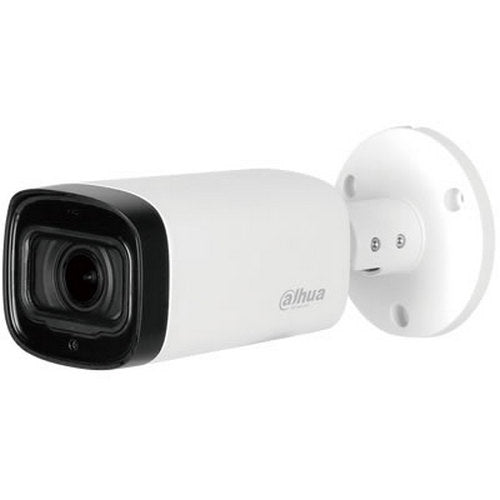

• Dahua 2MP Bullet 80m IR 2.7-12mm
1 2

Dahua 2MP Bullet 80m IR 2.7-12mm

Dahua 2MP Bullet 80m IR 2.7-12mm

R 1,139.00 ZAR
R 1,139.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DH-HAC-HFW1200RP-Z-S6_2.7-12mm

Dahua 2MP Bullet 80m IR 2.7-12mm

> Max. 30 fps@1080p.

> Smart IR Illumination.
> 80 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 2.7 mm–12 mm motorized lens.
> CVI/CVBS/AHD/TVI switchable.
> IP67, 24 VAC/12 VDC

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

No

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

47.4 m
(155.51 ft)

18.9 m
(62.01 ft)

9.5 m
(31.17 ft)

4.7 m
(15.42 ft)

12 mm

155.6 m
(510.50 ft)

62.2 m
(204.07 ft)

31.1 m
(102.03 ft)

15.6 m
(51.18 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

24 VAC ± 30%;12 VDC ± 10%

Power Consumption

Max 11.4 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal

Product Dimensions

209.6 mm × 90.4 mm × 90.4 mm (8.30" × 3.56" × 3.56")

Net Weight

0.58 kg (1.28 lb)

Gross Weight

0.79 kg (1.74 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
