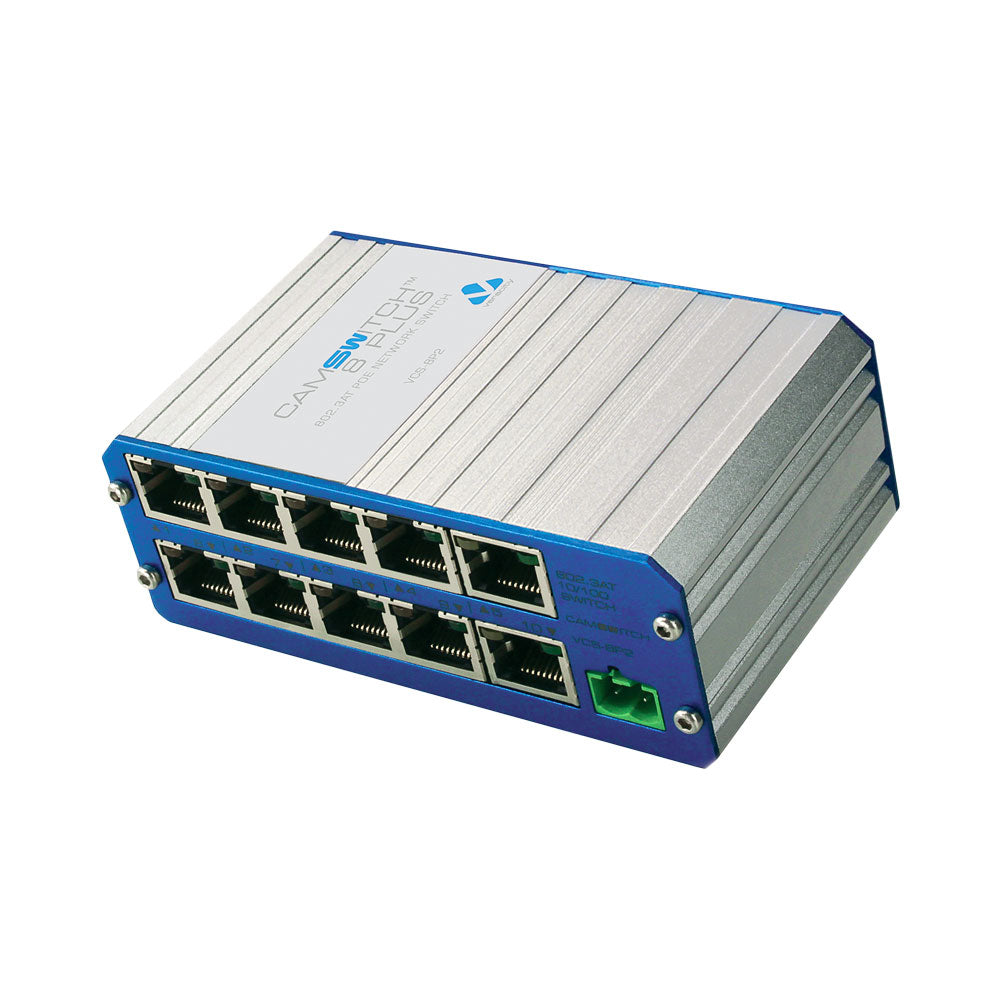

CAMSWITCH 8 PLUS

FEATURES • Camswitch Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation • An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget • Camswitch 8 Plus features 8 802.3 at POE ports, as well as 2 further network ports, and is compatible with Veracity's rack-mounting system SPECIFICATIONS • Total Camera Power Budget 40 watts - VPSU-57V-800 power supply 78 watts - VPSU-57V-1500 power supply 25 watts - VOR-OSP POE injector 10 watts - 802.3af POE switch Network • 5/10 port unmanaged 10/100 switch • Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex • Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables • VCS-8P2 supports VLAN trunking Power • Device power: 3W • POE outputs: IEEE802.3af / IEEE802.3at compliant • POE input: IEEE802.3af compliant / custom high power Dimensions • W: 110m / 131mm with side clips • D: 64mm / 76-80mm including connectors • H: 22mm (VCS-4P1) / 40mm (VCS-8P2) • Weight: 135g (VCS-4P1) / 225g (VCS-8P2)
