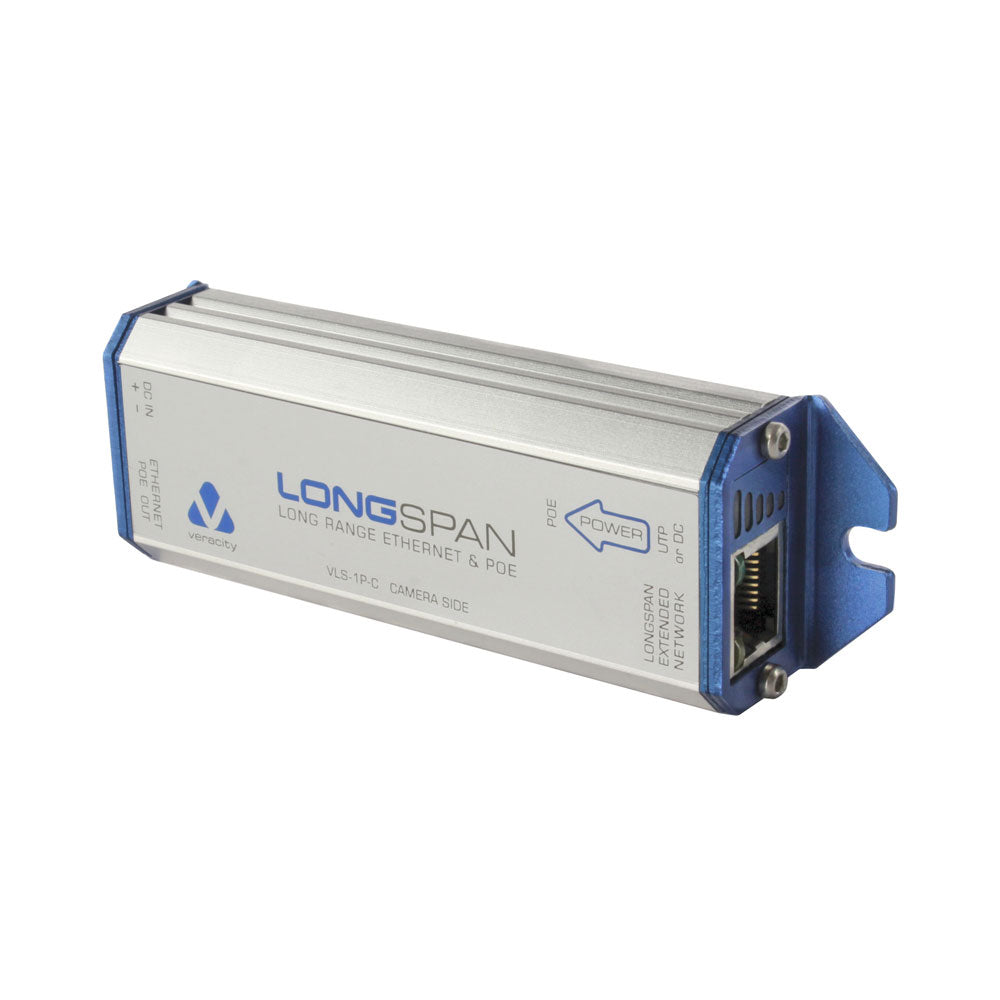

LONGSPAN POE CAMERA UNIT

FEATURES • Camera-Side LONGSPAN Device - Connects directly to IP cameras for extended-distance installations • Full-Bandwidth Ethernet - Supports 100Base-TX Ethernet up to 820m using standard network cable • PoE and PoE+ Delivery - Provides up to 25W of power to connected IP cameras • Plug-and-Play Operation - Automatically optimises performance without manual configuration • SAFEVIEW LED Diagnostics - Displays link status and available power for easy installation • Ideal for Remote Surveillance Deployments - Perfect for long cable runs in security and monitoring SPECIFICATIONS POWER • PoE Out (Camera): IEEE 802.3af (PoE) or IEEE 802.3at (PoE+) LONGSPAN INTERFACE • Connector: RJ45 • Cable: CAT6, CAT5e, CAT3 or Other 1/2/4-Pair UTP • Wiring: Patch Wiring Recommended, Other Wiring Auto-Corrected • Rate: 200Mbps (100Mbps Full-Duplex) up to 820m (CAT6) • Rate: 20Mbps (10Mbps Full-Duplex) up to 1050m (CAT6), Auto-Adapts ETHERNET INTERFACE • Connector: RJ45 • Cable: Patch or Crossover, Auto-Detected • Rate: 100Base-TX or 10Base-T, Full-Duplex with Auto-Negotiation LED INDICATORS • Ethernet RJ45: Yellow - Link/Activity, Green - Power Good • LONGSPAN Link RJ45: Yellow - Link/Activity, Green - 10/100Mbps • PoE: Power Available (5/10/15/20/25W) • PoE and Link Status: Green/Amber, Diagnostic Codes (Red) PHYSICAL / ENVIRONMENTAL • Dimensions: 120 × 36 × 23mm (Including Brackets) • Weight: 100g • Operating Temperature: -40~70°C • Relative Humidity: Up to 85% Non-Condensing • Compliance: FCC, CE, RoHS, UL, UKCA, BS EN 50121-4 (Rail + Metro)
