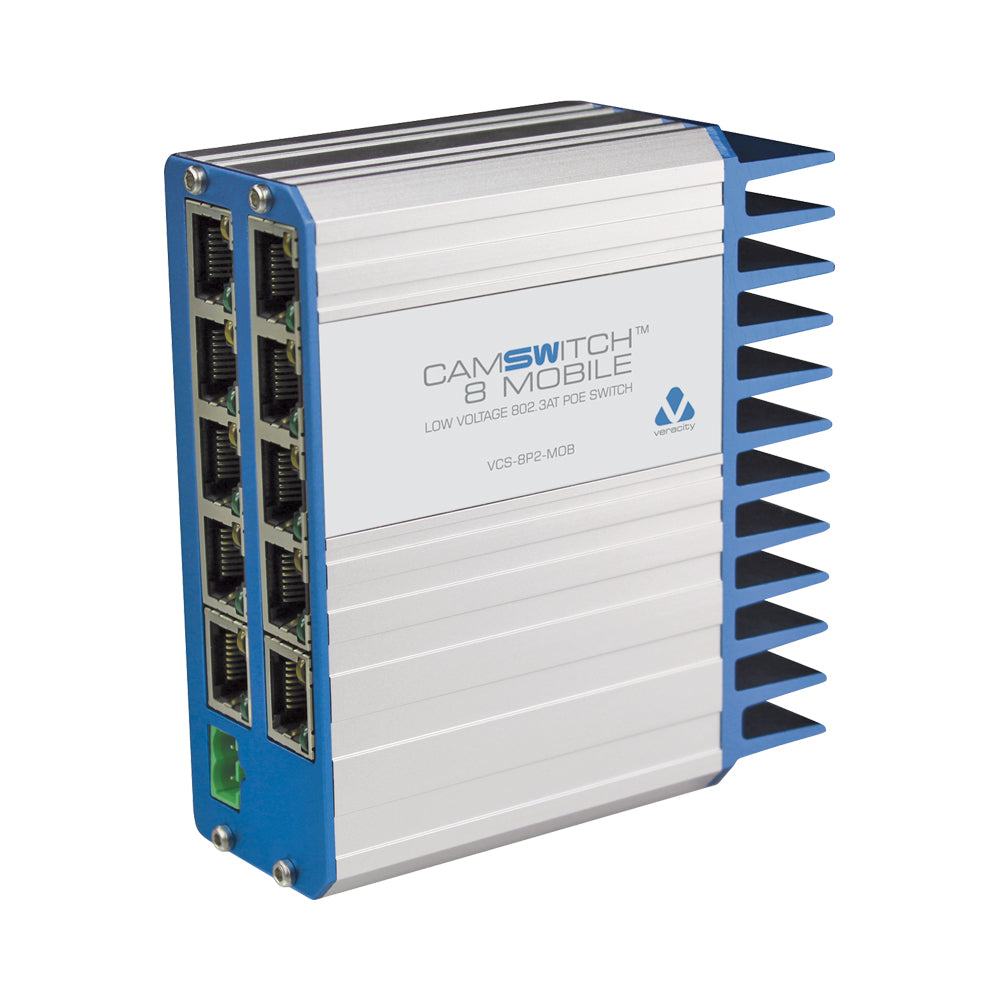

CAMSWITCH 8 MOBILE

FEATURES • Designed for Mobile Power Systems - Operates from a 12~24V DC source such as a vehicle battery, ideal for mobile surveillance installations • 8× PoE Camera Ports - Connect and power up to eight IP cameras using IEEE 802.3af / 802.3at PoE and PoE+ outputs • 80W Total PoE Budget - Provides up to 80W of power to connected devices for reliable camera operation • 2× Dedicated Uplink Ports - Additional network ports for connecting devices such as a mobile NVR, NTP time server or 4G modem • Auto-Configuring 10/100 Switch - Plug-and-play Ethernet switching with automatic network configuration • Rugged Mountable Enclosure - Durable housing with adjustable mounting brackets for secure installation in vehicles or mobile environments SPECIFICATIONS OWER INPUT DC CONNECTOR • Detachable Screw Terminal DC VOLTAGE • 8.5~40V DC (Minimum Startup Voltage: 10.5V) • Supports Engine Cranking and Reduced Over-Discharge • DC Only (Contact Veracity for 24VAC Applications) FUSING • Use of an External Fuse is Recommended • Rating: 5A for 24VDC or 10A for 12VDC Supply (Slow Blow Type) DEVICE POWER • 3W POE OUTPUTS POE STANDARD • IEEE 802.3af / IEEE 802.3at Compatible • Not Isolated from DC Input (For Use in Closed System Transport Applications) • Connected Devices Must be IEEE Compliant • Veracity Enhanced PoE Supports Maximum Efficiency and Range POWER BUDGET 24V INPUT • 80W Total Camera Power 12V INPUT • 80W (Reduce to 65W for Max. 30°C Temperature Rise Above Ambient) <12V INPUT • 60W (Reduce to 50W if Voltage Can Drop Below 10V) NOTES • PoE Power Conversion Produces Heat • Above Limits are for Horizontal Mounting with Ventilation • Installation in Enclosed Spaces Will Cause Additional Heating and Power Limiting • Warning: Enclosure May Become Hot in Operation ETHERNET INTERFACE CONNECTOR • RJ45, 8-Port Unmanaged 10/100 Switch RATES • 100Base-TX or 100Base-T • Duplex Auto-Configuring for Speed CABLE • Straight Through or Crossover CAT5, CAT5e or CAT6 Patch • Supports VLAN Trunking LED INDICATORS GREEN – POE PORTS • Constant: PoE Enabled • Off: No PoE Requested GREEN – NON POE PORTS • Constant: Power OK • Off: No Power YELLOW • Constant: Ethernet OK • Blink: Network Activity PHYSICAL / ENVIRONMENTAL DIMENSIONS (L × W × H) • 110mm (131mm with Side Clips) × 100mm (Including Connectors) × 40mm MOUNTING (BRACKETS INCLUDED) • 5mm Mounting Holes on 122mm Centres WEIGHT • 350g OPERATING TEMPERATURE • -10~50°C RELATIVE HUMIDITY • Up to 85%, Non-Condensing COMPLIANCE • CE • FCC • RoHS
