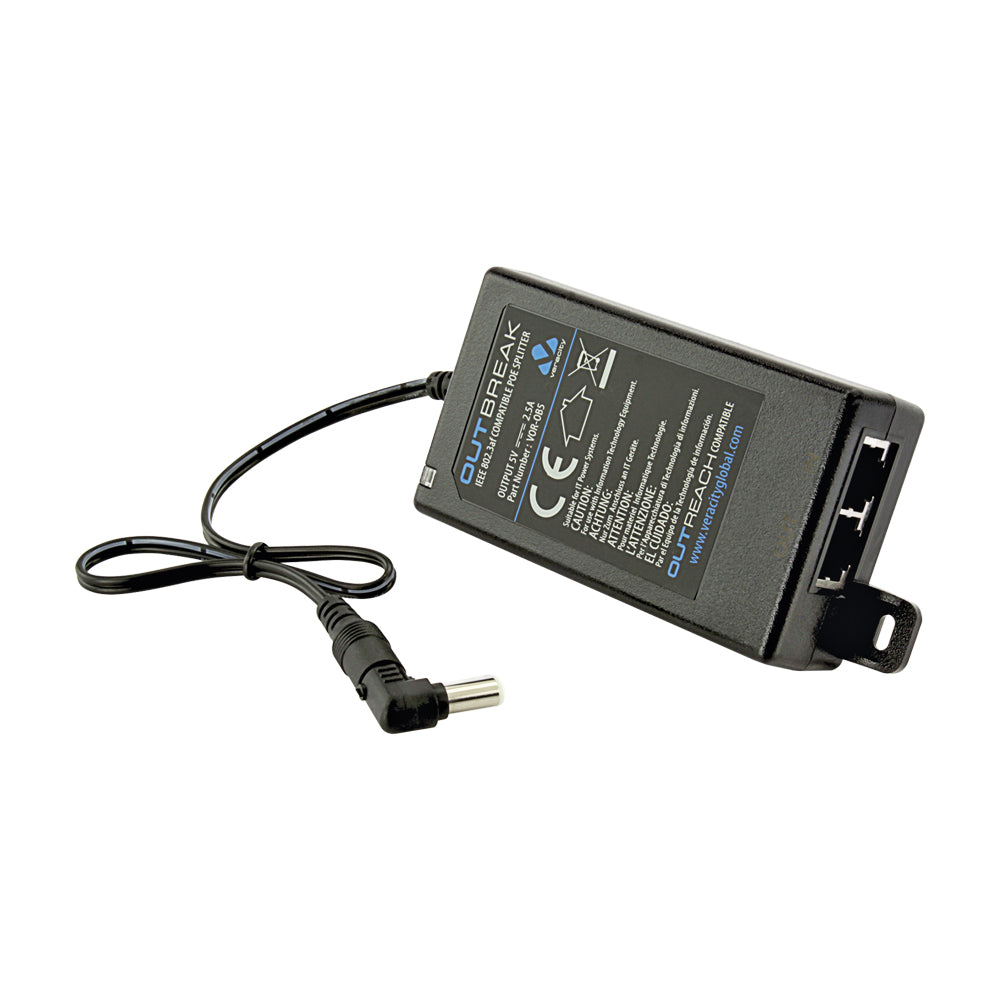

VERACITY VOR-OB5 OUTBREAK 5V POE SPLITTER

FEATURES • PoE to DC Power Conversion - Converts 48V PoE input to stable 5V DC output • IEEE 802.3af Compliant - Fully compatible with standard PoE infrastructure • Gigabit Ethernet Support - Compatible with 10/100/1000 Base-T networks • Clean Power Delivery - Provides reliable power for sensitive network devices • Data and Power Splitting - Separates Ethernet data and DC power output • Compact Installation Design - Small form factor with integral wall-mount lugs • Short-Circuit Protection - Added safety for connected devices SPECIFICATIONS • Input Voltage: 36V to 56V DC • Input Current: 0.6A at 36V Maximum Load • Output Power: 12.5W at 5V DC • PoE Standard: IEEE 802.3af • Ethernet Ports: RJ45 Data and PoE IN, RJ45 Data OUT • Network Compatibility: 10/100/1000 Base-T • DC Output Connector: Barrel Connector 9 × 2.5 × 5.5mm Centre Positive • Status Indicator: Green LED Output Status • Dimensions: 100 × 56 × 28mm • Weight: 200g • Mounting: Integral Wall-Mount Lugs • Operating Temperature: 0~40°C • Relative Humidity: 5~90% Non-Condensing • Compliance: CE, FCC, RoHS, UKCA
