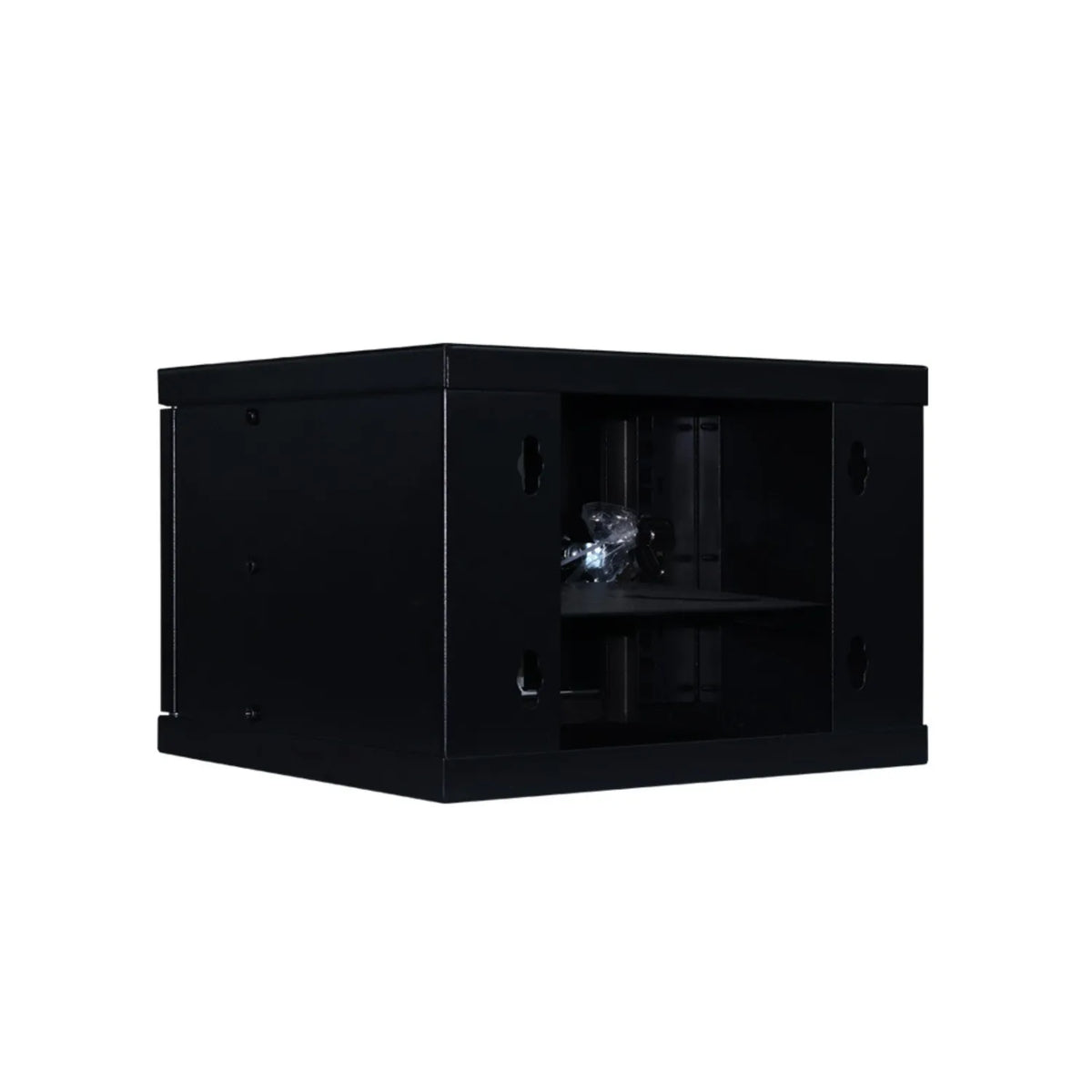

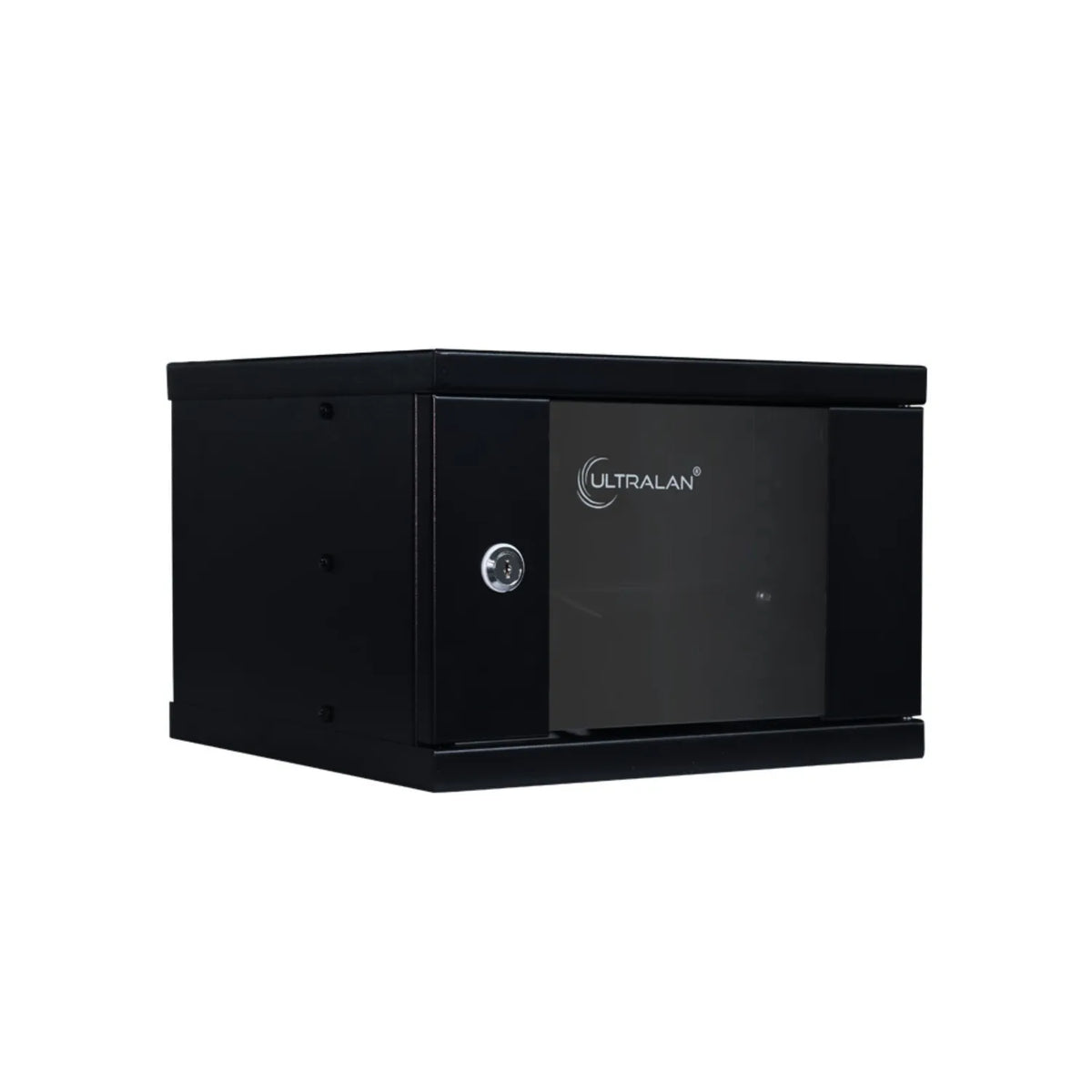

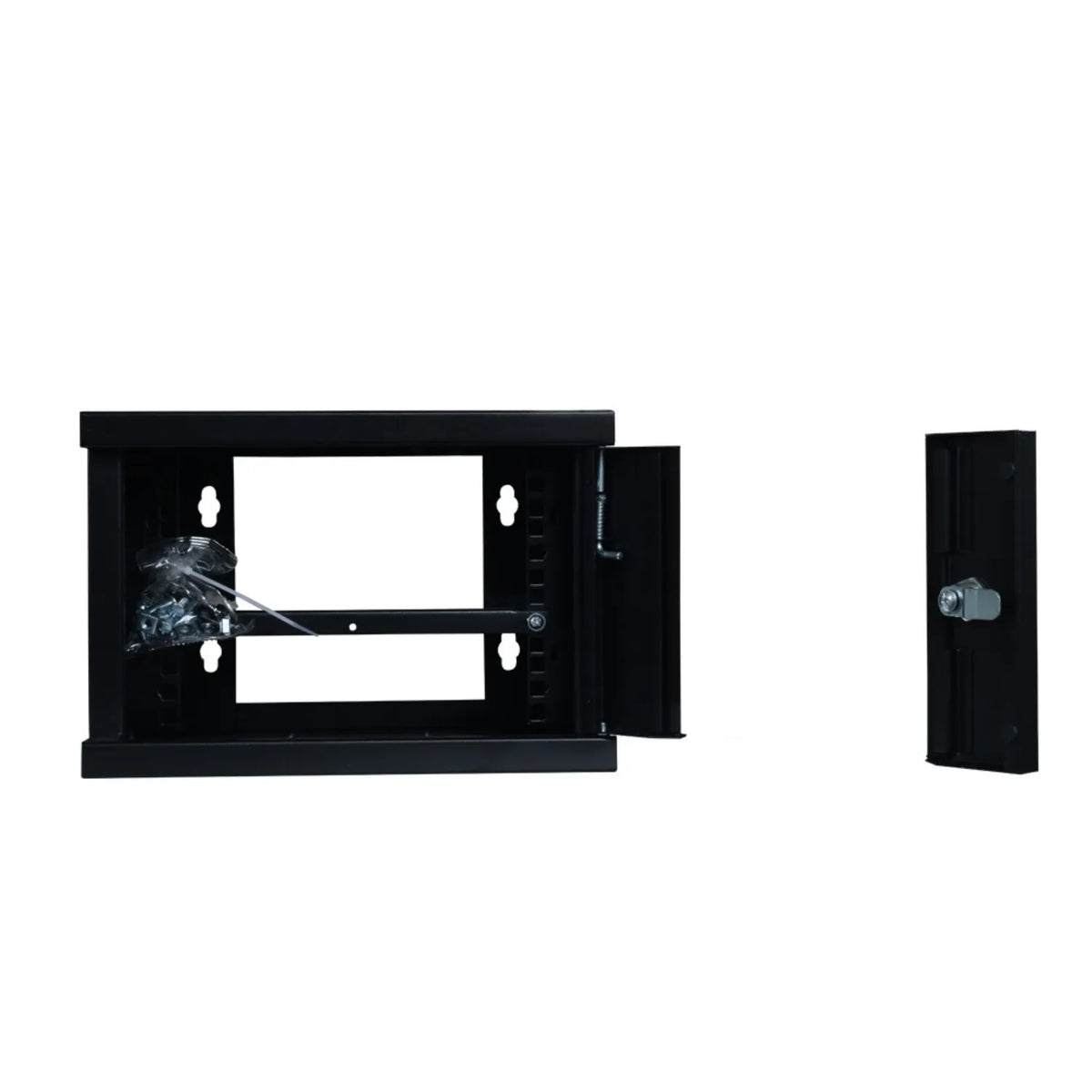

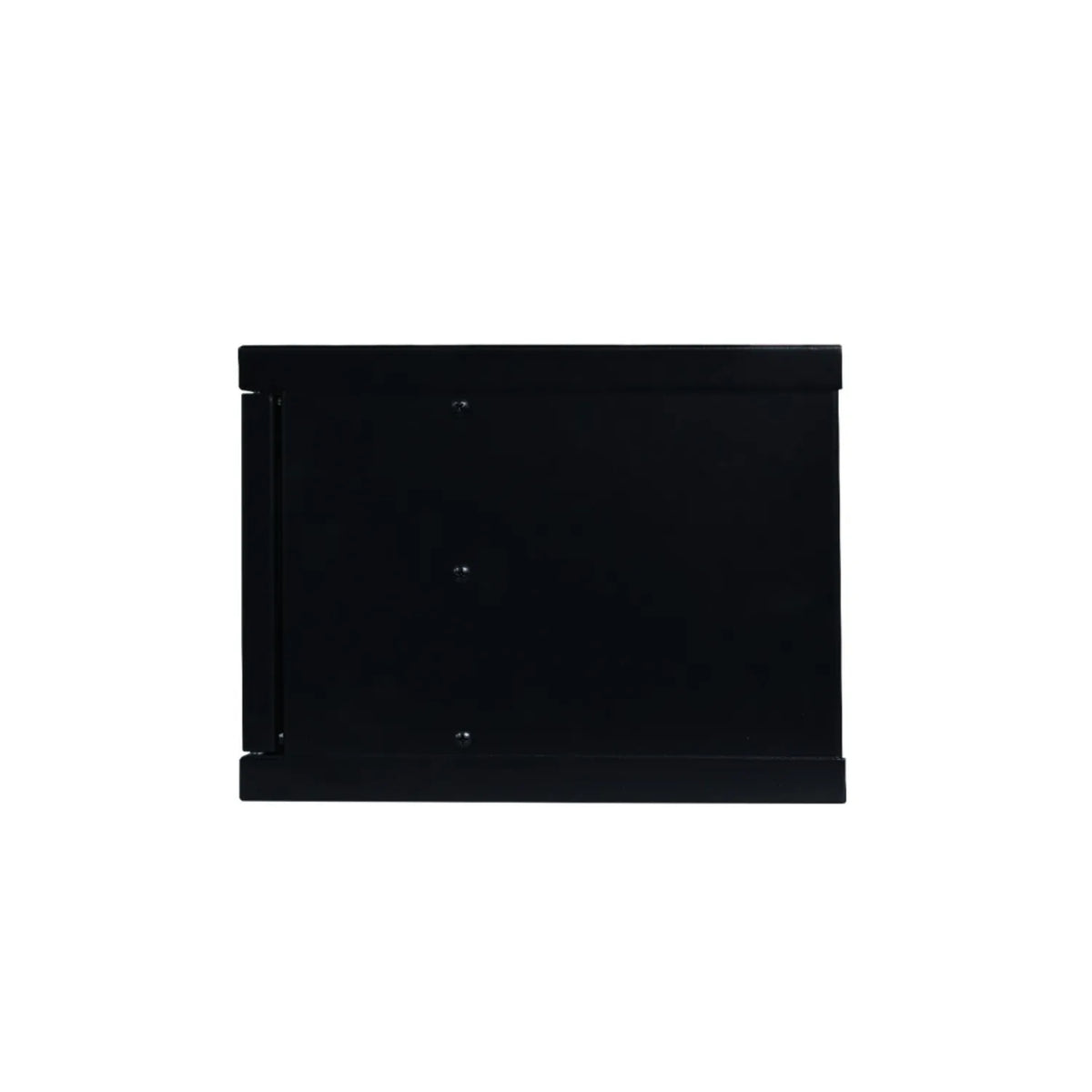

UltraLAN Mini 4U Fixed Wall Mount Cabinet

UltraLAN Mini 4U Fixed Wall Mount Cabinet
The UltraLAN Mini 4U Fixed Wall Mount Cabinet is a compact and durable solution designed for small-scale networking installations where space efficiency is essential. Ideal for retail shops, small offices, and educational environments, this cabinet provides secure housing for 254 mm (10-inch) standard equipment while saving valuable floor space.

Constructed from SPCC cold rolled steel, the cabinet features a 5 mm tempered glass front door with over 180° opening capability, allowing clear visibility and easy access to installed devices. Cable entry points at both the top and bottom ensure flexible routing, while the L-shaped mounting profile simplifies accessory installation. With four fixing holes on the back panel, the cabinet can be securely mounted to walls with minimal effort.

The cabinet supports a static loading capacity of up to 15 kg and comes with a powder-coated finish for enhanced durability and scratch resistance. Certified to CE, RoHS, and EC60297-3 standards, it guarantees reliability and compliance with industry requirements.

Product Features:

• Compact 254 mm (10-inch) single-section design
• 5 mm tempered glass front door with lock
• Cable entry at top and bottom
• L-shaped mounting profile for easy accessory installation
• Static loading capacity: 15 kg
• Surface finish: Degreasing, phosphating, powder coated

Dimensions (4U Model):
Width: 325 mm

Depth: 300 mm

Height: 222.4 mm

Volume: 0.027 cbm

Package Contents:
1x 4U wall mount cabinet (assembled)
