HikCentral-P-VSS-Base/HW/300Ch(O-STD)(B)

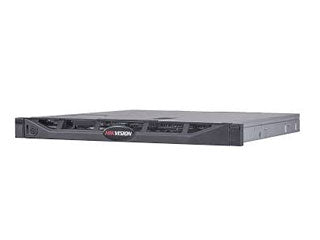

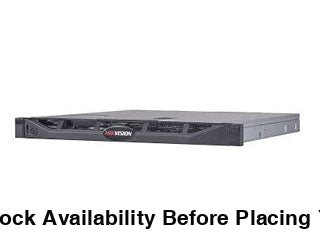

Hikvision Rackmount VMS Server

  • HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution
  • 1) Plug and play: No additional activation is required, and it is ready to use right out of the box
  • 2) Easy to use: Pre-installed operating system, easy to operate and deploy
  • All-in-one software and hardware, no activation required, easy delivery and reliable service
  • 1) Guaranteed compatibility: Tested by professional testing team to ensure stable operation
  • 2) Reliable after-sales service: 24/7 platinum after-sales service
    • Devices and Resources
    • Video Management300ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
    • Access Controls Not included; can be expanded into 1024 (Including Doors and Outdoor Station)
    • Indoor Station Not included; can be expanded into 5000
    • ANPR Cameras Not included; can be expanded into 1024ch
    • Lanes of Entrance & Exit Not included, can be expanded into 40
    • Cameras with Face Capture Function Not included; can be expanded into 3000ch
    • Alarm Panel Not included; can be expanded into 1024
    • Smart Walls Not included; can be expanded into Smart Walls：32；Decoding devices：32
    • Attendance Not included, can be expanded by extra license
    • Hardware Specifications
    • CPUE-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads
    • Memory

      Standard Config：1 × 16GB UDIMM，3200MT/s

      Scalability：4 × 128GB UDIMM

    • Hard Disks

      Standard Config：2×1TB 3.5 inch SATA HDD

      Scalability：2×22TB 3.5 inch SATA/SAS HDD

    • Storage Controller

      Standard Config PERC H355 adaptor LP (support RAID 0/1)

      Compatibility Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache

    • Supported Operating SystemsWinSvr2019 multilingual version pre-installed
    • PCIe Slots Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
    • Management
    • Remote ManageiDrac9 Enterprise
    • Open Manage™ Software Support Open Manage Enterprise and Plugins (Power Manager, Support Assist, and Update Manager)
    • Integrations and Connections

      Integrations: Microsoft® System Center, VMware® vCenter™, BMC True sight (available from BMC), Red Hat Ansible;

      Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

    • Security Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)
    • Ports
    • USB 3.00（Front）+1（Rear）
    • USB 2.01（Front）+1（Rear）
    • Ethernet Port2 x LAN 10/100/1000
    • VGA1
    • iDRAC Direct (Micro-AB USB) Port1
    • iDRAC Ethernet Port1
    • Manager Port1
    • General
    • Net Weight12.2 kg (26.9 lb)
    • Gross Weight18.5 kg (40.79 lb)
    • Dimension (W × H × D)482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
    • Package Dimensions (W × H × D)595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'')
    • Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
    • Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
    • Operating Humidity 8% to 80% (no condensation)
    • Storage Humidity 5% to 95% (no condensation)
    • Power Supply 450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
    • Form Factor1U Rack
