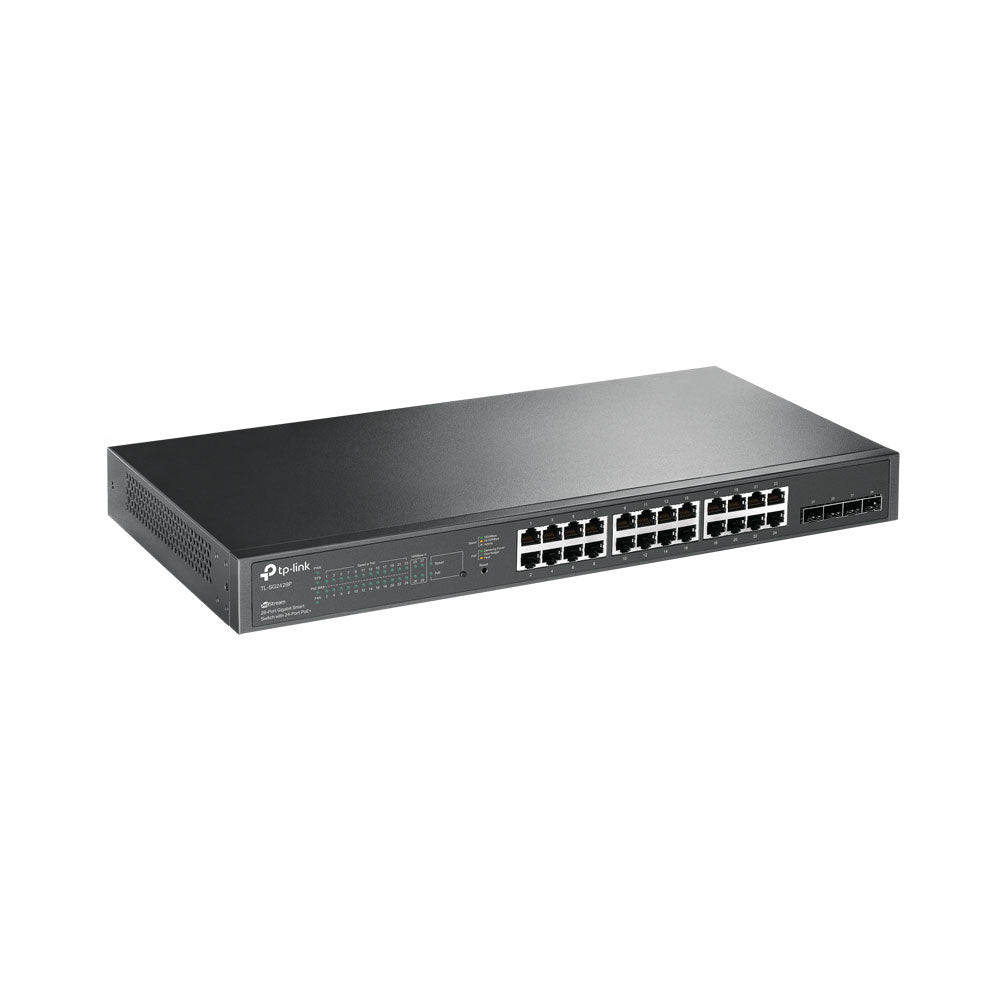

TP-LINK 24-PORT GBE POE+, 4SFP OMADA CLOUD SWITCH

FEATURES • 250W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250W • Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring • Centralized Management: Cloud access and Omada app for ultra convenience and easy management • Static Routing: Helps route internal traffic for more efficient use of network resources • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery SPECIFICATIONS HARDWARE • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x • Interface: 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF • Fan Quantity: 2 • PoE+ Ports(RJ45): Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • Power Supply: 250 W • Dimensions (W x D x H) 440 × 220 × 44mm • Mounting: Rack Mountable • Max Power Consumption: 32.1W (110V/ 60Hz with no PD connected) • 308.6W (110V/ 60 Hz with 250W PD connected) • Max Heat Dissipation: 109.53 BTU/h (with no PD connected) • 1052.94 BTU/h (with 250W PD connected) PERFORMANCE • Bandwidth/Backplane: 56 Gbps • Packet Forwarding Rate: 41.7Mbps • MAC Address Table: 8K • Packet Buffer Memory: 4.1 Mbit • Jumbo Frame: 9KB SOFTWARE FEATURES • Quality of Service: - Support 802.1p CoS/DSCP priority - Support 8 priority queues - Queue scheduling: SP, WRR, SP+WRR - Port/Flow- based Rate Limiting - IPv6 QoS - Voice VLAN • L2 and L2+ Features: - Static Routing - DHCP Relay - DHCP Server - IGMP Snooping V1/V2/V3 - 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) - Spanning Tree STP/RSTP/MSTP - BPDU Filtering/Guard - TC/Root Protect - Loopback detection - 802.3x Flow Control - LLDP, LLDP-MED • VLAN: - Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) - MAC/Protocol-based VLAN • Access Control List: - L2–L4 package filtering - MAC ACL - IP ACL - Combined ACL - IPv6 ACL • Security: - AAA - Port Security - DHCP Snooping - IP-MAC-Port Binding - IPv6-MAC-Port Binding - ARP Inspection - 802.1x and Radius Authentication - SSH v1/v2 - SSL v3/TLSv1.2 - Broadcast/Multicast/Unknown-unicast Storm Control - Dos Defend • IPv6: - Dual IPv4/IPv6 stack - Multicast Listener Discovery (MLD) Snooping - IPv6 neighbour discovery (ND) - Path maximum transmission unit (MTU) discovery - Internet Control Message Protocol (ICMP) version 6 - TCPv6/UDPv6 • IPv6 Applications: - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP MANAGEMENT • Omada App: Yes • Centralized Management: - Omada Cloud-Based Controller - Omada Hardware Controller (OC300) - Omada Hardware Controller (OC200) - Omada Software Controller • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) • Management Features: - Web-based GUI and CLI management - SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs - RMON (1, 2, 3, 9 groups) - CPU Monitoring - Port Mirroring - Firmware Upgrade: TFTP & Web - System Diagnose: VCT - SYSLOG & Public MIBS - Dual Image - EEE OTHERS • Certification: CE, FCC, RoHS • Environment - Operating Temperature: 0–50 °C (32–122 ℉); - Storage Temperature: -40–70 °C (-40–158 ℉) - Operating Humidity: 10–90% RH non-condensing - Storage Humidity: 5–90% RH non-condensing • System Requirements: Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux
