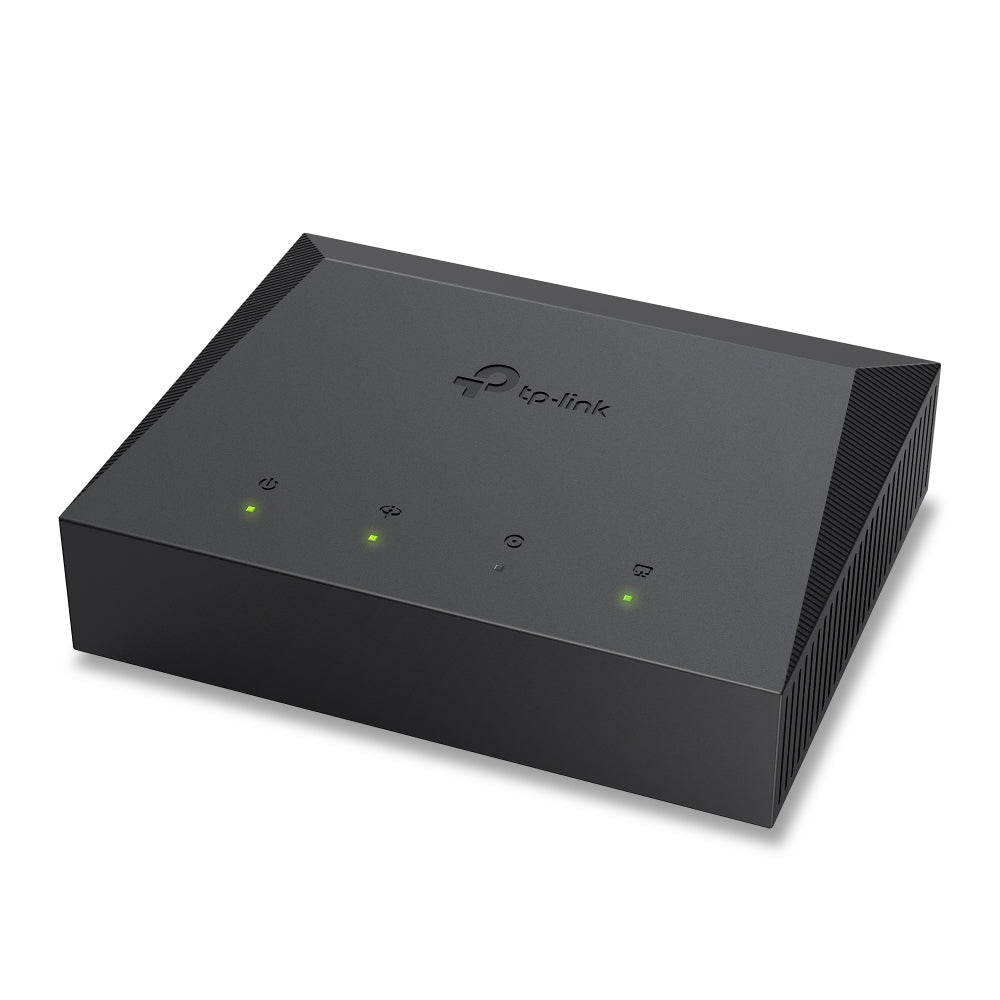

TP-LINK XZ000-G6 1-PORT GIGABIT XPON TERMINAL

FEATURES • High-speed GPON performance - Supports up to 2.488Gbps downstream and 1.244Gbps upstream for reliable high-bandwidth services • Gigabit wired connectivity - 1× Gigabit LAN port delivers fast and stable wired network access • FTTH ready solution - Ideal for fibre-to-the-home deployments with seamless integration into existing infrastructure • Easy remote management - OMCI support enables simple provisioning, configuration and maintenance • Advanced GPON technology - Supports DBA and FEC for efficient bandwidth allocation and improved transmission stability • Secure network operation - Features AES encryption and VLAN-based filtering for enhanced data security SPECIFICATIONS HARDWARE FEATURES • Interface: 1× PON Port, 1× Gigabit LAN Port • Button: Reset Button • Power Supply: 9V 0.6A • IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q • Data Rates: Up to 2.488Gbps Downstream / 1.244Gbps Upstream (GPON), 1.25Gbps Symmetrical (EPON) • Wavelength: 1490nm Downstream, 1310nm Upstream • Optical Module: Class B+ • Transmission Distance: up to 20km • Transmitter: DFB Laser • Receiver: PIN-TIA • Dimensions: 95 × 75 × 29.3mm SOFTWARE FEATURES • Protocols: IPv4 and IPv6 Supported • Working Mode: Bridge • GPON Features: DBA, FEC • VLAN: 802.1Q Tag VLAN • VLAN Modes: Transparent / Translation / Trunk • Authentication: SN and Password Based, VLAN Auto Detect • IGMP: IGMP v1/v2/v3 • Management: Local (WebGUI, Telnet), Remote (OMCI) • Security: AES Encryption, VLAN-based Packet Filtering • Advanced Features: Optical Power Detection, Dying Gasp, Terminal Silent Mechanism, up to 16× T-CONTs and 256× GEM Ports GENERAL SPECIFICATIONS • GPON Standard: ITU-T G.984 Series (Class B+) • EPON Standard: 1000BASE-PX20+ • Receiving Sensitivity: -27dBm (GPON/EPON) • Transmitting Power: 0.5~5dBm (GPON), 0~4dBm (EPON) • Input Optical Power: -18~0dBm • Output Reflection Loss: >15dB ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~60°C • Operating Humidity: 10~90% Non-Condensing • Storage Humidity: 5~90% Non-Condensing
