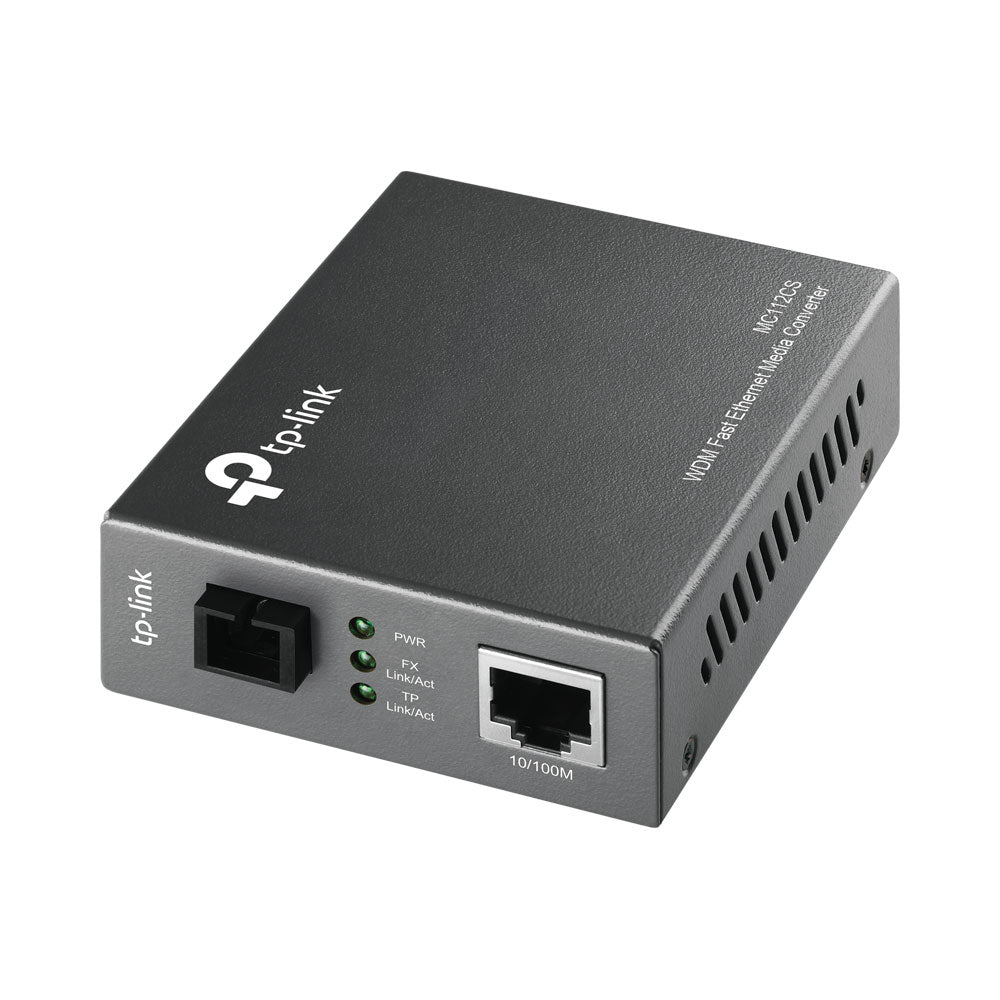

TP-LINK 10/100MBPS WDM MEDIA CONVERTER

FEATURES • Fast Ethernet Media Conversion - Converts 10/100Mbps Ethernet to single-mode fibre for extended network connectivity • WDM Technology - Transmits and receives data over a single fibre strand to simplify fibre infrastructure • Long-Range Fibre Transmission - Supports fibre distances up to 20km • Auto-Negotiation Support - Automatically detects optimal speed and duplex settings • Reliable Data Transmission - IEEE 802.3x flow control ensures stable and efficient network performance • Plug-and-Play - Simple installation with no configuration required SPECIFICATIONS STANDARDS AND PROTOCOLS • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x BASIC FUNCTION • Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode • Full Duplex Flow Control (IEEE 802.3x) • Half Duplex Flow Control (Back Pressure) • WDM Transmission on a Single Fibre • Extends Fibre Distance up to 20km PORTS • 1× 100M SC/PC Port • 1× 10/100M RJ45 Port (Auto MDI/MDIX) WAVE LENGTH • TX: 1310nm • RX: 1550nm NETWORK MEDIA 10BASE-T • UTP CAT3, 4, 5 Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) NETWORK MEDIA 100BASE-TX • UTP CAT5, 5e Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) NETWORK MEDIA 100BASE-FX • Single-Mode Fibre LED INDICATORS • PWR • Link/Act DIMENSIONS (W × D × H) • 94.5 × 73 × 27mm POWER SUPPLY • External Power Supply MAX. POWER CONSUMPTION • 2.4W SAFETY AND EMISSION • FCC • CE • RoHS
