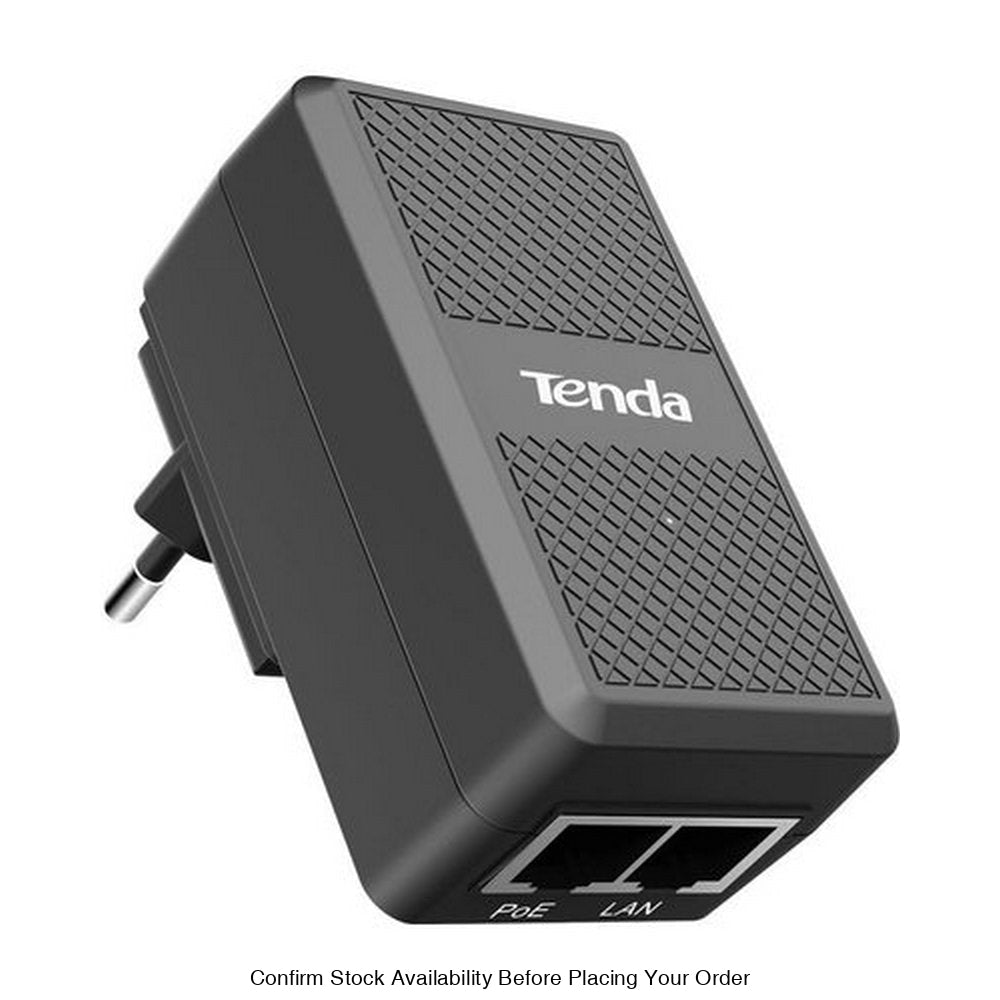

PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af`s PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.
Network standards IEEE802.3a1a2IEEE802.3u
LED Indicator Link/Act , PoE Status
Interfaces 1x10/100 Base-TX Ethernet ports(Data/PoE)
1x10/100 Base-TX Ethernet ports(Data)
Transmission media Recommended: CAT5/5e UTP or better
Dimension 84.5mmx44mmx29.8 mm
Level of protection ESD:
Air discharge: b110kV Contact discharge:b18kV
Forwarding mode Store-and-forward
Transmission Rate 100Mbps
PoE budget Single port: AF: 15.4W
Whole device: 15W
Power consumption 15W
Input voltage 100a3ad240V AC 50/60Hz
48V/0.3A DCa3a8Power Adapter Outputa3a9
Mounting Desktop mounting: support
Environment Operating Temperature: 0 ~45
Storage Temperature: -40 ~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification FCCa1a2CEa1a2RoHS
What's in the box
1 x PoE Injector
1 x Power Cord
1 x User Guide
