Power and connect your network devices effortlessly with the Tenda TEF1105P-4-63W. This unmanaged fast Ethernet switch provides four PoE+ ports and one data-only port, delivering up to 30 W per PoE port and a total PoE power budget of 58 W. Its built-in Extend Mode boosts data and power transmission up to 250 m at 10 Mbps-ideal for IP cameras and remote installations. Designed for reliability, the fanless metal housing and 6 kV surge protection ensure stable, quiet operation in any setup.
Key Features:
- 5 × 10/100 Mbps RJ45 ports: ports 1-4 support IEEE 802.3af/at PoE+, port 5 is data-only

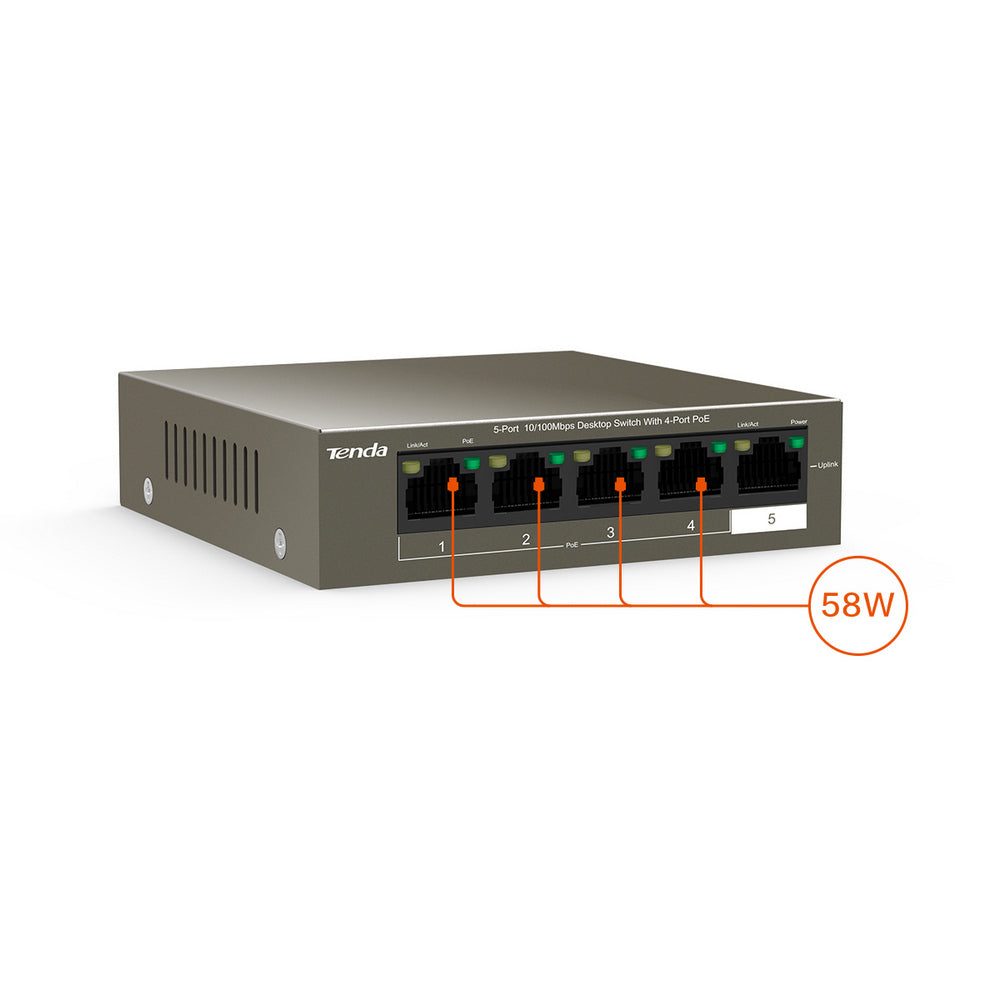

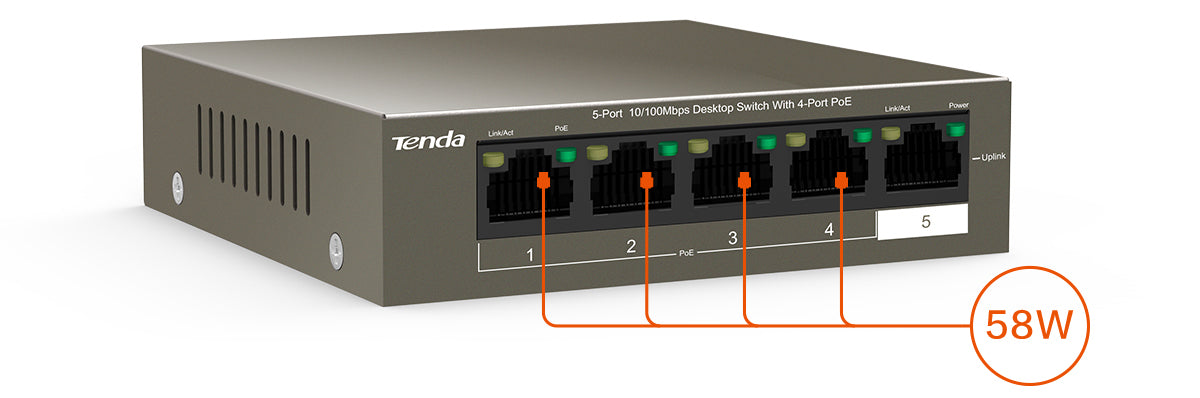

- Delivers up to 30 W per PoE port; total PoE power budget of 58 W
- Extend Mode allows data and power to reach up to 250 m at 10 Mbps
- 6 kV surge protection on ports and power input
- Silent fanless design in compact all-metal housing with desktop or wall-mount options
Technical Specifications:
-
Ethernet Ports: 4 × PoE+ ports + 1 × data-only port (10/100 Mbps, Auto MDI/MDIX)
-
Switching Capacity: 1 Gbps total; ~0.74 Mpps forwarding rate; 1 K MAC address table
-
Extend Mode: 250 m max distance at 10 Mbps (power + data)
-
PoE Power Output: Max 30 W per port; 58 W total power budget
-
Power Input: 100-240 V AC input; 51 V 1.25 A power adapter
-
Surge Protection: 6 kV port and power input protection
-
ESD Protection: 10 kV (air discharge), 8 kV (contact)
-
Build: Fanless, metal chassis with desktop or wall-mount options
-
Dimensions: 100 × 100 × 26 mm
-
Certifications: CE, FCC, RoHS
-
Operating Conditions: 0-45 C; 10-90 % RH non-condensing
What's in the box
1 x TEF1105P-4-63W
1 x User manual
1 x Power cable
