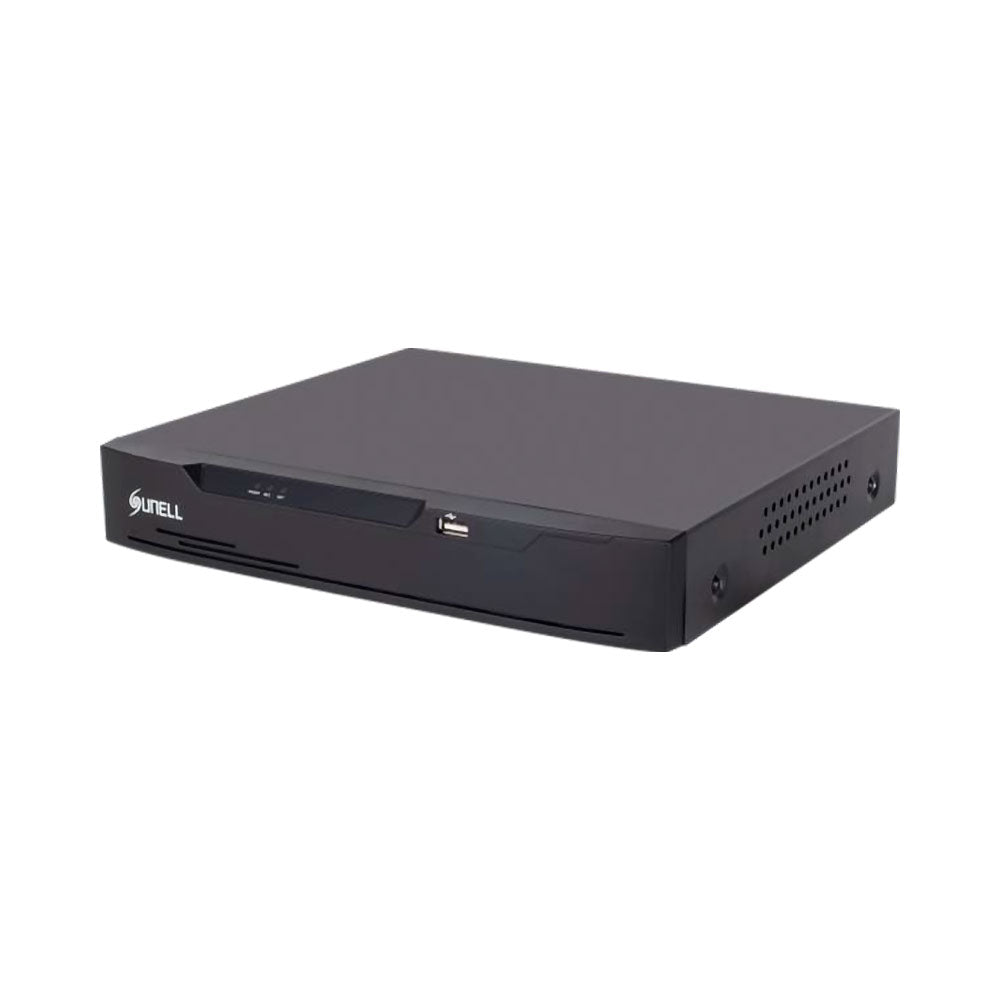

SUNELL HYBRID DVR 4CH, 1 BAY, 1X LAN, H265

FEATURES • Supports AHD/TVI/CVI/CVBS/IP video inputs • VGA, HDMI video output up to 4K • Smart search / playback • Response Time ≤0.2s • Easy to use same Interface of GUI/WEB/Client • Support more than languages • Perfect protection circuit, unique triple watchdog function SPECIFICATIONS System • Main Processor: Embedded processor • Operating System: Embedded LINUX Video and Audio • Analogue Camera Input: 4ch BNC • AHD Camera: 5MP/4MP/3MP/1080p/720p  @25/30fps • TVI Camera: 5MP/4MP/3MP/1080p/720p  @25/30fps • CVI Camera: 5MP/4MP/3MP/1080p/720p  @25/30fps • CVBS Camera: PAL/NTSC • IP Camera Input: 4+2ch, each channel up to 1080p • Audio In/Out: 1ch input, 1ch output, RCA • Two-way Talk: Support Display • Interface: 1 HDMI, 1 VGA, 1 CVBS • Resolution: HDMI: 3840×2160, 1920×1080, 1440×900, 1280×1024 • VGA: 1920×1080, 1280×1024, 1280×720 • Multi-Screen Display: 1/4 Recording • Resolution: 5MP, 4MP, 1080p, 720p, D1, CIF • Record Rate: 5MP @6fps, 4MP @7fps, 1080p @15fps • Bit Rate: Main Stream: 128Kbps~6144Kbps • Sub Stream: 16Kbps~1024Kbps • Record Mode: Manual, Event, Timer • Record Interval: Post-record: 30 ~ 60 sec Video Detection and Alarm • Trigger Events: Recording, Buzzer, Push message, Popup Message • Video Detection: Motion Detection, Video Loss, Camera Tamper • Alarm in/out: N/A Playback and Backup • Playback: 4/1 • Search Mode: Time/Date, Alarm, Picture Grid, Event • Playback Function: Play, Pause, Stop, Next Frame, Fast play, Slow Play, Layout, Shuffle, Backup Selection, Digital Zoom • Backup Mode: USB HDD Network • Interface: 1 RJ-45 port (10/100Mbps) • Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP • Max. User  Acces:s: Access 4 Users • Smart Phone: iPhone, iPad, Android Storage • Internal HDD: 1 SATA Ports, up to 8TB for each HDD • eSATA: N/A Interface • USB Ports: 2× USB2.0 • RS232: N/A • RS485: N/A General • Power Supply: DC12V 2A • Power Consumption: Max. 5W (without  HDD) • Operating Temperature: -10 °C ~ 50 °C • Storage Conditions: Less than 90% RH • Certifications: CE/FCC • Dimensions (L × W × H): 255 × 244 × 44mm • Net Weight: 900g
