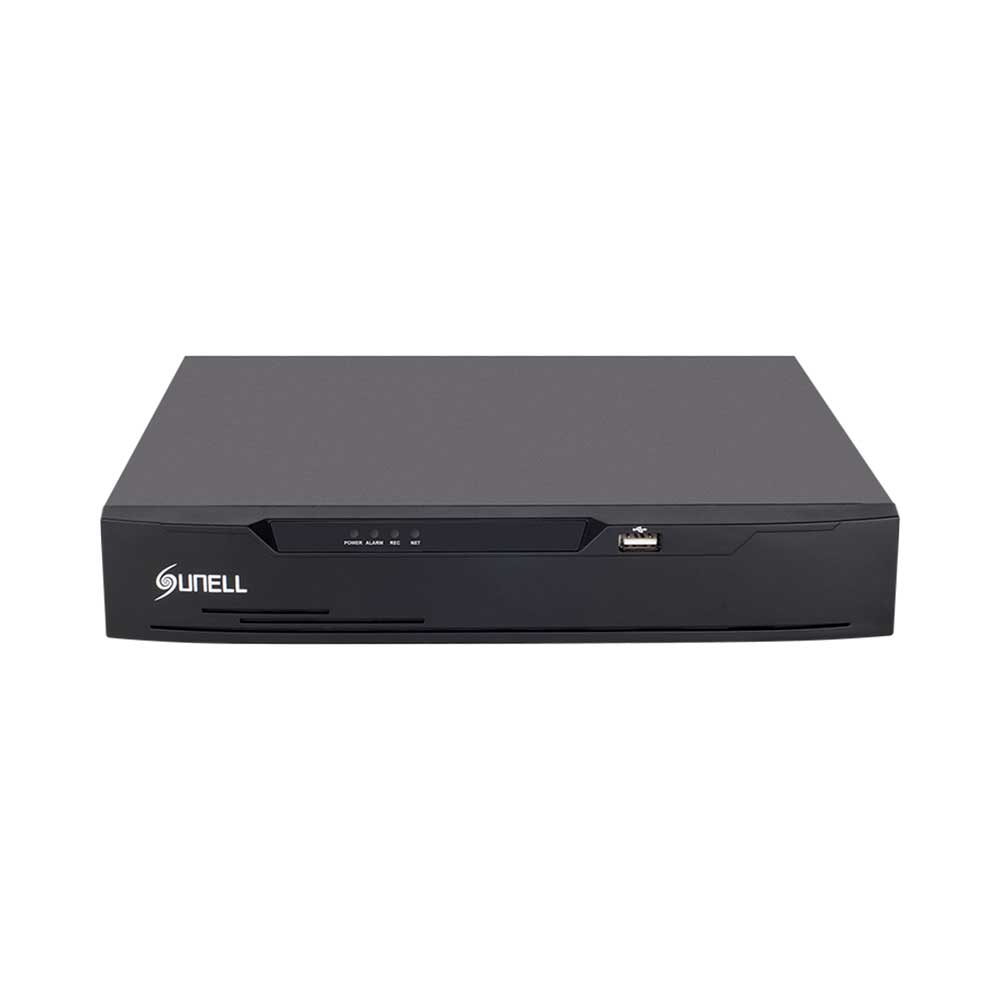

SUNELL HYBRID DVR 4CH, 1 BAY, 1X LAN

FEATURES • Supports AHD/TVI/CVI/CVBS/IP video inputs • Supports VGA, HD-OUT, CVBS output • Easy to use Same Interface of GUI/WEB/Client • Support various mobile monitoring:（IOS, Android) • Support more than languages • Perfect protection circuit, unique triple watchdog function • Supporting web, IMS, provide SDK development SPECIFICATIONS System • Main Processor: Embedded processor • Operating System: Embedded LINUX Video and Audio • Analog UE Camera Input: 4ch BNC • AHD Camera: 1080p / 720P / 960H @25/30fps • TVI Camera: 1080p / 720P / 960H @25/30fps • CVI Camera: 1080p / 720P / 960H @25/30fps • CVBS Camera: PAL/NTSC • IP Camera Input: 4ch, each channel up to 1080p • Audio In/Out: 4ch input, 1ch output, RCA Two-way Talk: N/A Display • Interface: 1ch HD-OUT, 1ch VGA, 1ch CVBS • Resolution: HD-OUT: 1920×1080, 1280×1024, 1440×900 • VGA: 1920×1080, 1280×1024, 1440×900 • Multi-screen Display: 1/4 Recording • Compression: H.264 High Profile • Resolution: 1080p/720P/960H • Record Rate: 1080p @12fps, 960H (1~25/30fps) • Bit Rate: 1~6144Kbps Per Channel • Record Mode: Manual, Event, Timer • Record Interval: Post-record: 5~60 sec Video Detection and Alarm • Trigger Events: Recording, Buzzer, Push message, Pop up message • Video Detection: Motion Detection, Video Loss, Camera Tamper • Alarm input: N/A Network • Interface: 1 RJ-45 port (10/100Mbps) • Network Function: HTTP, TCP/IP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, • Max. User  Access: Access 3 users • Smart Phone: iPhone, iPad, Android • Interoperability: ONVIF 2.6, SDK Playback and Backup • Playback: 4/1 • Search Mode: Time /Date, Alarm, Picture Grid, Event • Playback Function: Play, Pause, Stop, Next Frame, Fast play, Slow Play, Layout, Shuffle, Backup Selection, Digital Zoom • Backup Mode: USB HDD Storage • Internal HDD: 1 SATA Ports, up to 6TB for each HDD • Mounting Mode: Embedded eSATA: N/A Interface • USB Ports: 2× USB2.0 • RS232:  N/A • RS485: 1 Port, for PTZ Control General • Power Supply: DC12V 2A • Power Consumption: Max 5W (without  HDD) • Operating Temperature: -10 °C ~ 50°C • Strorage Conditions: Less than 90% RH • Certifications: CE/FCC • Dimensions (L × W × H): 255 × 244 × 44mm • Net Weight: 900g
