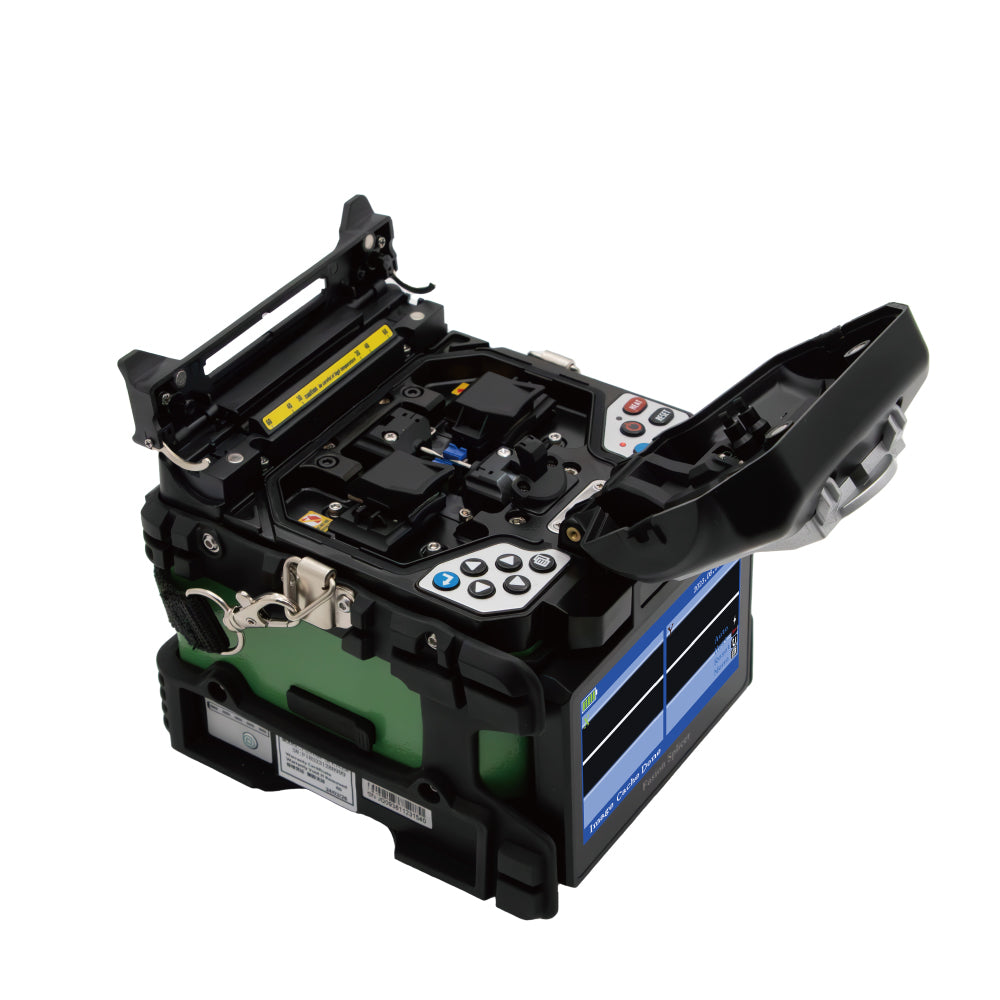

PROSKIT TE-6801F-W FIBRE OPTIC FUSION SPLICING MACHINE KIT

FEATURES • 6-Motor Core Alignment - Precise core-to-core splicing for low-loss performance • Fast Splicing and Heating - 9s splice time and 30s heat cycle for efficient workflows • 4.3" High-Resolution LCD - Adjustable display for clear viewing in any position • 520× Magnification - Accurate X/Y axis alignment for reliable results • High-Capacity Battery - up to 220× splice and heat cycles per charge • Rugged Field Design - Wind and dust-resistant for dependable outdoor use SPECIFICATIONS • Applicable Fibre: SM, MM, NZDS, EDF • Average Splice Loss: 0.015dB (SM), 0.01dB (MM), 0.04dB (NZDS), 0.04dB (EDF) • Splice Time: 9s (SM Fibre) • Cleave Length: 10~16mm • Fibre Support: Cladding 80~150µm, Coating 100~1000µm • Return Loss: ≥60dB • Magnification: 520× (X or Y), 260× (X and Y) • Working Motor: 6-Motors • Fibre Alignment: Core-to-Core • Fibre Recognition: G651 / G652 (654) / G655 • Tension Test: 2.0N (200gf) • Splice Programs: 50 Groups • Electrode Life: 5,000 Times • Protection Sleeve Length: 20~60mm • Storage (Results): 6,000 Groups • Storage (Images): 100 Groups • Display: 4.3" High-Resolution Colour LCD • Interface: Micro USB • Working Light: 1× LED • Power Indication: 5× LED • Operating Conditions: -10~50°C, 0~95% RH, up to 5,000m • Power Supply: Lithium Battery 10.95V 5.2A • Adapter: Input AC 100~240V, Output DC15V 5A • Dimensions (W × D × H): 149 × 135 × 135mm • Weight: 1.75kg (With Battery), 1.4kg (Without Battery)
