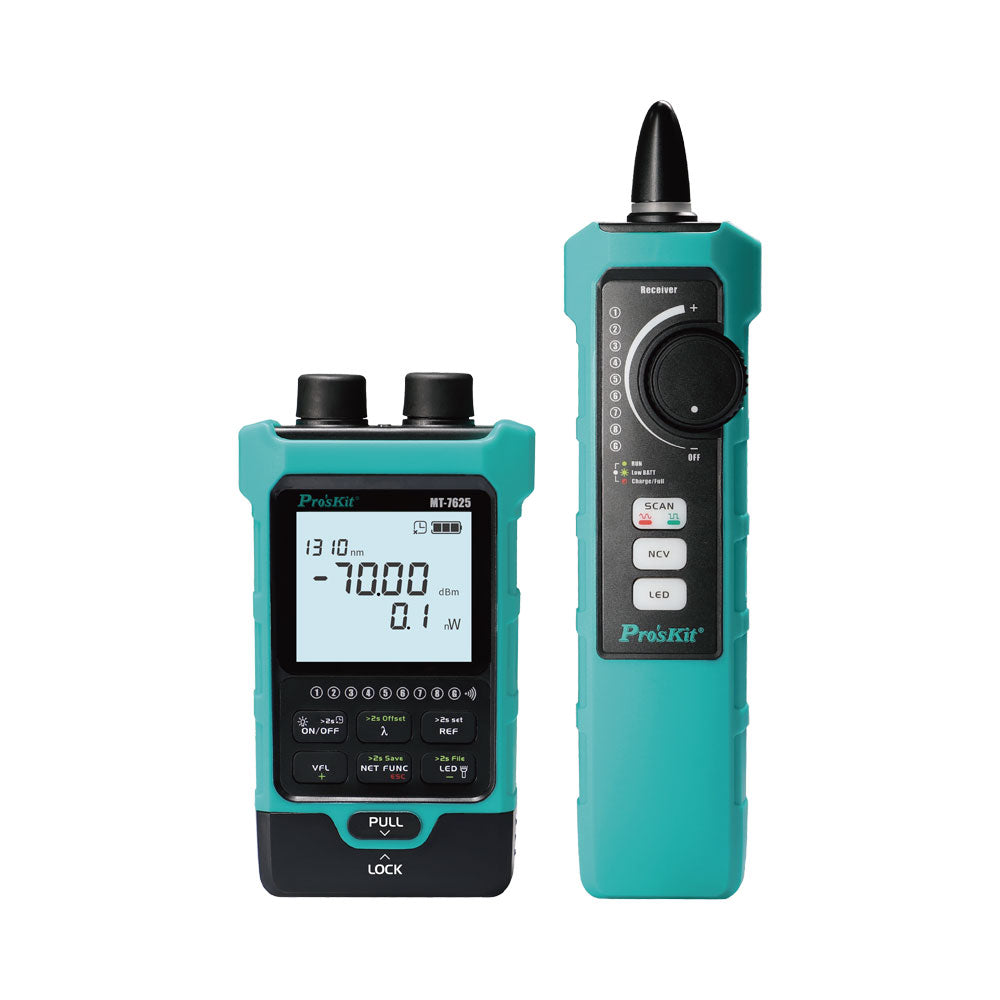

PROSKIT OPTICAL POWER METER & TONE PROBE KITS

FEATURES • All-in-1 OPM and Tone Probe - Combines optical power measurement and cable tracing in one tool • 10× Wavelength Power Meter - Supports multi-wavelength fibre testing for accurate diagnostics • Visual Fault Locator - Quickly identifies fibre breaks bends and connection faults • Dual-Mode Cable Mapping - Supports analogue and digital cable mapping modes • Single-Way Plug Crimping Quality Test - Verifies correct termination and crimp quality • 1-on-2 LAN Cable Testing - Tests one LAN port against two endpoints for faster verification • Dual LED Light - Integrated illumination for low-light working environments • Non-Contact Voltage Detection (NCV) - Improves safety during cable testing • Data Upload Function - Enables transfer of test results for analysis and reporting • Rechargeable Li-ion Battery with USB Type-C Charging - Provides reliable portable power for field use SPECIFICATIONS Optical Power Meter SPECIFICATIONS and Functions • Detector Type: InGaAs • Wavelength Range: 700~1700nm • OPM Connector: 2.5mm Universal Connector • Measurement Wavelengths: 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm • Measurement Range: -70~+10dBm • Accuracy* (1550nm and 1310nm): ±0.2dB • Accuracy* (850nm, 980nm, 1300nm, 1490nm, 1625nm, 1650nm): ±0.3dB • Accuracy* (1270nm and 1577nm): ±1dB • Resolution: 0.01dB • Measurement Units: dB, dBm, mW, uW, nW • Modulation Detection: 270Hz, 330Hz, 1kHz, 2kHz (only for ProsKit light source products) • Data Storage: 500× Groups • Wavelength Memory: Yes • User Self-Calibration: Yes • REF Function: Yes • Back Light: Yes Visual Fault Locator Functions • Output Power: 15mW • Testing Distance**: 10~12km @SM • VFL Connector: 2.5mm Universal Connector • VFL Wavelength: 650 ±20nm • Operation Mode: CW and 2Hz Glint Network Line Sequence Function • Applicable Network: UTP and STP Network Cable • Cable Interface: RJ45 (8P8C) • Test Type: Network Cable Sequence • Testing Distance: 600m Audio Hunt Function • Hunting Mode: Analogue and Digital • Detection Frequency: 455kHz • Detection Distance: 600m Line Pressing Function • Crimp Detection: RJ45 8-Pin >10cm General Functions • Illumination: 1× LED • Auto Power-Off: Yes (after no operation for 10 minutes) • Battery Level Indicator: Yes • Charging Socket: USB Type-C • Charging Time: <3hours • Working Time: >30hours (OPM only) • Power Source: Li-ion 3.7V 450mAh • Operating Temperature: -10~50°C • Operating Humidity: <90% RH • Size: 114 × 65 × 29mm • Weight: 120g Receiver SPECIFICATIONS and Functions • Power Switch: Knob Operation • Function Selection: 3× Silicone Buttons • Response Frequency: 455kHz • Volume: ≥85dB • Receiver Signal: Analogue and Digital • Speaker Audio (Analogue): 633Hz, 833Hz • Speaker Audio (Digital): 833Hz, 1500Hz • Sensitivity Adjustment: Knob Control • Test Interface: 1× RJ45 • Line Sequence Indicator: 9× LEDs • Status Indicator: 3× LEDs Non-Contact Electricity Test Function • Non-Contact Voltage Detection: AC 90~1000V • Indicator Light: 1× LED Ring • Speaker Audio: 1500Hz LED Light Functions • Illumination: 1× LED • Headset Jack: Φ3.5mm • Charging Socket: USB Type-C • Power Source: Li-ion 3.7V 450mAh • Working Current: ≤250mA • Size: 180 × 45 × 26mm • Weight: 100g *At 23°C ±2°C, 40%~60%RH with Standard Testing Fibre. Accuracy Range: +3dBm~-60dBm, Other References Are As Follows: ±0.8dB: +3dBm~+6dBm, -60dBm~-65dBm @1550nm ±3.0dB: +6dBm~+10dBm, -65dBm~-70dBm @1550nm **Test Distance Will Be Influenced By Environmental Conditions and Visual Sensitivity.
