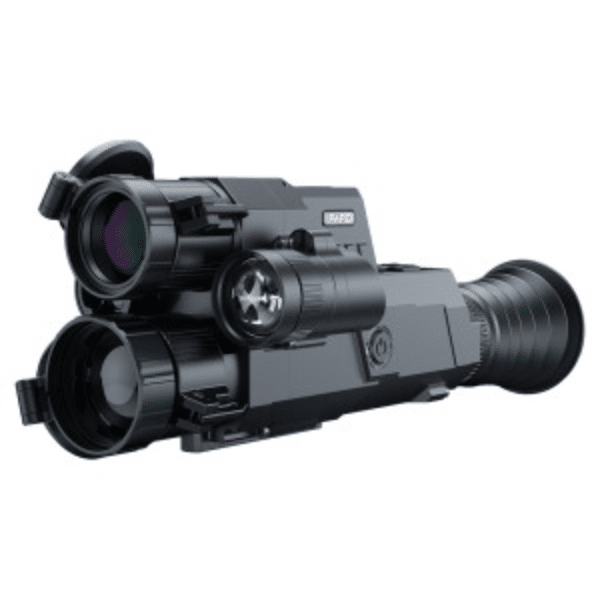

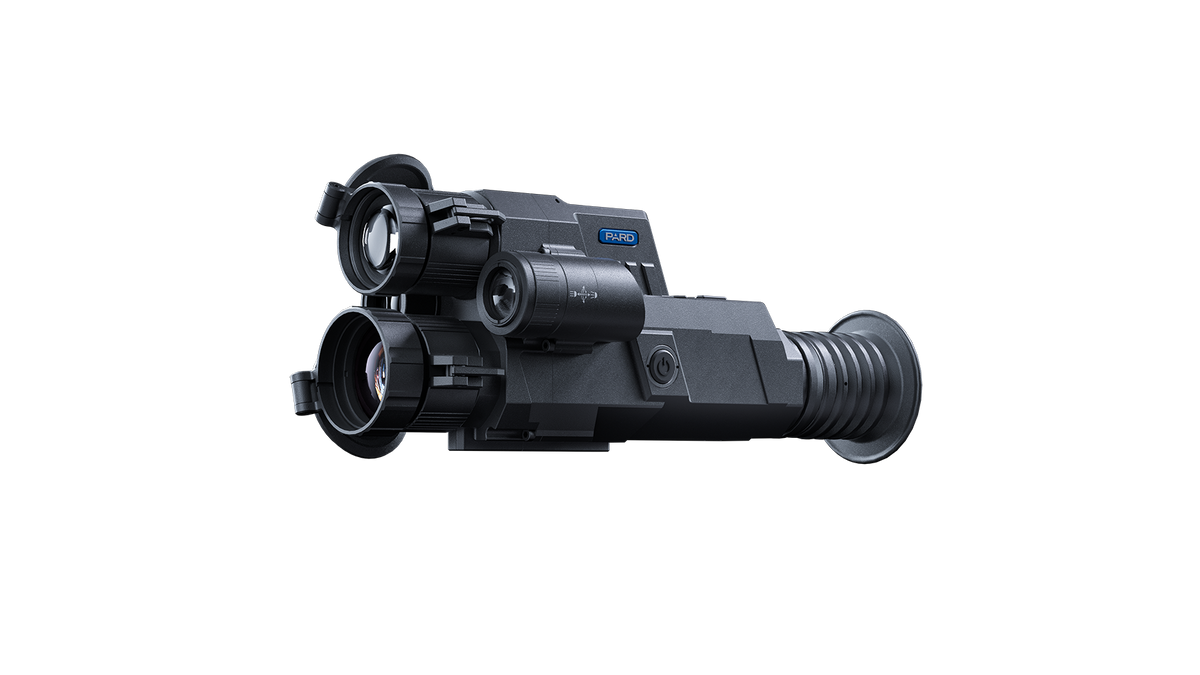

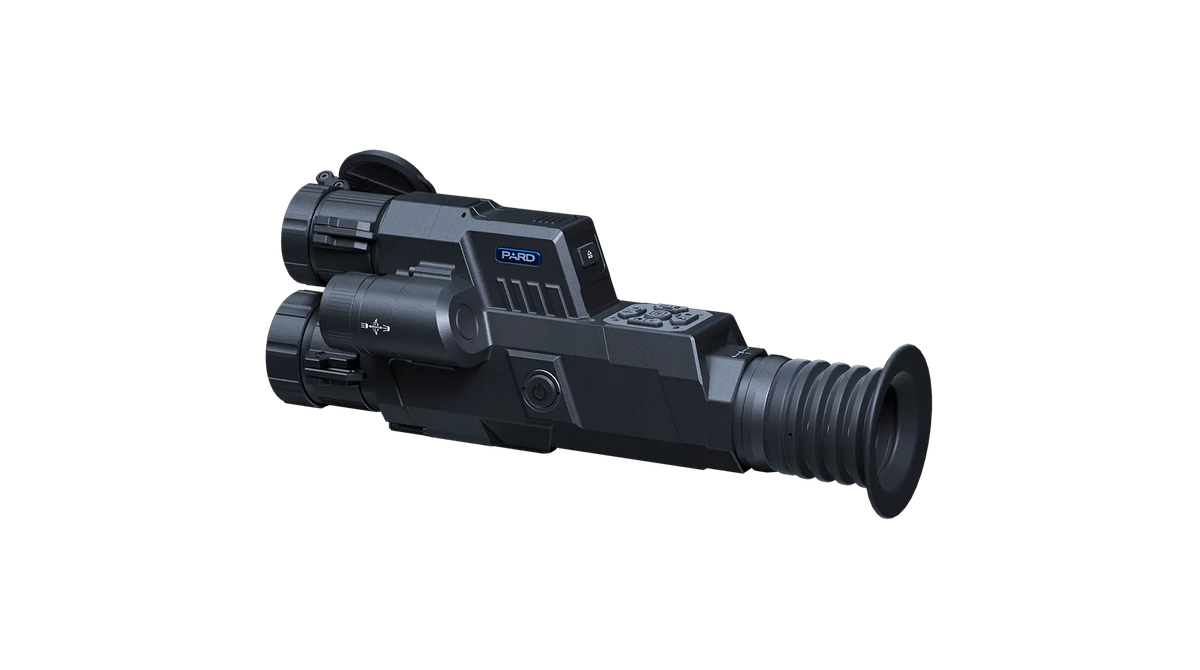

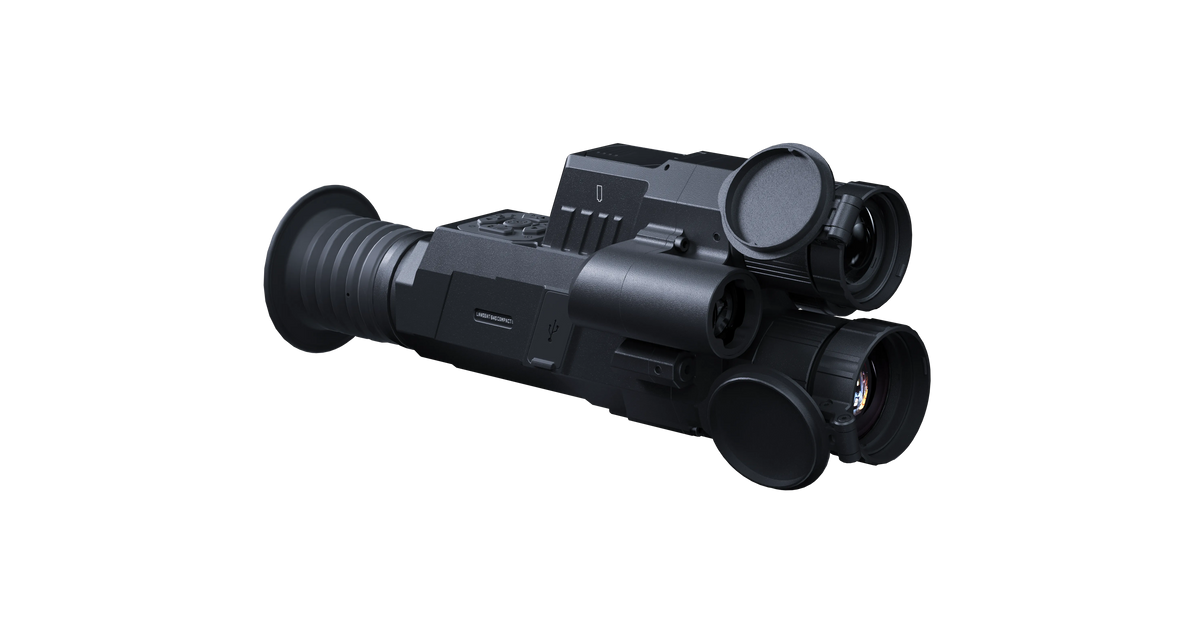

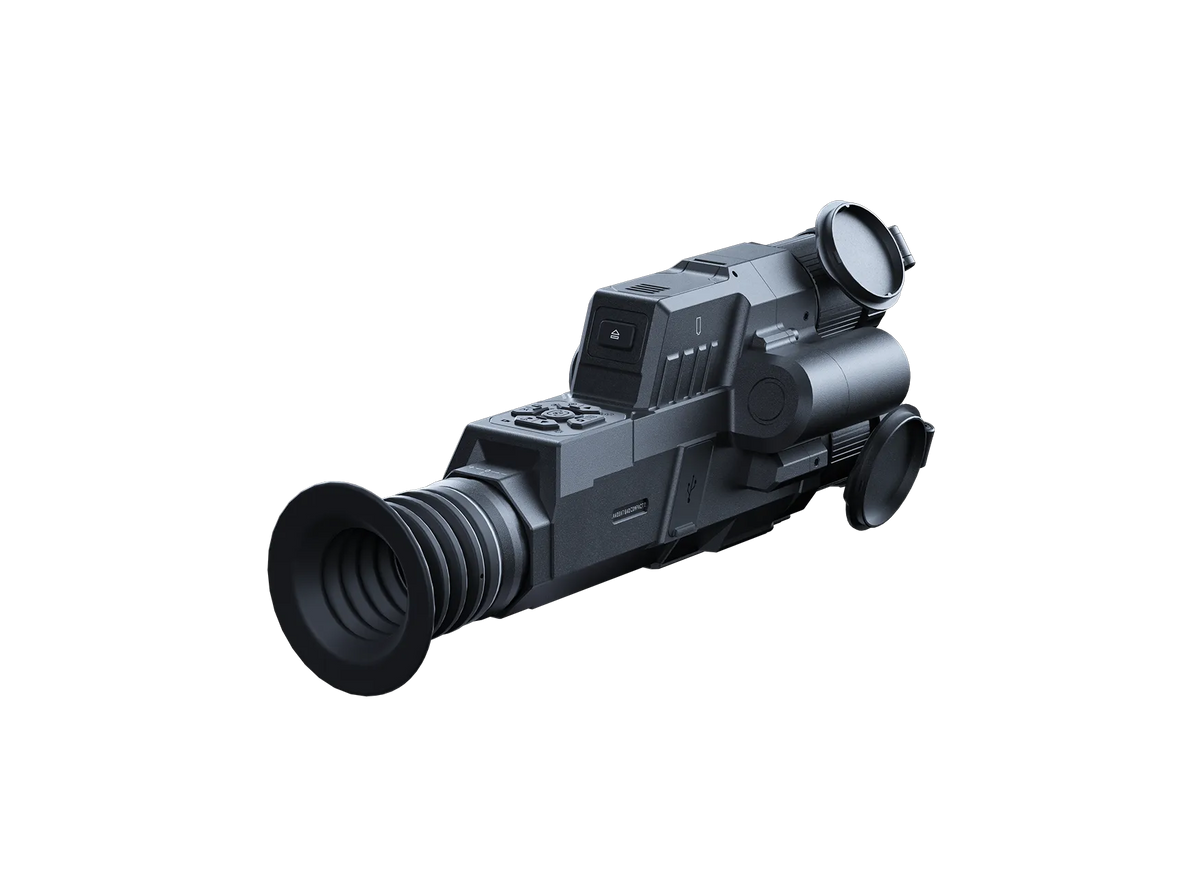

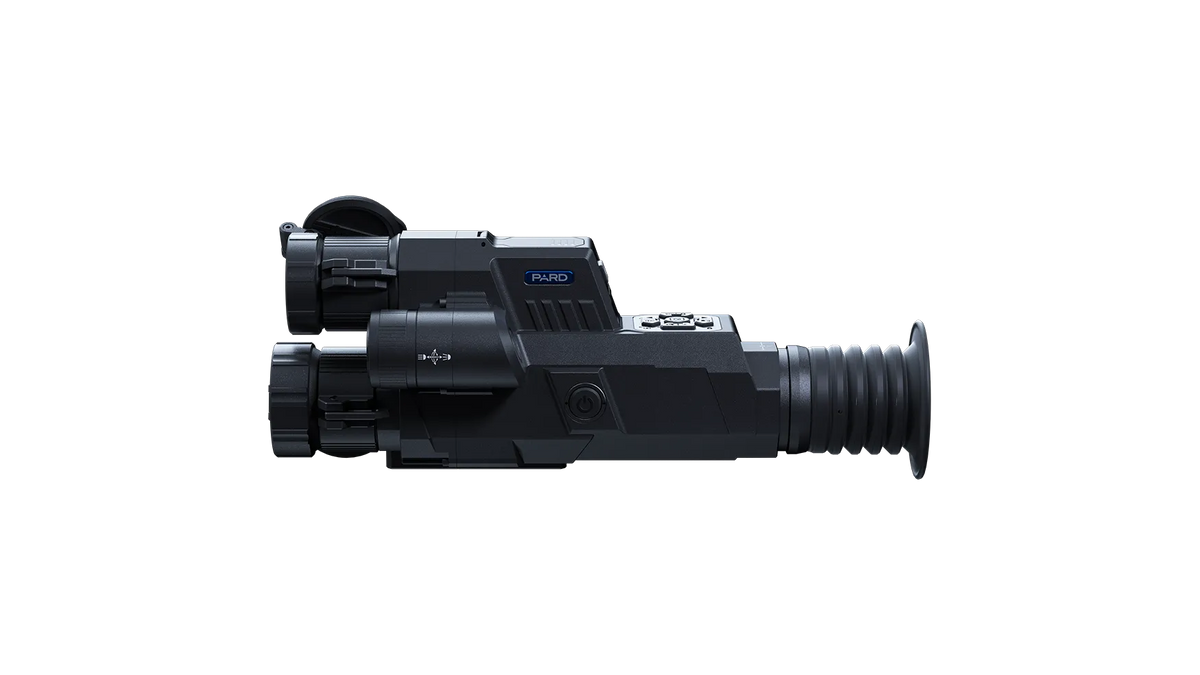

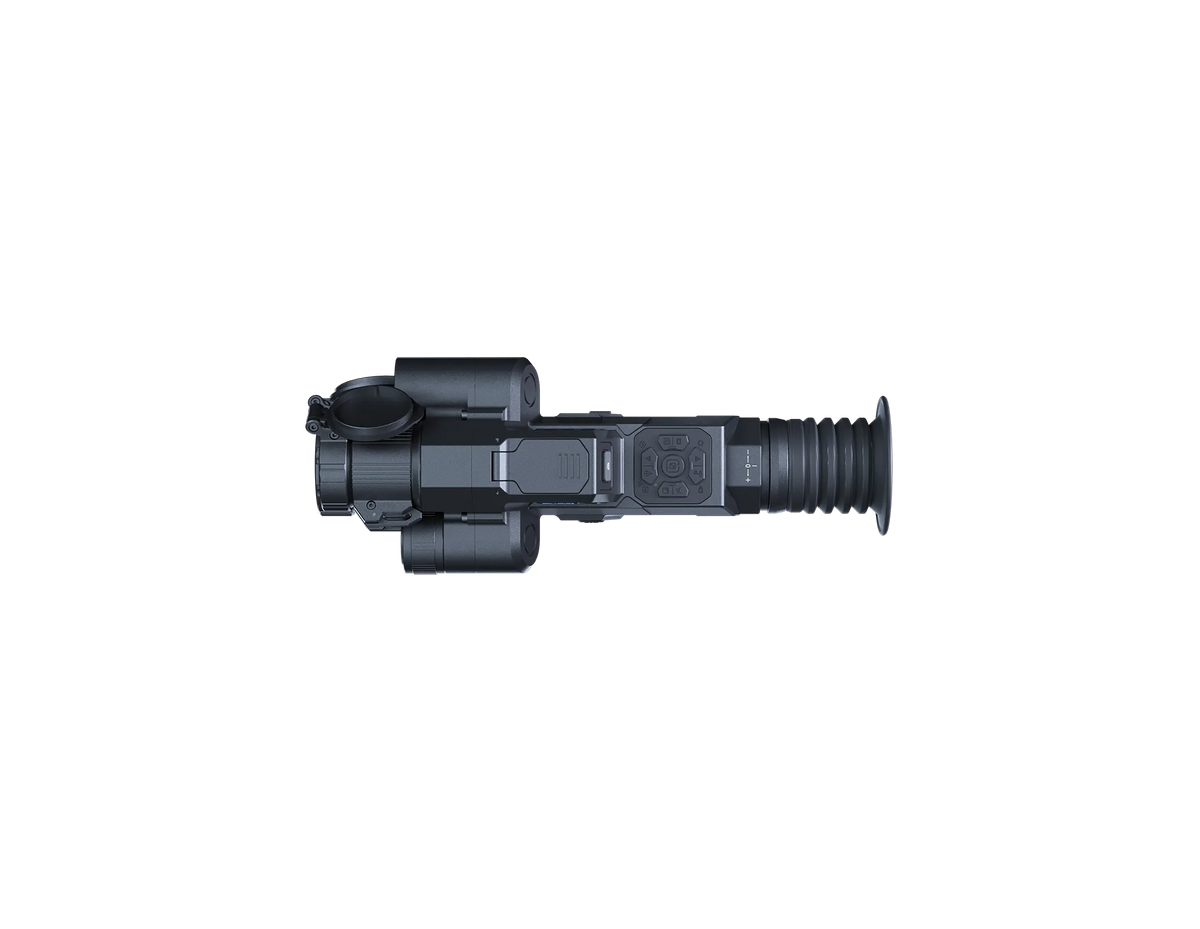

Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA6CQ-45/70LRF

The Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA6CQ-45/70LRF is an advanced multi-spectral riflescope designed for shooters who demand cutting-edge technology, exceptional detection capability, and reliable performance in all lighting conditions. By combining high-resolution thermal imaging with a powerful visible-light digital sensor, this scope allows users to seamlessly switch between viewing modes for improved target detection, identification, and engagement both day and night.

At the core of the Landsat Q is a 640 × 512 uncooled VOx thermal sensor with an ultra-sensitive ≤18 mK NETD, capable of detecting subtle heat signatures at distances of up to 1800–2100 meters. The scope is further enhanced by a 2688 × 1520 visible-light sensor, delivering sharp colour or black-and-white imagery even in extremely low light conditions. Combined with a high-resolution 1600 × 1200 OLED display, users benefit from crisp, detailed visuals and improved situational awareness in the field.

Engineered for precision shooting, the Landsat Q integrates a laser rangefinder capable of measuring distances up to 1000 meters, along with a built-in ballistic calculator, picture-in-picture functionality, and multiple scene and colour display modes. With rugged IP67-rated aluminium construction, recoil resistance up to 6000 J, and reliable operation in temperatures from −30°C to +55°C, the device is built to perform in demanding environments where reliability and performance are critical.

Specifications:

• Device Class: Multi-spectral scope
• Thermal Imaging Sensor
  • Sensor Type: Uncooled VOx (Vanadium Oxide)
  • Resolution: 640 × 512 pixels
  • Pixel Size: 12 × 12 µm
  • NETD (Thermal Sensitivity): ≤18 mK (0.018°C)
  • Frame Rate: 50 Hz
  • Detection Distance: 1800 m / 2100 m
  • Image Engine: PARD IREA
  • Lens (Focal Length): 35 mm / 45 mm
  • Optical Magnification: 2.1× / 2.7×
  • Digital Zoom: 2× / 4× / 6× / 8×
    • Field of View (Degrees):
      • Horizontal: 12.5° / 9.8°
      • Vertical: 10° / 7.8°
      • Diagonal: 16° / 12.5°
    • Field of View (at 100 m):
      • Horizontal: 21.9 m / 17.1 m
      • Vertical: 17.6 m / 13.7 m
  • Focus Range: 3 m – ∞
• Visible Light Sensor
  • Resolution: 2688 × 1520 pixels
  • Pixel Size: 2.9 µm
  • Sensitivity: 0.001 lux
  • Frame Rate: 60 Hz (Colour) / 30 Hz (Black & White)
  • Image Engine: PARD VLEA
  • Objective Lens: 70 mm
  • Optical Magnification: 6.9×
  • Digital Zoom: 2×
  • Field of View:
    • Horizontal: 3.8°
    • Vertical: 2.8°
    • Diagonal: 4.7°
  • Field of View (at 100 m):
    • Horizontal: 6.6 m
    • Vertical: 5.0 m
  • Focus Range: 3 m – ∞
• Display
  • Display Type: OLED
  • Resolution: 1600 × 1200 pixels
  • Line of Sight Styles: 6
  • Reticle Colours: 4 (Red, White, Yellow, Green)
  • Scene Modes: City / Rain / Forest
  • Picture Modes: WT-HOT / BK-HOT / RD-HOT / IN-HOT / SKY / Colour / Mono
  • Eye Relief: 50 mm
  • Diopter Adjustment: −5 to +5 D
• Photo & Video
  • Photo Resolution: TBD
  • Photo Format: .JPG
  • Video Resolution: TBD
  • Video Format: .MP4
  • Storage: Micro SD card (Max. 128 GB)
• Main Functions
  • Laser Rangefinder Range: 1200 yd / 1000 m
  • Ballistic Calculator: Yes
  • Picture-in-Picture (PIP): Yes
  • Gyroscope: Yes
  • Loop Recording: Yes
  • Feedback-Activated Recording: Yes
  • E-Compass: Yes
  • Locking Mechanism: Mechanical
  • Firmware Updates: Supported
• IR Illuminator
  • IR Power: 5 W
  • IR Illumination Levels: 3
  • IR Distance: Up to 350 m
  • IR Wavelength: 850 nm or 940 nm (ordered separately)
• Interfaces & Connectivity
  • USB Type-C: Yes
  • HDMI Output: Yes
  • Wi-Fi: Yes
  • Supported App: PardVision2
• Power Supply

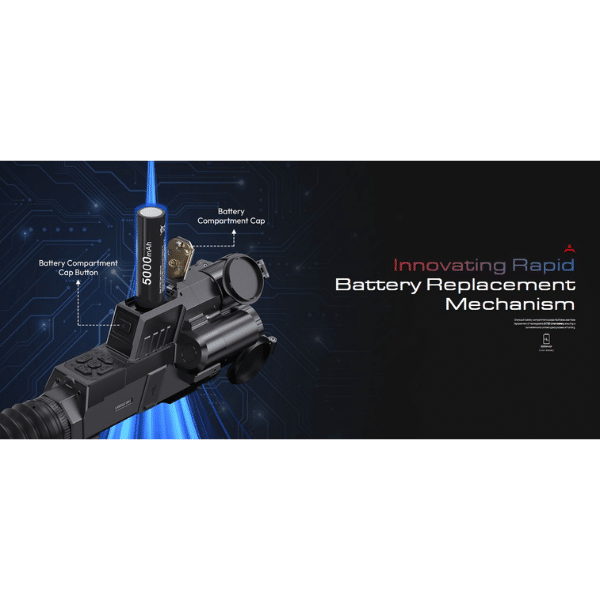

  • Battery Type: Li-ion 21700 ×1
  • Output Voltage: 3.7 V
  • Operating Time: Up to 6 hours
  • External Power Supply: Type-C
• Environmental Characteristics
  • Protection Rating: IP67 (Waterproof & Dustproof)
  • Operating Temperature: −30°C to +55°C (−22°F to +131°F)
  • Recoil Resistance: Up to 6000 J
• Materials
  • Housing: Aluminium Alloy
  • Objective Lens Material: Glass
