Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA4CQ-35/70LRF

Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA4CQ-35/70LRF – The revolutionary PARD Landsat multi-spectral riflescope integrates three image modes – thermal, night, and day vision – in a single scope, with the option of a picture-in-picture mode that combines night vision and thermal imaging into a single image.

The PARD Landsat Compact Q 480 is equipped with a 480×360 12um thermal sensor for greater magnification and observation distance, and a 2560×1400 CMOS night vision sensor. The Landsat is IP67 waterproof.

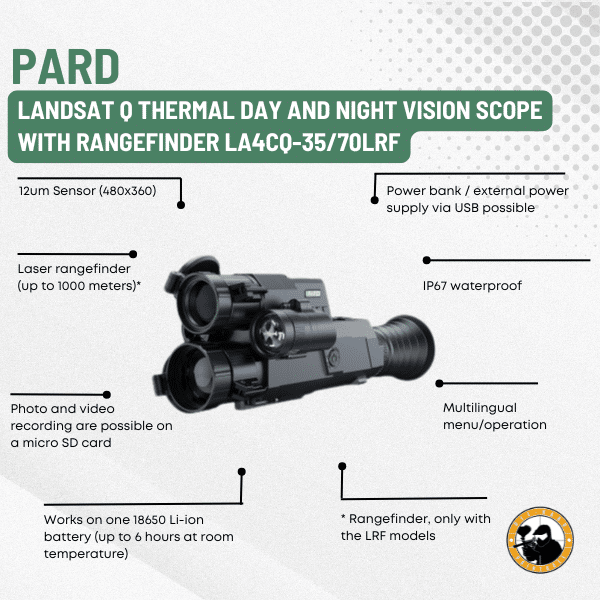

Features:

• 12 µm Sensor (480×360)
• Laser rangefinder (up to 1000 meters)*
• Photo and video recording are possible on a micro SD card

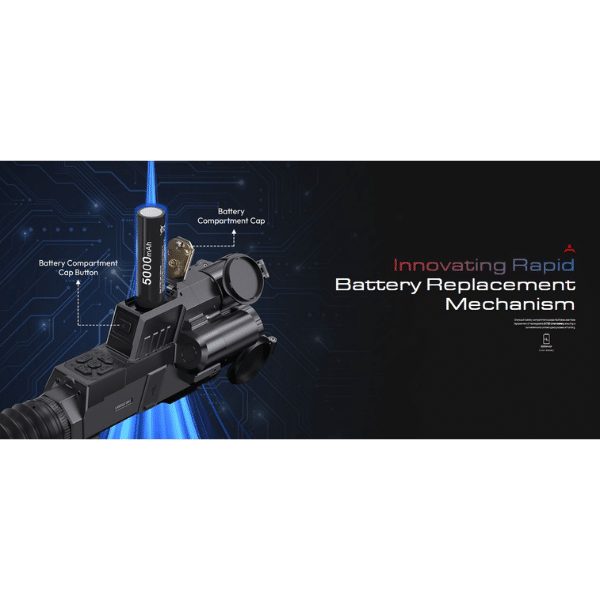

• Works on one 18650 Li-ion battery (up to 6 hours at room temperature)
• Power bank / external power supply via USB is possible
• IP67 waterproof
• Multilingual menu/operation
• * Rangefinder, only with the LRF models

Specifications of the Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA4CQ-35/70LRF:

• Thermal Sensor
  • Type Uncooled Vox (vanadium oxide)
  • Resolution(pixel) 480*360
  • Pixel Size(µm) 12*12
  • NETD ≤18mK（0.02℃）
  • Frame rate (Hz) 50
  • Detection Distance(m) 2100
  • Image Engine PARD IREA
  • Objective lens (mm) 35
  • Optical Magnification(x) 2.5
  • Digital Zoom(x) 2/4/6/8
  • Field of View (Horizontal) 7.1°
  • Field of View (Vertical) 7.1°
  • Field of View (Diagonal) 10.0°
  • Focus range 3m-∞
• Visible Light Sensor
  • Resolution(pixel) 2560*1440
  • Pixel Size(µm) 2.9
  • Sensitivity (lux) 0.001
  • Frame rate (Hz) Colour mode: 60 / Mono: 30
  • Image Engine PARD VLEA
  • Objective Lens (mm) 70
  • Optical Magnification(x) 6.1
  • Digital Zoom(x) 2
  • Field of View (Horizontal) 4.8°/3.4°
  • Field of View (Vertical) 4.8°/3.4°
  • Field of View (Diagonal) 6.8°/4.8°
  • Focus range 3m-∞
• Display
  • Type OLED
  • Resolution(pixel) 1600*1200
  • Reticle Style 6
  • Reticle Colour 4 (Red/White/Yellow/Green)
  • Scene Mode City/Rain/Forest
  • Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
  • Eye Relief(mm) 100
  • Diopter Adjustment(D) -5~+3
• Photo / Video
  • Photo resolution (pixel) 1536*1536
  • Photo Format .JPG
  • Video Resolution(pixel) Thermal: 768*768/Night Vision: 1440*1080
  • Video Format .mp4
  • Storage(GB) Micro SD card (Max. 128)
• Main function
  • LRF Detection Range (yd/m) 1200/1000
  • Ballistic Calculator Yes
  • PIP Yes
  • Gyroscope Yes
  • Loop Recording Yes
  • Recoil-activated recording Yes
  • E-compass Yes
  • Shutter Mechanical shutter
  • Microphone Yes
  • Firmware Upgrade Yes
• IR Illuminator
  • IR power(W) 5
  • IR illuminating level 3 Levels
  • IR distance(m) 350
  • IR Wavelength (nm) 850/940
• Interfaces
  • USB Type-C Yes
  • HDMI Output Yes
• Connections
  • WiFi Yes
  • Supported Apps PardVision2
• Power Supply
  • Battery Type Li-ion 21700*1
  • Output Voltage(V) 3.7
  • Operating Time(h) ≤6
  • External Power Supply Type Type-C
• Environmental characteristic
  • Degree of Protection IP67
  • Operating Temp(°C/°F) -30 ~ +55 / -22 ~ +131
  • Recoil Resistance(J) 6000
• Material
  • Housing Aluminum Alloy
  • Objective lens: All-glass multi-coated lens
• Measurement
  • Product dimension(L x W x H, mm) 265*92*90
  • NW/pcs(with IR illuminator&LRF&battery, g) 750

What’s in the box:

• 1x PARD Landsat Compact Q 480 35/70mm multi-spectral scope
• 1x rechargeable 18650 Li-ion battery
• 1x Battery charger
• 1x 32GB micro-SD card
• 1x USB cable
• 1x protective bag
• 1x Warranty card and manual
