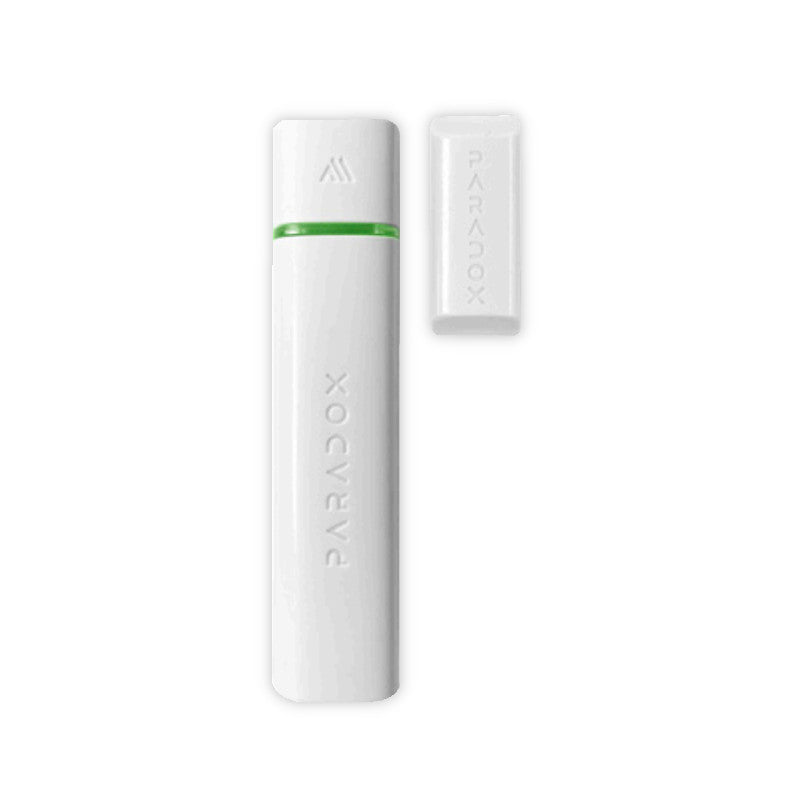

Paradox DCT2M Magnetic Contact

Paradox DCT2M is an ultra-compact magnetic door/window contact designed for discreet security. It features LED indicators for open, close, and on-line status, a built-in temperature sensor, and offers over 6 years of battery life with normal use.



-Magnetic door contact.

-Ultra-small size.

-LED indication for opening, closing, and on-line.

-Easy installation.

-Temperature sensor.

-6+ years of battery life with normal usage.

-Certifications: CE, EN 50131-2-6, EN 50131-6, EN 50131-5-3, FCC 15.247.



-Wireless Type: GFSK two-way with frequency and encryption hopping

-RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.

-RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.

-Close Distance of the Magnet: Less than 1 cm (0.4 in.)

-Open Distance of the Magnet: Above 3 cm (1.1 in.)

-Transmission Time: Less than 20 ms

-Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes

-Status Indicators: Battery, temperature, TX/RX values

-Battery: 1 x CR123 lithium, 6+ years of battery life with normal usage.

-Firmware Upgrade: Remotely over the air, via BlueEye

-Installation Environment: Indoor

-Operating Temperature: -30°C to +50°C (-22°F to 122°F)

-Auto Learn: Yes

-Colors: White

-Dimensions: 2W x 9H x 2D cm (¾W x 3.5H x ¾D in.)

-Weight Sensor 33 g / Magnet 12g

Not Compatible with the MG/SP and EVO Ranges.
