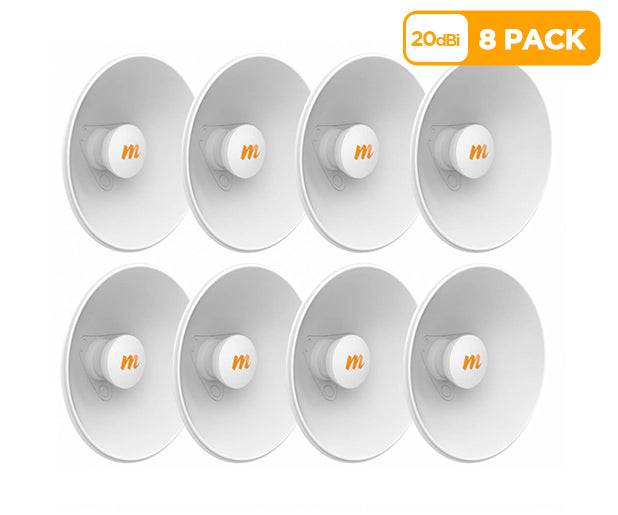

• Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm (8 Pack)
1 1

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm (8 Pack)

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm (8 Pack)

R 7,626.00 ZAR
R 7,626.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

MIM-N5-X20-8PACK
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm
8 Pack

The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi by using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

The N5-X series is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

Specifications:

  • Gain: 20dBi
  • Polarization: Dual-Slant 45º
  • Beamwidth, Symmetric (3dB): 12º
  • Front-to-Back (min): 35 dB
  • Front-to-Side Ratio: 37 dB
  • Weight: 0.77 kg (1.70 lbs)
  • Dimensions: Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
  • Mount: Mimosa N5-X twist-on
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 14.55 @160 km/h (32.07 lbs @ 100 mph)
