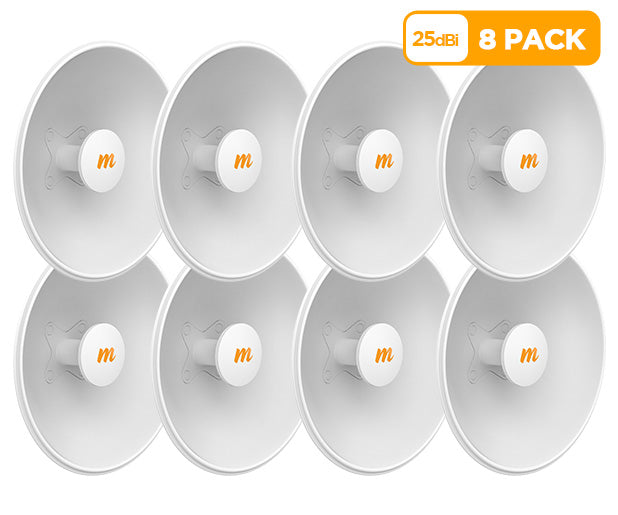

Mimosa N5-X25 twist-on 5GHz 25dBi antenna 430mm (8 Pack)

Mimosa N5-X25 twist-on 5GHz 25dBi antenna 430mm (8 Pack)

R 12,372.00 ZAR
R 12,372.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

MIM-N5-X25-8PACK
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Mimosa N5-X25 twist-on 5GHz 20dBi antenna 430mm
8 Pack

The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi by using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

The N5-X series is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

Specifications:

  • Gain: 25dBi
  • Polarization: Dual-Slant: 45º
  • Beamwidth, Symmetric (3 dB): 8º
  • Front-to-Back Ratio (min): 40dB
  • Front-to-Side Ratio (min): >45dB
  • Dimensions: Diameter: 429 mm (16.89”) Depth: 116 mm (4.57”)
  • Mount: Mimosa N5-X twist-on
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 36.26 kg @ 160 km/h (79.95 lbs @ 100 mph)
