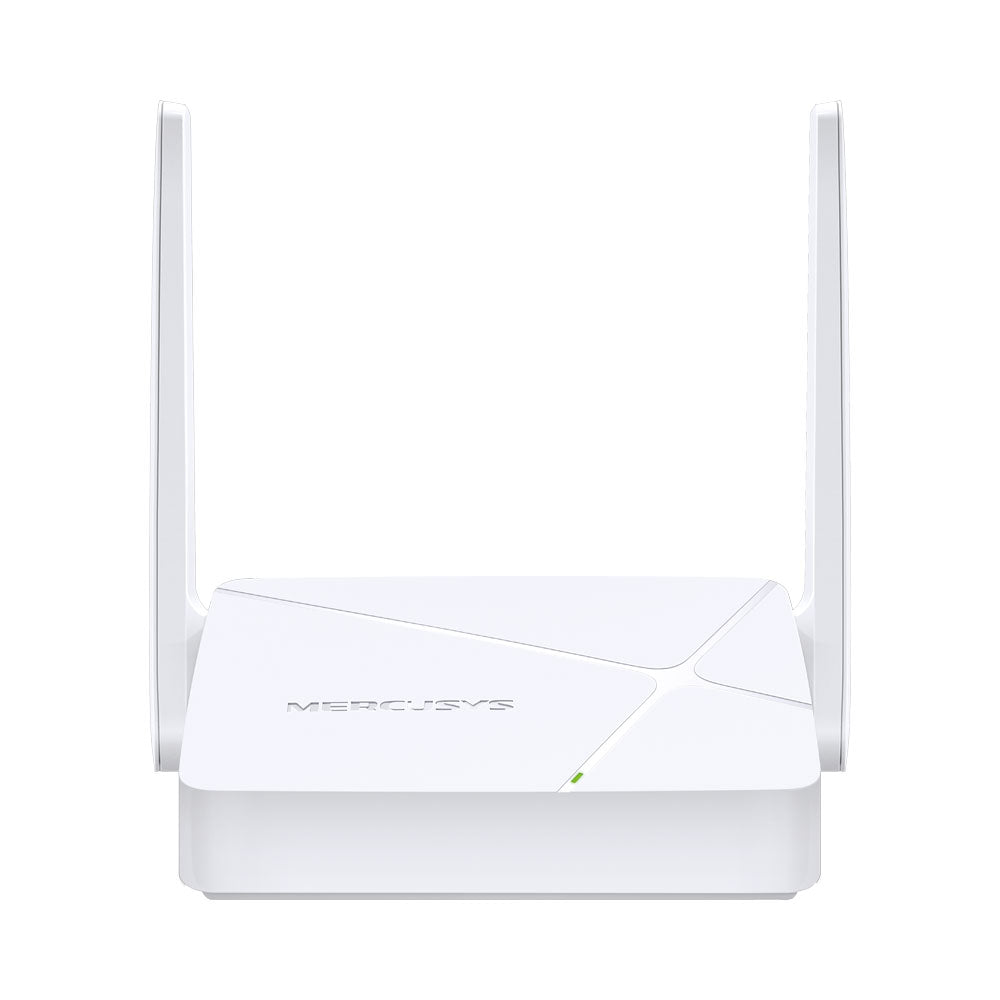

MERCUSYS AC750 WIRELESS DUAL BAND ROUTER

FEATURES • AC750 Dual-Band Wi-Fi - Delivers combined wireless speeds of up to 750Mbps (433Mbps on 5.0GHz and 300Mbps on 2.4GHz) for smooth streaming and everyday connectivity • Broader Wi-Fi Coverage - Two high-gain external antennas provide stable omnidirectional signals for stronger coverage throughout your home • Multi-Mode Operation - Supports Router Mode, Access Point Mode and Range Extender Mode to suit different networking scenarios • Easy Setup - Intuitive web interface guides you through the installation process in just a few minutes • Advanced Network Management - Features such as Parental Controls, QoS and Guest Network help manage and secure your home network • IPTV and IPv6 Support - Compatible with IPTV services and the latest IPv6 internet protocol for modern network environments SPECIFICATIONS WIRELESS • Signal Rate: - 300Mbps on 2.4GHz - 433Mbps on 5.0GHz • Compatible with IEEE 802.11ac/a/b/g/n standards RECEPTION SENSITIVITY 2.4GHz • 11g 6Mbps: -94dBm • 11g 54Mbps: -77dBm • 11n HT40 MCS7: -73dBm • 11n HT20 MCS7: -76dBm 5.0GHz • 11a 6Mbps: -93dBm • 11a 54Mbps: -75dBm • 11ac VHT20 MCS8: -70dBm • 11ac VHT40 MCS9: -65dBm • 11ac VHT80 MCS9: -62dBm TRANSMISSION POWER • 2.4GHz: <20dBm (EIRP) • 5.0GHz: <23dBm (EIRP) WIRELESS SECURITY • WPA-PSK • WPA2-PSK OPERATION MODES • Router Mode • Range Extender Mode • Access Point Mode WAN TYPE • Dynamic IP • Static IP • PPPoE • L2TP • PPTP MANAGEMENT • Access Control • Local Management • Remote Management DHCP • Server • DHCP Client List NAT FORWARDING • Port Forwarding • Port Triggering • UPnP • DMZ FIREWALL SECURITY • SPI Firewall • IP and MAC Address Binding GUEST NETWORK • 2.4GHz Guest Network • 5.0GHz Guest Network HARDWARE • Dimensions (W × D × H): 114 × 94 × 26mm • Interfaces: - 1× 10/100Mbps WAN Port - 2× 10/100Mbps LAN Ports • Button: Reset / WPS Button • Antenna Type: 2× 5dBi Fixed Omnidirectional Antennas ENVIRONMENT • Operating Temperature: 0~40°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
