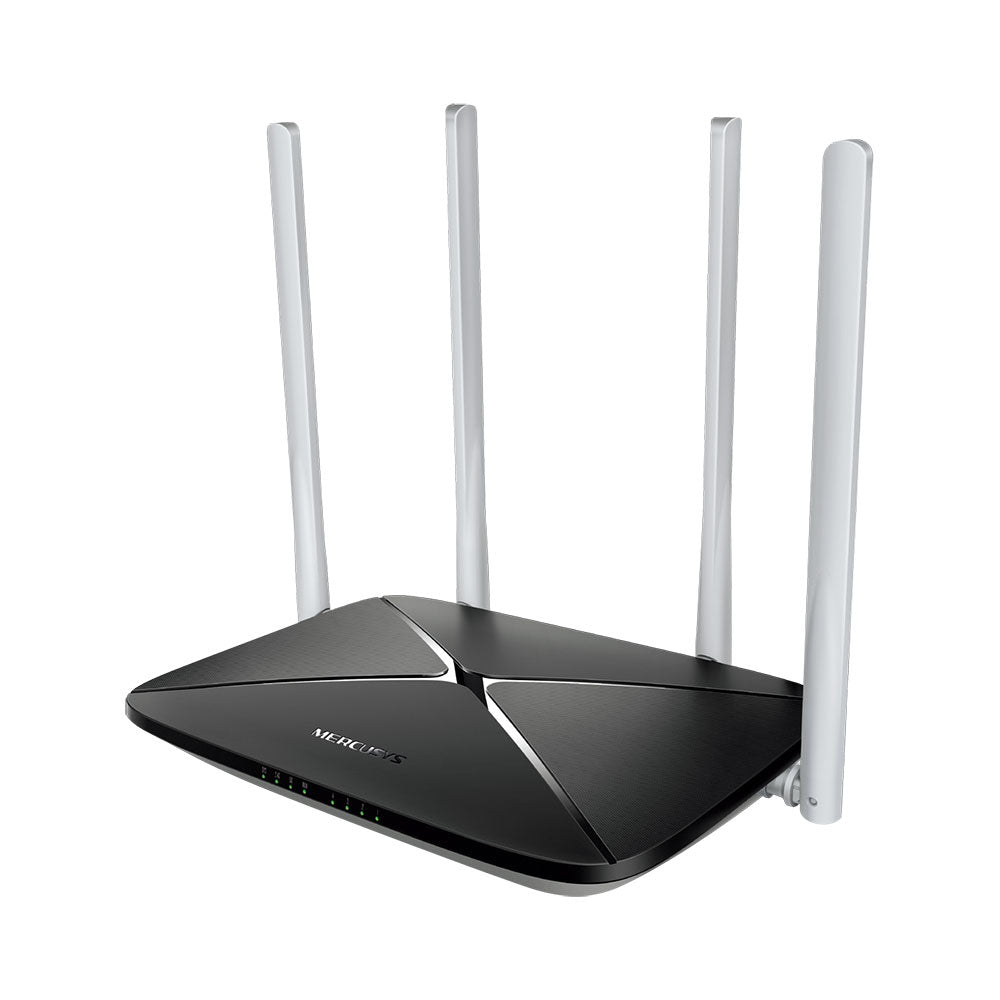

MERCUSYS AC1200 DUAL BAND WIRELESS ROUTER 10/100

FEATURES • Supports 802.11ac standard - the next generation of Wi-Fi • Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi • 4 External Antennas Greatly Expand Wireless Coverage • Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network • Easy installation - intuitive webpage guides you through the setup process in minutes SPECIFICATIONS • Dimensions: (W X D X H): 222mm x 140mm x 32mm • External Power Supply: 9VDC/0.85A • Antenna Type: 4 x 5dBi omni directional antennas • Signal Rate: - 11ac: Up to 867Mbps (Dynamic) - 11n: Up to 300Mbps (Dynamic) - 11g: Up to 54Mbps (Dynamic) - 11b: Up to 11Mbps (Dynamic) • Button: Reset button • Wireless Standards: IEEE 802.11ac、IEEE 802.11n、IEEE 802.11g、IEEE 802.11b、IEEE 802.3、IEEE 802.3u • Frequency: 2.390 ~ 2.4835GHz 5.150 ~ 5.825GHz • Reception Sensitivity: 11b CCK 1 -96, 11g OFDM 6 -93, 11n HT20 MCS7 -73, 11n HT40 MCS7 -70, 11a OFDM 6 -92, 11ac VHT20 MCS8 -68, 11ac VHT40 MCS9 -64, 11ac VHT80 MCS9 -60 • Interfaces: 4 10/100Mbps • LAN ports: 1 10/100Mbps WAN port • Certifications: CE, ROHS • Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) • Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) • Operating humidity: 10% ~ 90%, non-condensing • Storage humidity: 5% ~ 90%, non-condensing • Transmission Power: <20dBm • Wireless Security: WPA-PSK / WPA2-PSK • Wireless Functions: WDS bridge • WAN Type: Dynamic IP/Static IP/PPPoE • Management: Access control, Local management, Remote management • DHCPServer: Port Forwarding, Virtual server, UPnP, DMZ Dynamic DNSOray • Firewall Security: IP and MAC address binding • Protocols: IPv4 • Guest Network: 2.4GHz guest network
