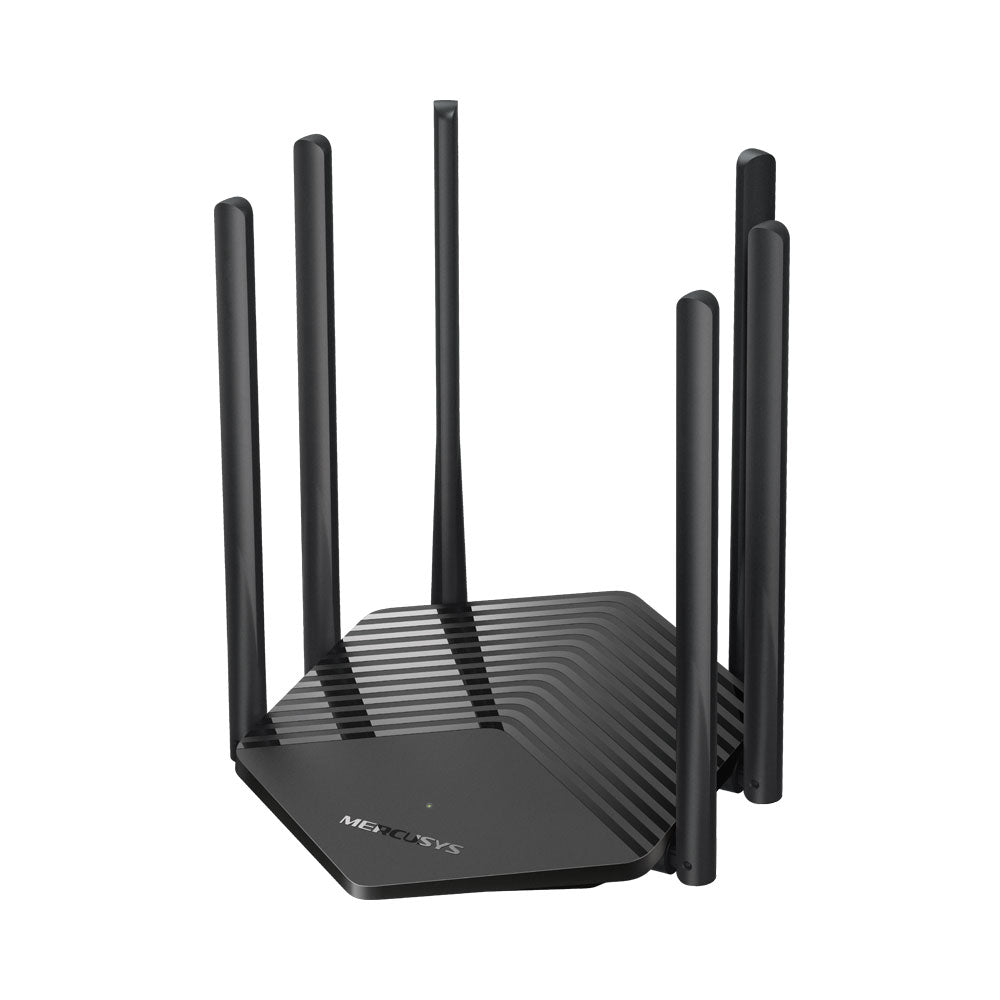

MERCUSYS AC1900 2-PORT WIRELESS DUAL BAND

FEATURES • Fast Wi-Fi - Simultaneous 600Mbps 2.4GHz and 1300Mbps 5GHz connection for 1.9Gbps of total available bandwidth • Maximum Range - Six high gain antennas ensure widespread Wi-Fi coverage and a stable connection • Easy Installation - Intuitive webpage guides you through the setup process in minutes • Gigabit Ports - One Gigabit WAN port and two Gigabit LAN ports provide up to 10x faster speeds than standard Ethernet connections SPECIFICATIONS • Ports: 1 Gigabit WAN Port, 2 Gigabit LAN Ports • Button: WPS/Reset Button • External Power Supply: 12V/1A • Dimensions: (W x D x H) 175.6 x 157.2 x 45 mm • Antennas: 6 Fixed Omni-Directional Antennas • Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz • Frequency: 2.4 - 2.5GHz, 5.15 - 5.25GHz • Signal Rate:600Mbps at 2.4GHz, 1300Mbps at 5GHz • Transmit Power: CE:<20dBm (2.4GHz), <23dBm (5.15 - 5.25GHz), FCC:<30dBm(2.4 GHz & 5GHz) RECEPTION SENSITIVITY • 5GHz: - 11a 6Mbps: -98dBm, 11a 54M: -78dBm - 11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm - 11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm - 11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm • 2.4GHz: - 11g 6Mbps: -97dBm, 11a 54M: -77dBm - 11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm - 11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm - Wireless Function: Enable/Disable Wireless Radio, Wireless Statistics - Wireless Security: WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
