Leupold VX-FREEDOM 4-12X40 CDS 1-INCH DUPLEX
The VX®-Freedom® 4-12x40mm delivers legendary Leupold® performance and dependability in a versatile magnification range that’s ideal for mid to longer-range shots. It’s also equipped with the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips. This system is easy to install and even easier to use.
Built around Leupold’s Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.
Duplex®
- Invented in 1962 by Leupold®
- Defined by heavy posts
- Stands out against cover in low light
- Quick target acquisition with thin lines at the center
- Most popular reticle in the world
- Rear (second) focal plane
Specifications
| BDC Dial Included | No |
|---|---|
| Custom Dial System (CDS) | Yes |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | CDS |
| Electronic Reticle Level | No |
| Illuminated Reticle | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | No |
| Reticle | Duplex |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Precision Side Focus | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 13.1 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 80 |
| Elevation Adjustment Range (MIL) | 23 |
| Elevation Adjustment Range (cm @ 100m) | 233 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 80 |
| Windage Adjustment Range (MIL) | 23 |
| Windage Adjustment Range (cm @ 100m) | 233 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 12 |
| Magnification Min | 4 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 21.5 |
| Linear FOV High Mag (ft@100yds) | 10 |
| Angular FOV Low Mag (Degrees) | 4.1 |
| Angular FOV High Mag (Degrees) | 1.9 |
| Eye Relief Low Mag (in) | 4.9 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |

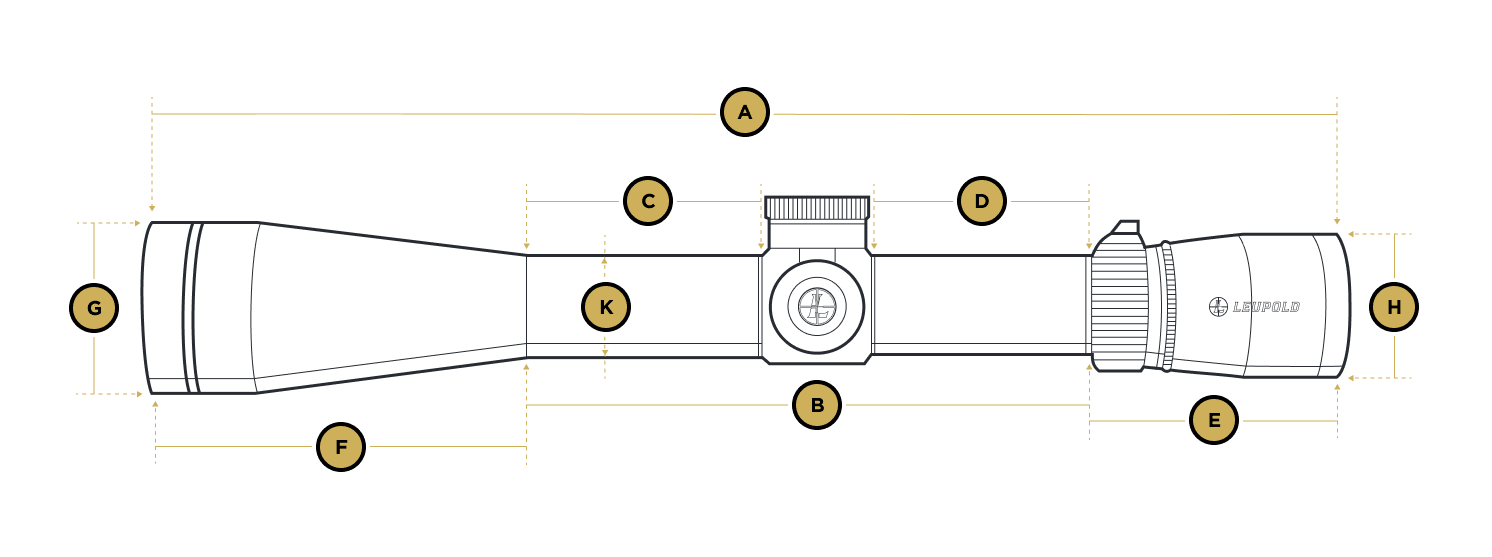

Dimensions
| A Total Length (in) – A | 12.49 |
|---|---|
| B Total Mounting Space (in) – B | 5.39 |
| C Front Mounting Space (in) – C | 2.32 |
| D Rear Mounting Space (in) – D | 1.85 |
| E Eyepiece Length (in) – E | 3.5 |
| F Objective Length (in) – F | 3.6 |
| G Objective Diameter (in) – G | 1.83 |
| H Eyepiece Diameter (in) – H | 1.56 |
| K Maintube Diameter (mm/in) – K | 1 Inch |
