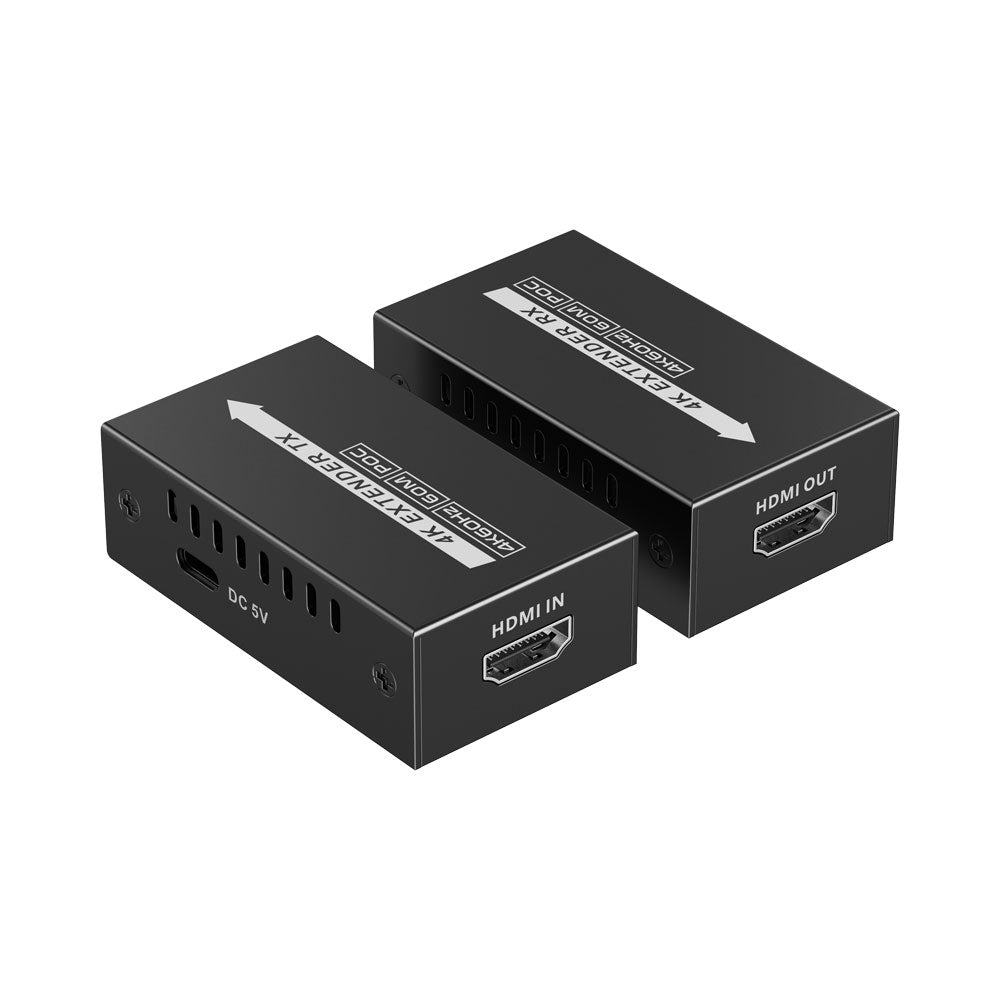

LENKENG SUPER MINI HDMI OVER SINGLE CAT6 EXT 60M

FEATURES • Zero Latency Transmission • Extends 4K @60Hz (3840 × 2160) HDMI up to 60m Over CAT6/6A/7 Cable • Supports HDR10 • Supports EDID Passthrough and Auto Downscaling • Lightning, Surge and ESD Protection • Supports PoC Network Cable Power Supply • Only the Transmitter Requires a Power Supply SPECIFICATIONS • Maximum Transfer Rate: 18Gbps • Maximum Transmission Bandwidth: 600MHz • EDID Passthrough: Yes • Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV 4:4:4), HDCP 2.2 • Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1920×1200, 1360×768, 1366×768, 1600×900, 1024×768, 800×600 • Transmission Distance: CAT6/6A/7 ≤60m • Audio Formats: LPCM / DTS 5.1 / Dolby Digital 5.1CH • Power Supply: Transmitter: DC 5V 2A, Receiver: PoC (Powered by Transmitter) • Power Consumption (TX + RX): Less Than 5W • Working Temperature: –20~60°C • Storage Temperature: –30~70°C • Humidity (No Condensation): 0~90% RH • Housing Material: Metal • Weight: Transmitter: 92g, Receiver: 91g • Colour: Black • Dimensions (L × W × H): 67 × 40 × 23mm • Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV per IEC61000-4-2 Standard), Lightning Protection, Surge Protection
