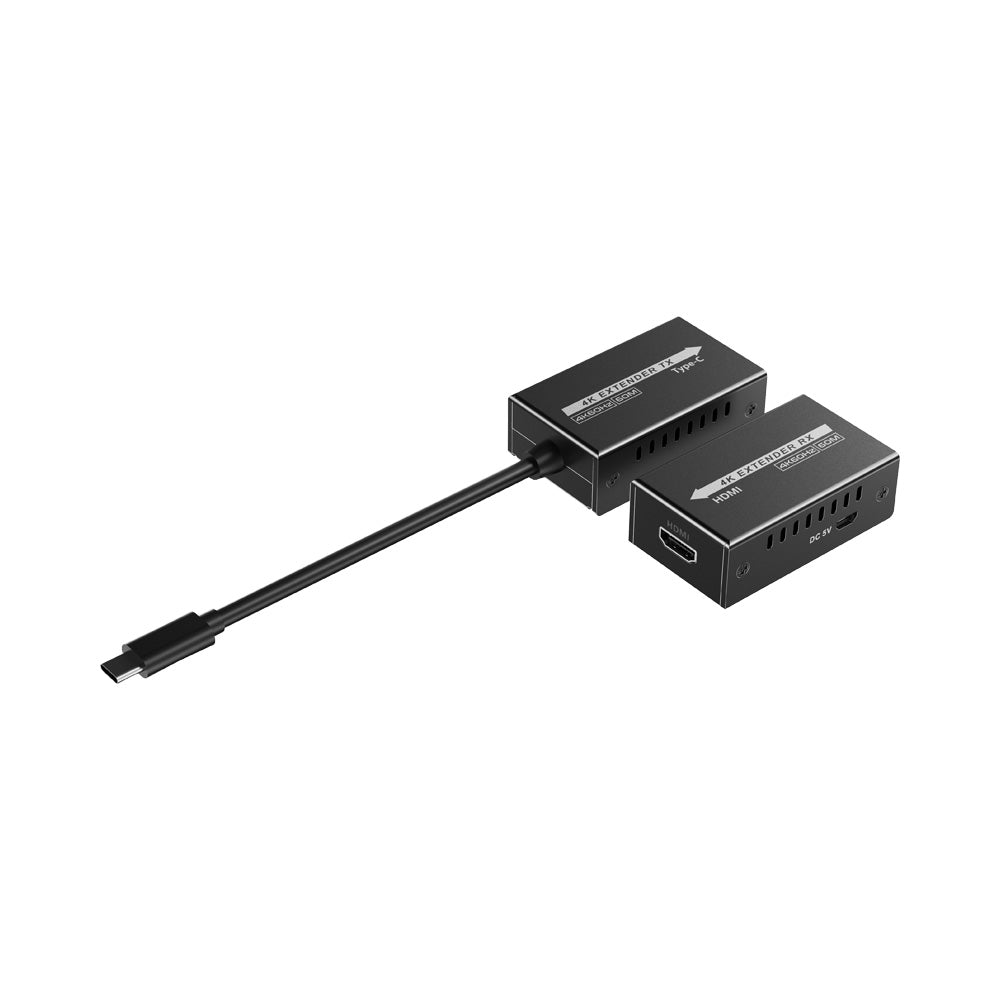

LENKENG 4K@60HZ USB-C TO HDMI EXTENDER,60M

FEATURES • Zero Latency Transmission • Supports up to 4K @120Hz Resolution • Compatible with CAT6/6A/7 Network Cable • Transmission Distance up to 60m for 4K @60Hz and 25m for 4K @100/120Hz • Supports HDR10 • EDID Passthrough and Self-Adaptive Display on Resolutions • Type-C Input and HDMI Output • The Transmitter Can Take Power from the Source Signal Device through the Type-C Port SPECIFICATIONS • Voltage: TX Powered by the Signal Source, RX DC 5V 500mA • Power Consumption: TX <3W, RX <3W • HDMI Version: HDMI 2.0 • HDCP Version: HDCP 2.2, HDCP 1.4 • Max. Transmission Rate: 18Gbps • Supported Resolutions: 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 1920×1200, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60/120Hz, 2560×1440 @50/60/120/144Hz, 3840×2160 @24/25/30/50/60/100/120Hz, 4096×2160 @24/25/30/50/60Hz • TMDS Signal: 0.7~1.2Vp-p (TMDS) • DDC Signal: 5Vp-p (TTL) • CAT6/6A/7 Transmission Distances: 4K @60Hz up to 60m, 2560×1440 @120/144Hz up to 30m, 4K @100/120Hz up to 25m • Supported Audio Formats: PCM, DTS, Dolby • HDR10: Supported • HDMI 3D: Supported • EDID Passthrough: Supported with Auto Downscaling • Working Temperature: -20~55°C • Storage Temperature: -30~60°C • Humidity Tolerance: 0~90% RH (No Condensation) • Material: ABS • Colour: Black • Dimensions (L × W × H): 67 × 38 × 21mm • Weight: TX 85g, RX 72g • ESD Protection: 1a Contact Discharge Level 2 (±4KV), 1b Air Discharge Level 3 (±8KV), Standard IEC61000-4-2
