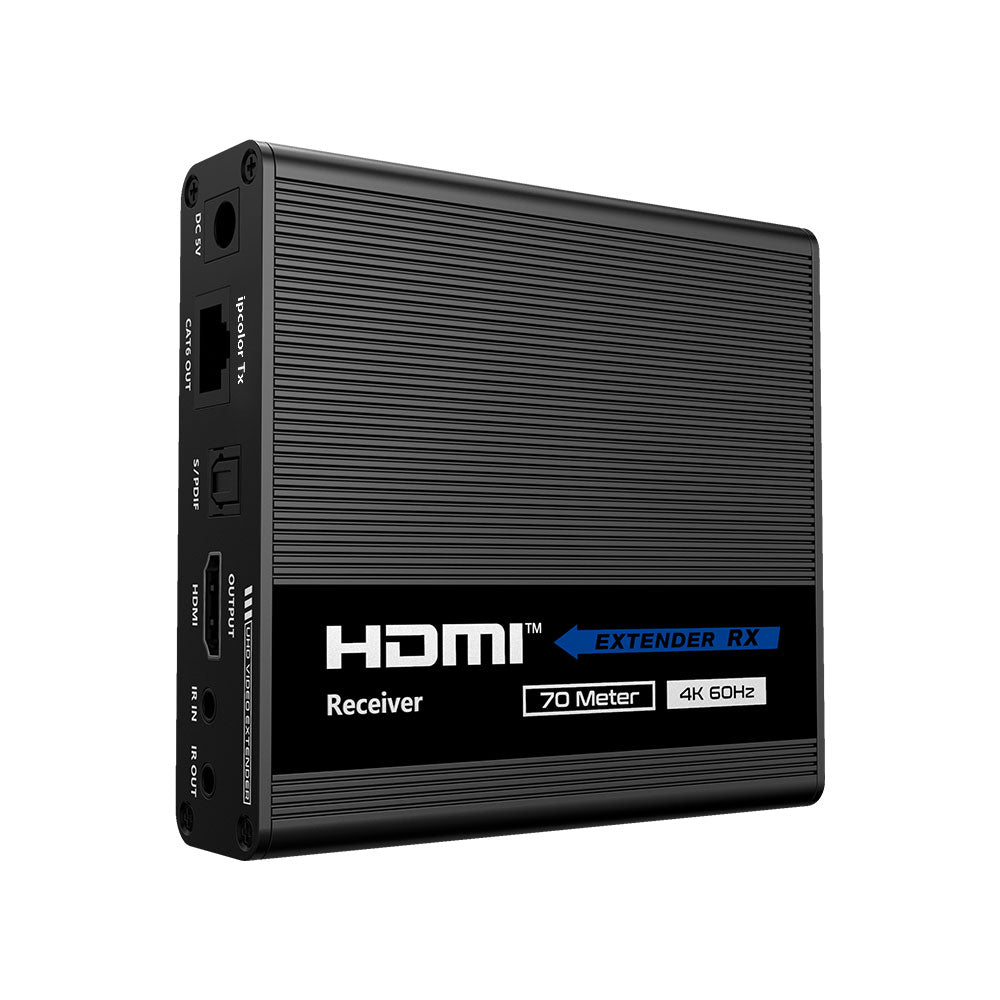

LENKENG LKV676 CASCADE RECEIVER ONLY

FEATURES • Zero Latency • 4K @60Hz HDMI Signal Can be Transmitted 70m Through a CAT6/6A/7 Network Cable • Supports up to 10× Receivers in Cascade, Auto Adapt to Display Resolution • Receiver Can Extract the Digital Audio from the Transmitter Through the S/PDIF Port • Supports Dolby Audio (Dolby TrueHD 7.1CH / Dolby Digital 5.1CH) • Supports HDR (YUV4:4:4), EDID Passback • Transmitter Supports One HDMI Loop-Out • Supports Bi-Directional IR Passback Function (20–60KHz), Cascade When 10× Receivers Are Available • One Receiver Can Be Powered by the Transmitter via Network Cable, Only on the First Receiver • Anti-Lightning, Anti-Surge, Anti-Static Protection SPECIFICATIONS • Voltage/Current: DC5V 2A • Power Consumption: TX <4W, RX <4W • HDMI Compliance: HDMI 2.0 • HDCP Compliance: HDCP 2.2 • HDMI Resolution: 3840×2160 @24/25/30/50/60Hz • Supports Audio Formats: LPCM / DTS-HD / DTS-Audio /Dolby TrueHD 7.1CH / Dolby Digital 5.1CH • Input and Output DDC Signal: 0.7~1.2Vp-p (TMDS) • Input and Output DDC Signal: 5Vp-p (TTL) • Input Cable Length: ≤8m (AWG24) • Output Cable Length: ≤8m (AWG24) • CAT6/6A/7: ≤70m • Electrostatic Protection: 1a Contact Discharge level 3, 1b Air Discharge Level 3, Implementation of the Standard: IEC61000-4-2 • Working Temperature: -20~60°C • Storage Temperature: -30~ 70°C • Humidity (No Condensation): 0~90% RH • Dimensions (L × W × H): 106 × 99 × 26.2mm • Material: Aluminium-Alloy and Crystal Panel • Colour: Black • Weight: TX 210g, RX 210g
