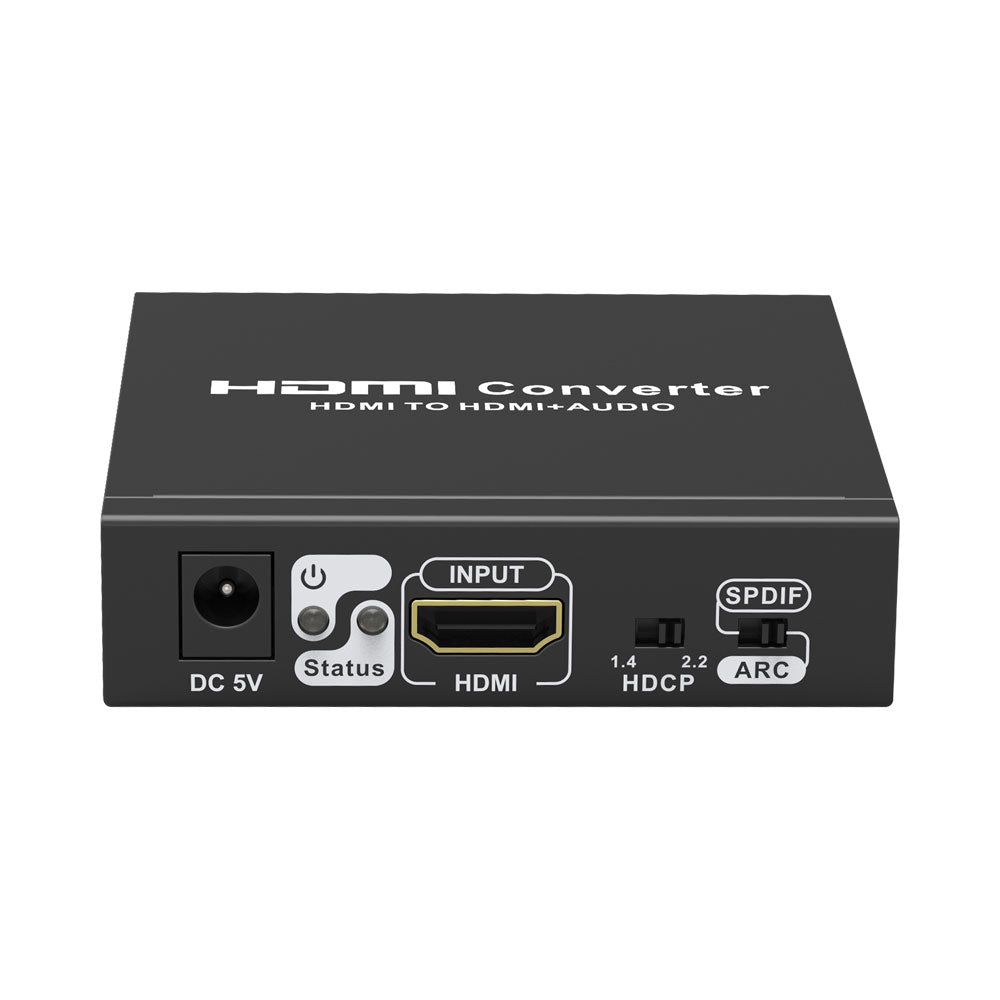

LENKENG HDMI TO HDMI + AUDIO EXTRACTOR V2.0

FEATURES • One HDMI input converted to one HDMI Video + (SPDIF+R/L+COAXIAL) Audio output • (SPDIF optical audio output and COAXIAL audio output cannot be used simultaneously • R/L stereo output is not available when using the ARC function) • Supports HDMI2.0, HDCP2.2, HDCP1.4 • Supports HDCP1.4 to HDCP2.2 and HDCP2.2 to HDCP1.4 conversion • Supports 3D video format • Supports ARC function • Supports HDR • Resolution supported is up to 4Kx2K@60Hz Ultra HD • Supports YUV4:2:0 / 4:2:2 / 4:4:4 and RGB 4:4:4 • Lossless transmission • Plug and play, easy installation SPECIFICATIONS • HDMI Compliance: HDMI2.0 • HDCP Compliance: HDCP2.2, HDCP1.4 • HDMI Resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4Kx2K @24 / 25 / 30 / 60Hz • Audio Formats: Dolby, DTS, LPCM • Maximum Transfer Rate: 18Gbps • Input and Output TMDS Signal: 0.7~1.2vp-p • Input and Output DDC Signal: 5vp-p (TTL) • Supported Input/Output Cable Lengths: ≤5m (AWG24) • Dimension: 80 (L) x 80 (W) x 19.5 (H) mm • Weight: 175g
