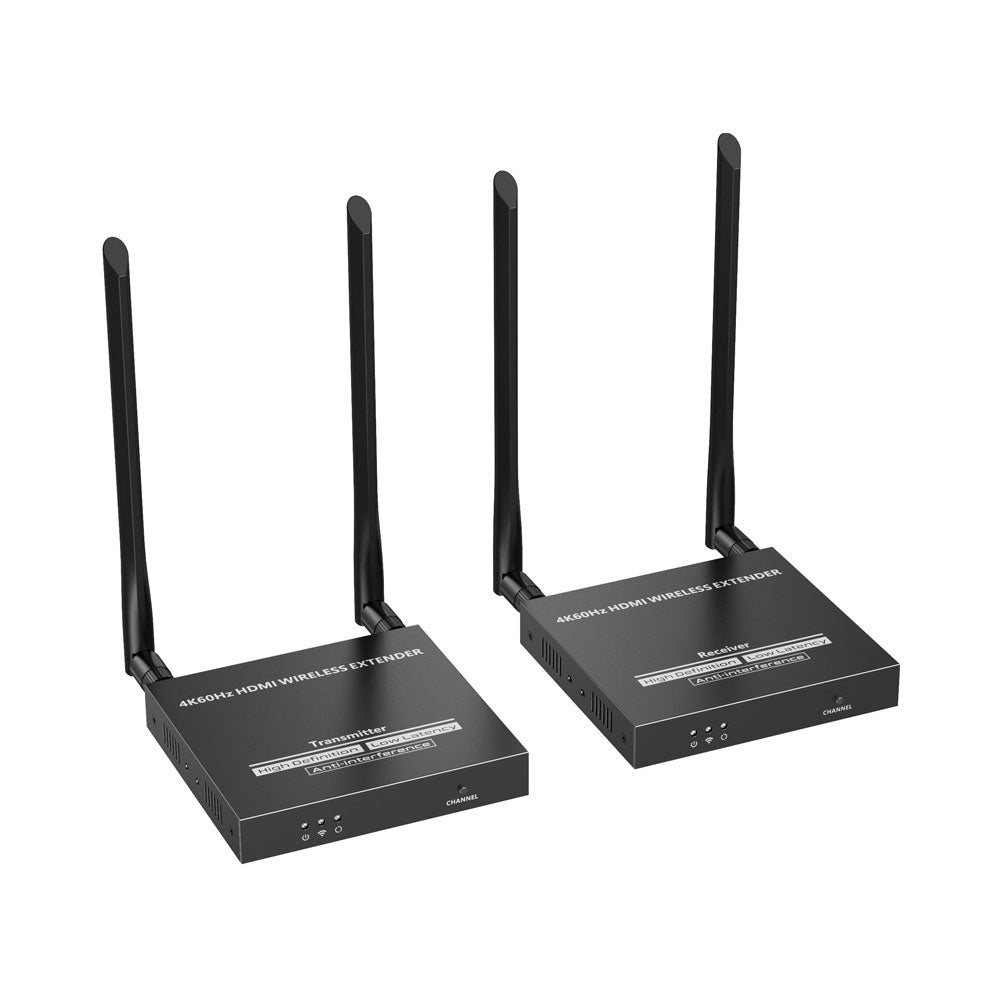

LENKENG 50M 4K@60HZ EXTENDER WITH IR LOOP/WIRELESS

FEATURES • Low Latency • Distance up to 50m - 4K @60Hz (Wall Material and Environment Dependant) • 5.1~5.8GHz Band - Channel Switchable • Anti-Interference • HDMI Loop-Out • IR Passthrough Function SPECIFICATIONS • Voltage/Current: DC5V 2A • Power Consumption: TX ≤6W, RX ≤4W • HDMI Version: HDMI 2.0 • HDCP Version: HDCP 1.4 / HDCP 2.2 • Maximum Transfer Rate: 18Gbps • Resolution Supported: 3840×2160 @24/30/50/60Hz, 1080P @50/60Hz, 720P @50/60Hz, 1920×1200, 2560×1440, 2560×1600 • Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS) • Input and Output DDC Signal: 5Vp-p (TTL) • Wi-Fi Frequency Bands: 5.18~5.24GHz • Transmission Distance: up to 50m • Latency: 130~180ms • Connection Types: One-to-One • SSID Pairing: Supported • ESD Protection: 1a Contact Discharge Level 3, 1b Air Discharge Level 3 (IEC61000-4-2 Standard) • Infrared Frequency: 20~60kHz • Receiving Range: Up To 5m • Working Temperature: -20~60°C • Storage Temperature: -30~70°C • Humidity (No Condensation): 0~90% RH • Dimensions: TX 115×125×20.6mm, RX 115×125×20.6mm • Colour: Black • Material: Metal • Net Weight: TX 353g, RX 346g
