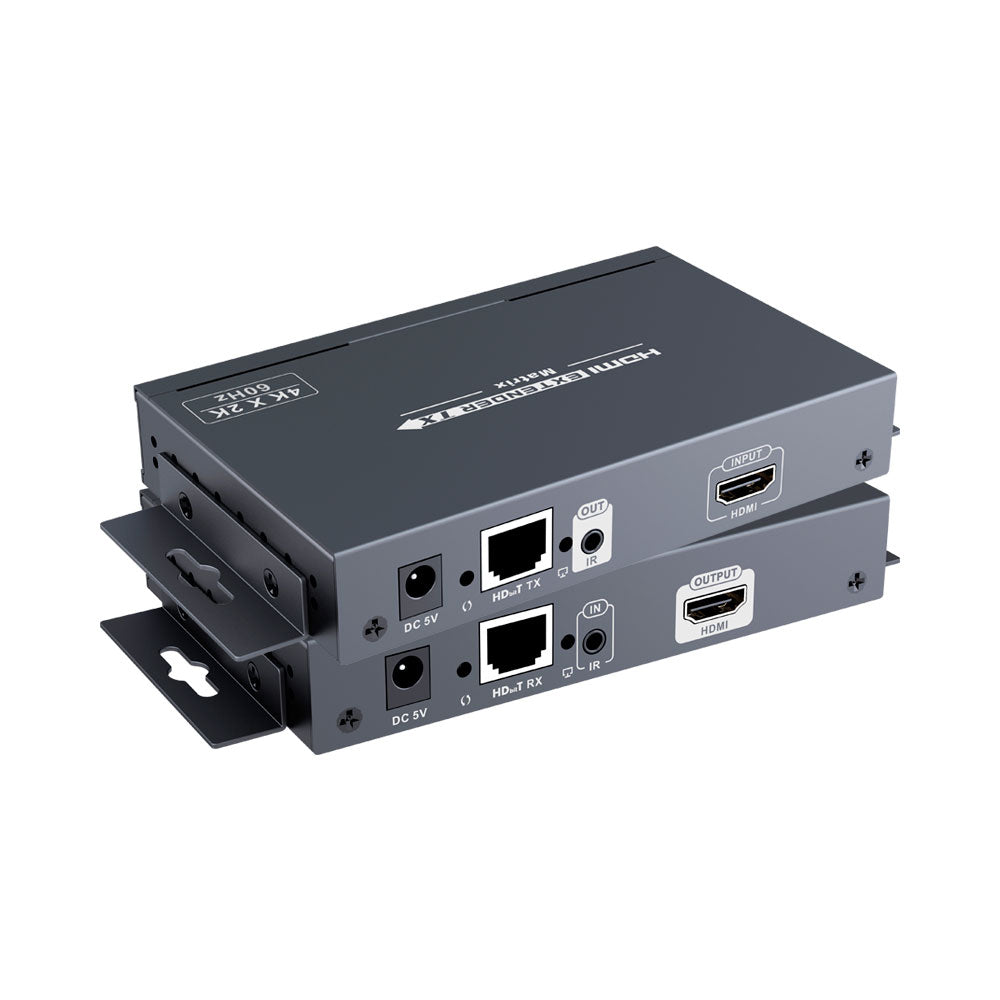

LENKENG HDBITT 4K@60HZ HDMI2.0 MATRIX OVER IP CAT6

FEATURES • Route multiple HDMI sources to multiple HDMI displays through LAN switch supporting IGMP • Support up to 100 transmitters input, output is unlimited • Extend HDMI signal over a single CAT5/5e/6 cable • Support transmission distance up to 394ft/120m up to 4Kx2K@60Hz • Support point to point and point to multi-point connection • Support IR pass-back function to control source device from Receiver location • Support to select and switch source device input from receiver via remote control and hard button • Support computer control software to select and switch source device input • Wall-mounting kits with screws • HDMI 2.0 and HDCP 2.2 compliant SPECIFICATIONS • Voltage/Current: DC5V/3A • Power Consumption: TX: 7W, RX:＜10W • HDMI Compliance: HDMI2.0 • HDCP Compliance: HDCP2.2 • HDMI Input Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz,4Kx2K @24/25/30/60Hz • HDMI Output Resolution: 1080p @60Hz, 4Kx2K @30/60Hz • Supports Audio Formats: PCM • Maximum Transfer Rate: 18Gbps • Input and Output TMDS Signal: 0.7~1.5Vp-p (TMDS) • Input and Output DDC Signal: 5Vp-p (TTL) • Input Cable Length: ≤5m( AWG26) • Output Cable Length: ≤5m(AWG26) • APP Control: Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily, OS system supports IOS and Android • IR Remote Control: Supports IR passback with 20~60KHz frequancy • Transfer Method: Over UTP/STP CAT5/5e/6 • Transmission Distance: 120m • Connector: RJ45 • Delay: ≤200 ms • Electrostatic Protection of the Whole Machine: 1a Contact discharge level 3, 1b Air discharge level 3, Standard: IEC61000-4-2 • Working Temperature: 0~50°C • Storage Temperature: -10~70°C • Humidity (No Condensation): 0~90% • Dimension164(L) x 108.5(W) x 23.6(H)mm • Material: Iron Alloy Material + Crystal Panel • Finishing: Grit blast • Colour: Black • Weight: TX:330g, RX:330g • Mean Time Between Failures: >30000 Hours (MTBF)
