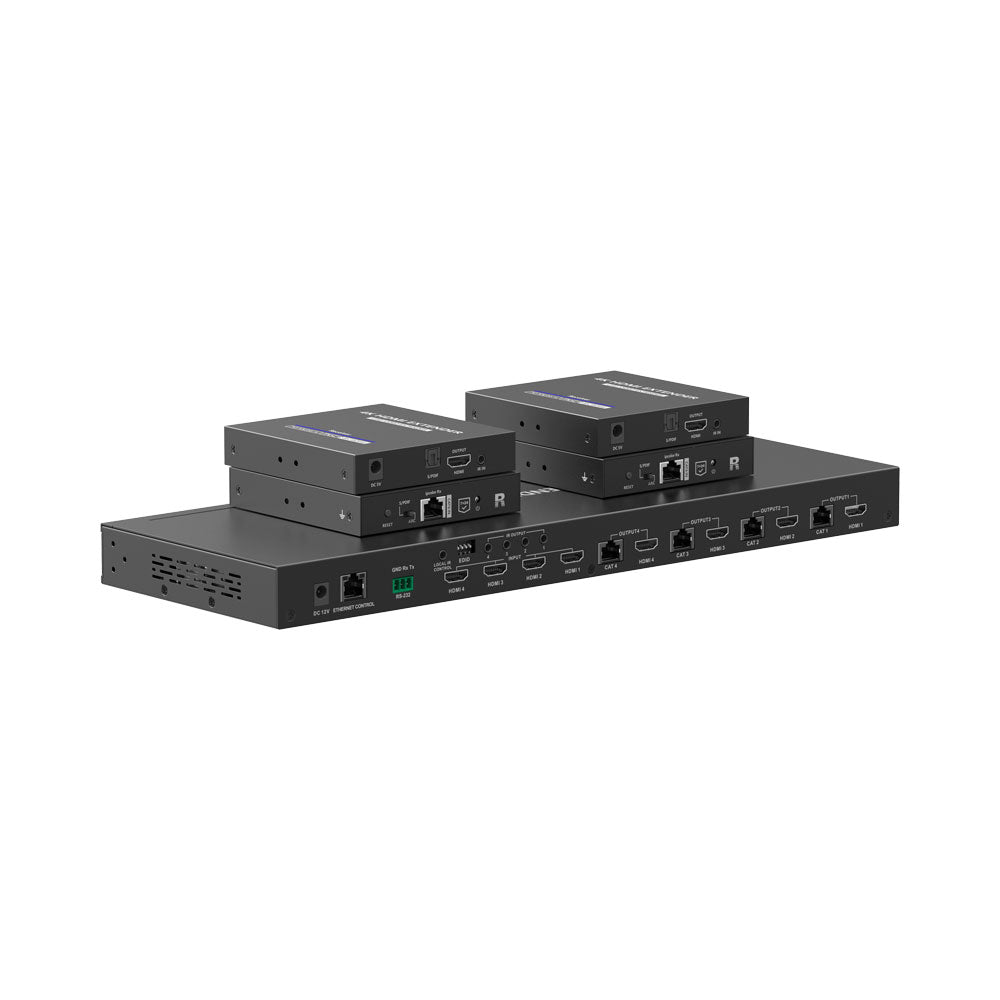

LENKENG 4X4 HDMI MATRIX EXTENDER SWITCHER 4K@60HZ

FEATURES • ipcolor IMAGE • 4× HDMI Sources to 4× HDMI Displays • 4× HDMI Loop-Outs • Distance up to 70m - 4K @60Hz (4:4:4) • IR Passback Function • Power-over-Cable • Multiple Control Methods SPECIFICATIONS • HDMI Version: HDMI 2.0 • HDCP Version: HDCP 2.2, HDCP 1.4 • Transmission Media: CAT6 / CAT6A / CAT7 • Transmission Distance: up to 70 m • Video Bandwidth: 600MHz (18Gbps) • Supported Resolutions: 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1080i @50/60Hz, 1080p @50/60Hz, 720p @50/60Hz; 576i/p; 480i/p; plus a Wide Range of Non‑HD and Wide‑Format Resolutions (3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600) • HDR10 Support: Yes • HDMI Loop‑Out: Transmitter Supports Loop‑Out • IR Passback: Supported (Unidirectional) • S/PDIF Audio Separation: Receiver Supports S/PDIF Audio Output • EDID DIP Switch: Transmitter Supports EDID Configuration • Audio Formats Supported: LPCM, DTS‑HD, DTS‑Audio, Dolby Digital 5.1CH, Dolby Atmos • Input TMDS Signal: 0.5~1.2Vp‑p • Input DDC Signal: 5Vp‑p • Control Interfaces: RS232 Control, Ethernet Control, Front‑Panel Button Control, Remote Control • Power-over-Cable (PoC): Power Supplied from Transmitter to Receivers • Case Material: Metal • Colour: Black • Dimensions: Transmitter 411×147×29mm, Receiver 105.5×20.5×20mm • Weight: Transmitter 1,530g, Receiver 243g • Power Supply: DC 12V 3A • Power Consumption: Transmitter and Receiver ≤30W • Operating Temperature: –20~60°C • Storage Temperature: –30~70°C • Humidity: 0–90% RH (Non‑Condensing) • Protection: ESD Protection (Contact Discharge Level 2 ±4kV; Air Discharge Level 3 ±8kV), Lightning Protection, Surge Protection
