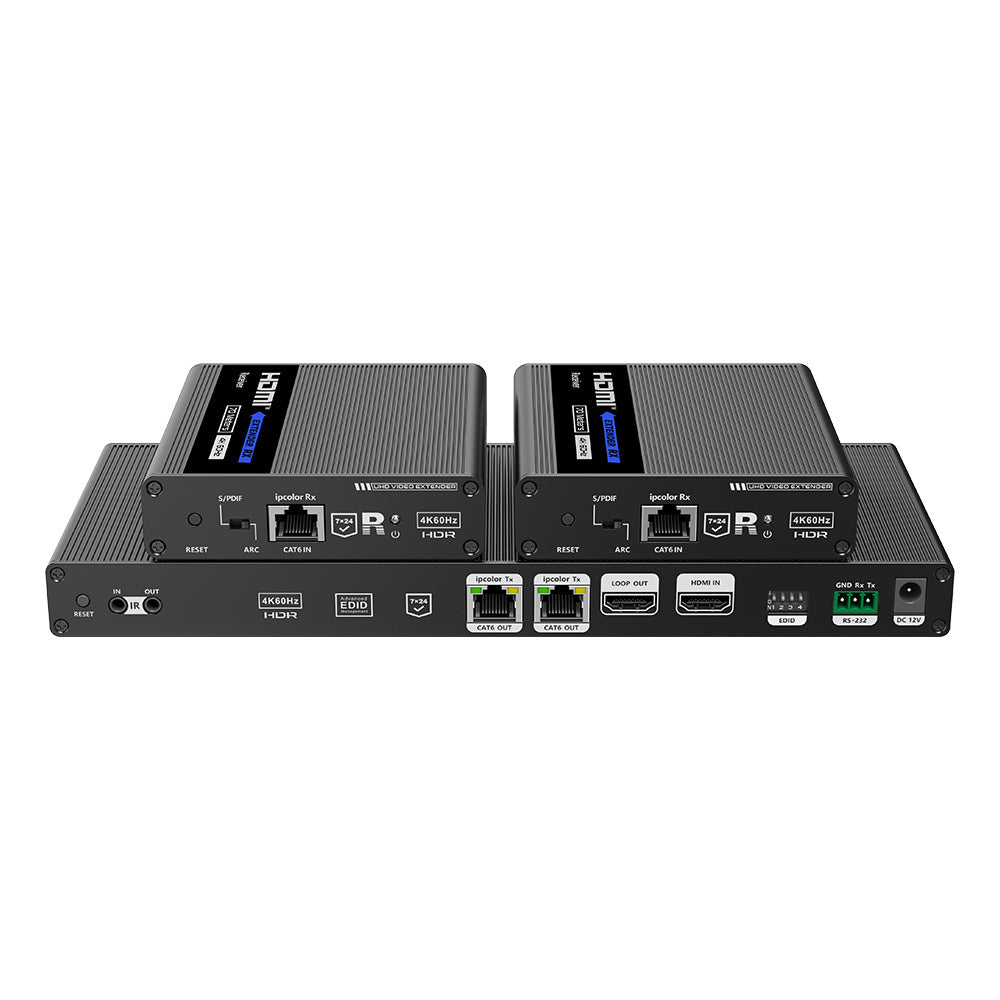

LENKENG 1X2 HDMI 4K@60HZ SPLITTER – 70M

FEATURES • 1-In and 2-Out • Zero-Latency • Distance up to 70m - 4K @60Hz HDR • HDMI Loop-Out • RS232 Control • Bi-Directional IR Passback Function • S/PDIF SPECIFICATIONS • Transmission Protocol: ipcolor • Distribution Mode: 1-In, 2-Out • Transmission Distance: CAT6/6A/7 ≤70m • HDMI Signal: HDMI 2.0, HDCP 2.2 • HDMI Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160 @24/25/30/50/60Hz, 4096x2160 @24/25Hz • Audio Formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1 • IR: Bi-Directional IR Passback (20~60khz) • RS232: 3-Pin (GND-RxD-TxD) Follows RS232 Levels • Working Temperature: -20~60°C • Storage Temperature: -30~70°C • Humidity (No Condensation): 0~90% RH • Protection: ESD Protection, 1a Contact Discharge Level 3, 1b Air Discharge Level 3, Implementation of the standard IEC61000-4-2, Lightning Protection, Surge Protection • Power Supply: TX DC 12V 2A, RX DC 5V 2A • Power Consumption: TX <9W, RX <4W • Material: Aluminium-Alloy Material plus Crystal Panel • Colour: Black • Weight: TX 640g, RX210g • Dimensions (L × W × H): TX 264 × 104 × 23.50mm, RX 106 × 99 × 26.2mm
