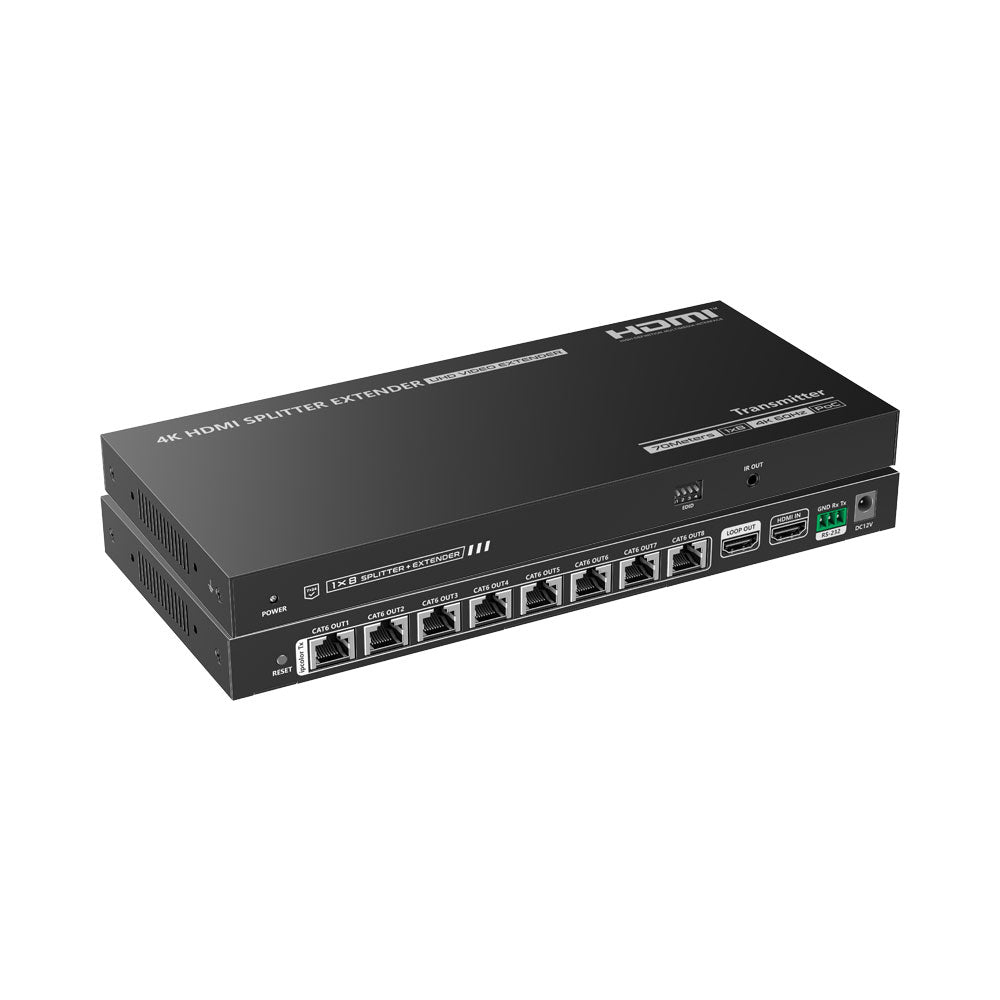

LENKENG IPCOLOUR 4K60 HDMI 1X8 SPLITTER CAT6/7 70M

FEATURES • Zero Latency Transmission • Split and Extend One HDMI Input Signal to Eight Identical Network Output Signals • Supports up to 4K @60Hz Resolution • Transmission Distance up to 70m over CAT6/6A/7 Cables • Supports IR Passback (20~60kHz) • The Transmitter Supports HDMI Loop-Out • The Receiver Supports 3.5mm Stereo Output • EDID Switch for Setting • RS232 Command Control • Surge, Lightning and ESD Protection • Equipped With Rack Mount Ears • Supports PoC, Only the Transmitter is Required to Supply Power SPECIFICATIONS • Transmission Protocol: ipcolor • Distribution Mode: 1-In and 8-Out • Transmission Distance: up to 70m via CAT6/6A/7 Cable • HDMI Signal: HDMI 2.0, HDCP 2.2 • Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 1280×960, 1280×800, 1280×1024, 1680×1050, 1600×1200, 1600×900, 1024×768, 800×600, 1920×1200, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25/30Hz • Audio Formats: LPCM, DTS, Dolby Digital 5.1 (4K) and Extended Formats for 1080p • IR Support: IR Passback Function (20~60kHz) • RS232 Control: 3-Pin (TxD, RxD, GND), Follows RS-232 Levels • Working Temperature: -20~60°C • Storage Temperature: -30~70°C • Humidity: 0~90% RH (Non-Condensing) • Protection: ESD Protection, Lightning Protection, Surge Protection • Power Supply: Transmitter DC 12V 3A • Power Consumption: Transmitter and Receiver <24W • Material: Metal • Colour: Black • Weight: Transmitter 778g, Receiver 145g • Dimensions: Transmitter 265 × 120 × 23mm, Receiver 85 × 75.5 × 16.5mm
