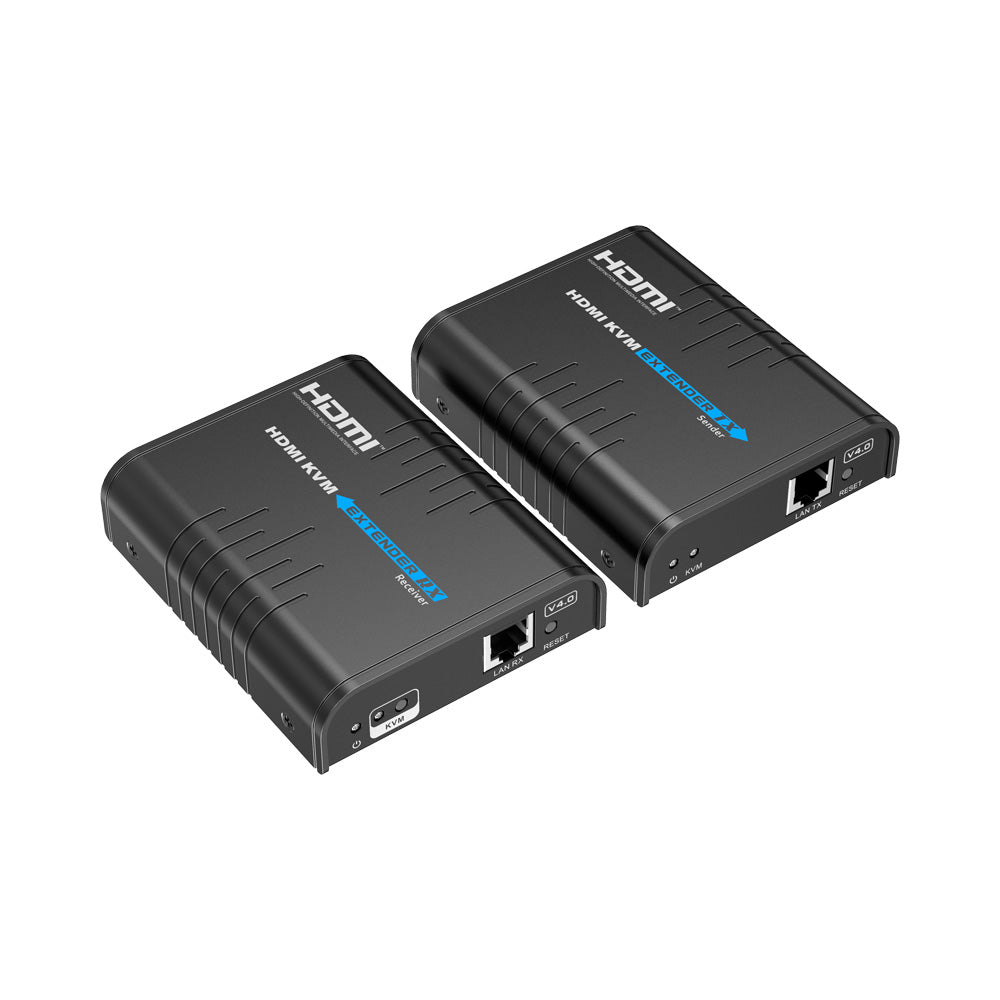

LENKENG 120M HDMI KVMEXTENDER OVER CAT5/5E/6

FEATURES • HDMI Transmission up to 120m via CAT6 Network Cable • Resolutions up to 1080p @60Hz • Supports Point-to-Point Connection or One-to-Many Connections via a Network Switch • Supports KVM Function • Aluminium-Alloy Casing • Lightning, Surge and ESD Protection SPECIFICATIONS Video Signal • HDMI Version: HDMI 1.3 • HDCP Version: HDCP 1.4 • Video Bandwidth: ≤20Mbps • Supported HDMI Resolutions: 640×480 @60Hz, 800×600 @60Hz, 1024×768 @60Hz, 1280×720 @60Hz, 1360×768 @60Hz, 1440×900 @60Hz, 1400×1050 @60Hz, 1680×1050 @60Hz, 1920×1080 @60Hz (1080p @60Hz) • Audio Support: PCM (44.1kHz, 48kHz) Connectivity and Transmission • Transmission Distance Over CAT6 Cable: up to 120m (Single CAT6 Cable) • LAN Connector: RJ45 • HDMI Connector: Type-A, 19-Pin, Female • KVM Function: Keyboard and Mouse Extension via USB over Network Cable Power / Consumption • Power Supply: DC 5V 1A (For Each Unit - Transmitter and Receiver) • Power Consumption: TX <3.5W, RX <3.5W Operating Conditions • Operating Temperature: –10~60°C • Relative Humidity: 10~95% (Non-Condensing) Physical Properties • Dimensions (Each Unit - TX and RX): 109.6 × 89.5 × 26.3mm • Weight (Each Unit): 240g • Colour / Housing: Black Metal / Aluminium-Alloy Casing
