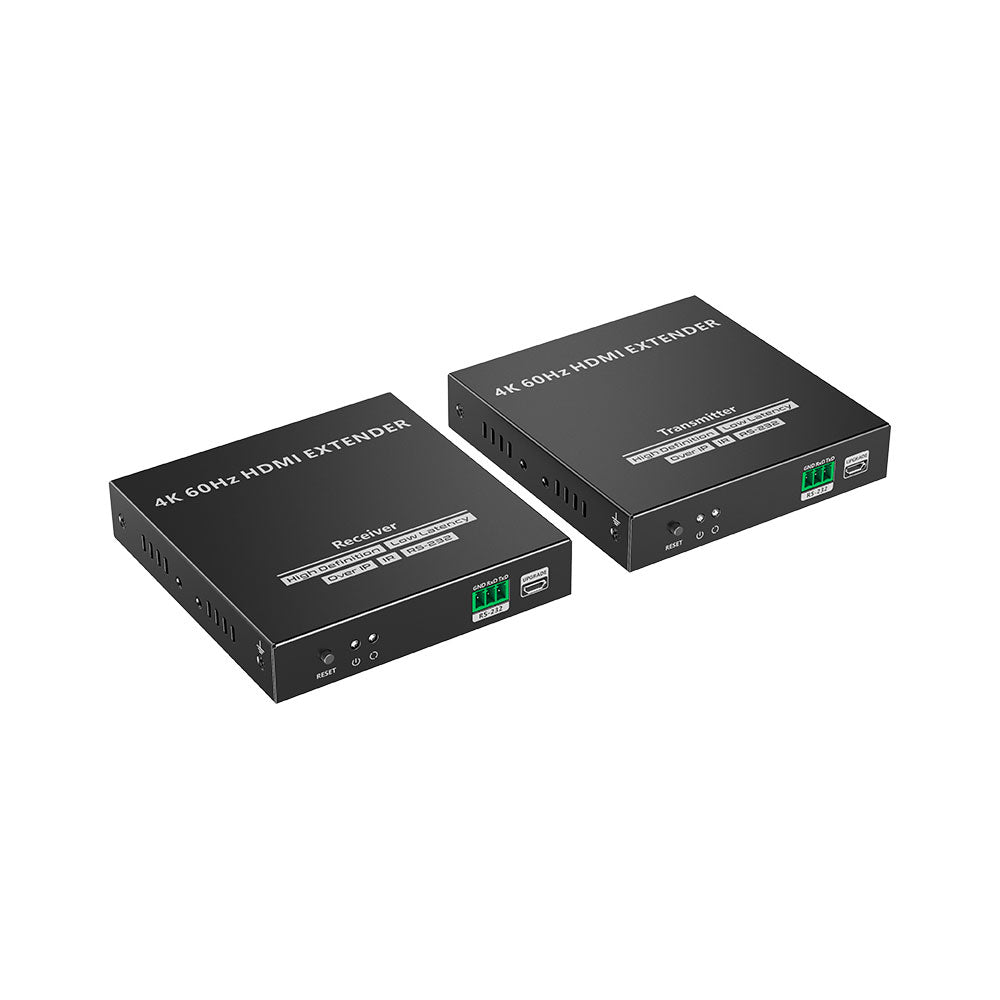

LENKENG 120M HDMI EXTENDER IPCOLOR (4K@60Hz)

FEATURES • Resolutions up to 4K @60Hz (3840×2160) • Extend up to 120m • Low Latency • IR Passback • RS232 Control • Lightning, Surge and ESD Protection SPECIFICATIONS • HDMI Length: ≤5m • Maximum Transfer Rate: 18Gbps • Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2 • Supported Resolutions: 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz; 1920×1200 @60Hz, 2560×1440 @60 Hz, 2560×1600 @60Hz • Connection Types: One-to-One, One-to-Many, Switch Cascading • Transmission Distance: CAT6/6A/7 ≤120m • Transmission Latency: 70~180ms • IR Receiving Range: ≤5m • IR Frequency Range: 20~60kHz • RS232 (GND/RXD/TXD): Default Baud Rate 115200; Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 • Power Supply: DC 5V 1A • Power Consumption: TX: ≤4.5W, RX: ≤2.5W • Operating Temperature: –20~60°C • Storage Temperature: 30~0°C • Humidity: 0~90% RH (No Condensation) • Housing: Metal • Weight: TX: 254g, RX: 242g • Colour: Black • Dimensions (L × W × H): 106 × 103 × 20.6mm • Protection: ESD Protection, Contact Discharge Level 2 (±4kV); Air Discharge Level 3 (±8kV); Meets IEC61000-4-2 Standard, Lightning and Surge Protection
