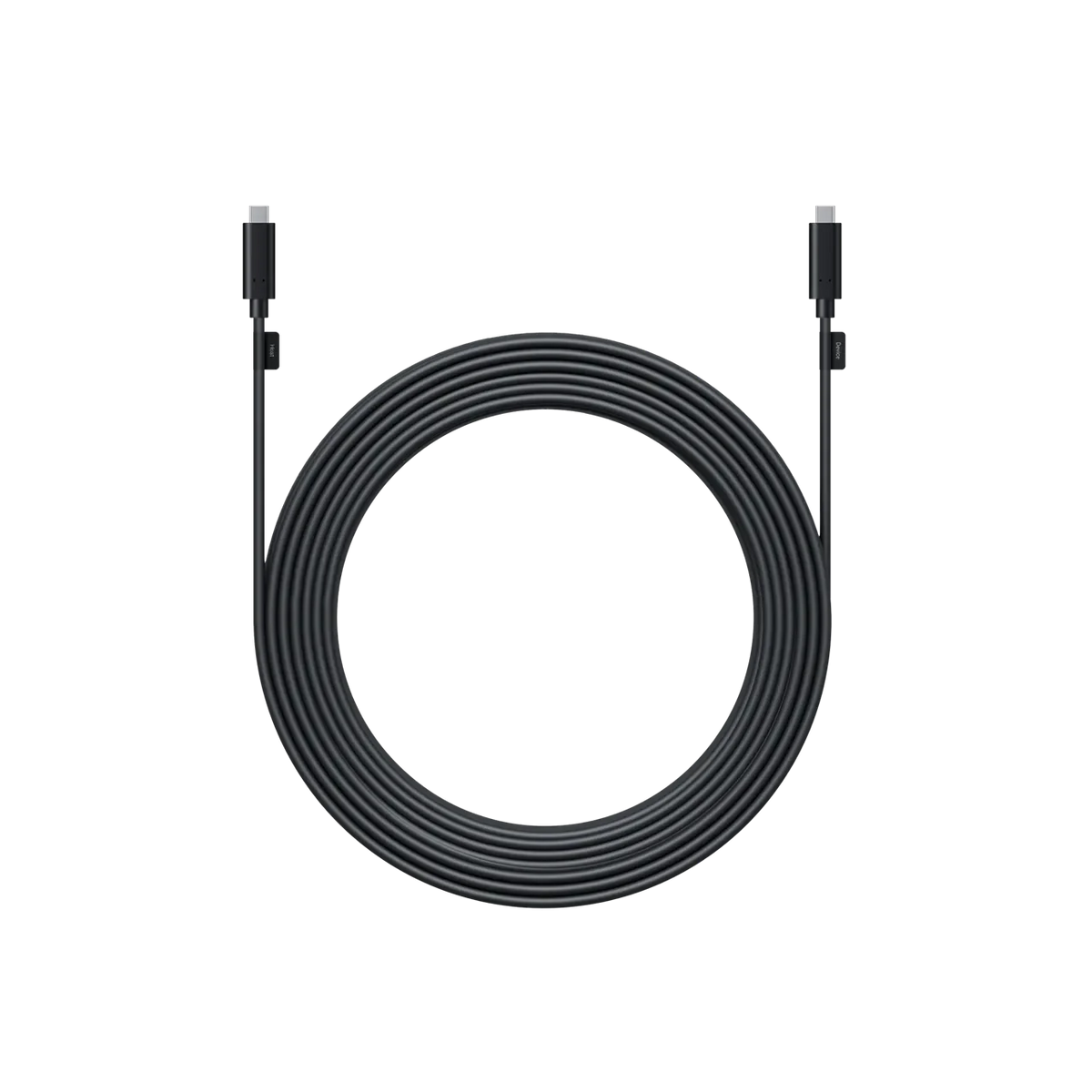

Insta360 Connect USB-C Cable (Extra Long, 10 m) — 10 m of certified reach for the Insta360 Connect
The Insta360 Connect USB-C Cable (Extra Long, 10 m) links the Insta360 Connect to the computer that runs the meeting when the bar sits far from the table or the rack. It is a fibre and copper hybrid USB-C to USB-C cable rated for 10 Gbps and USB 2.0 through 3.2, only 5 mm thick, with a 50 mm dynamic bend radius so it pulls through a 17 mm duct, and it is made to run through walls, ceilings, raceways and conduits.
What the Insta360 Connect USB-C Cable (Extra Long, 10 m) does
10 Gbps over the full run — fibre and copper hybrid, USB 2.0 to 3.2.
Built for the building — 5 mm cable, 50 mm bend radius, 17 mm minimum duct, 40 N tensile and 480 N crush ratings.

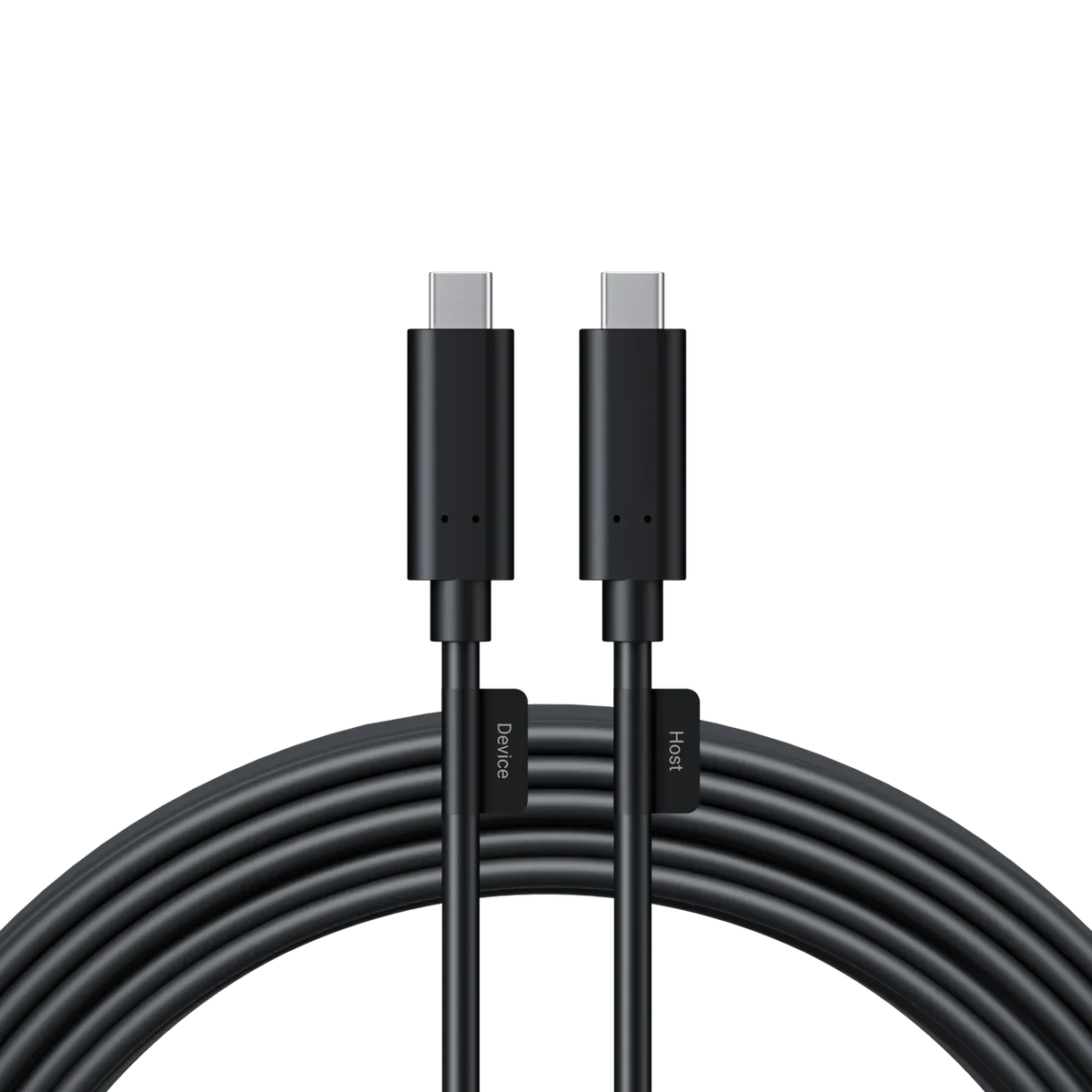

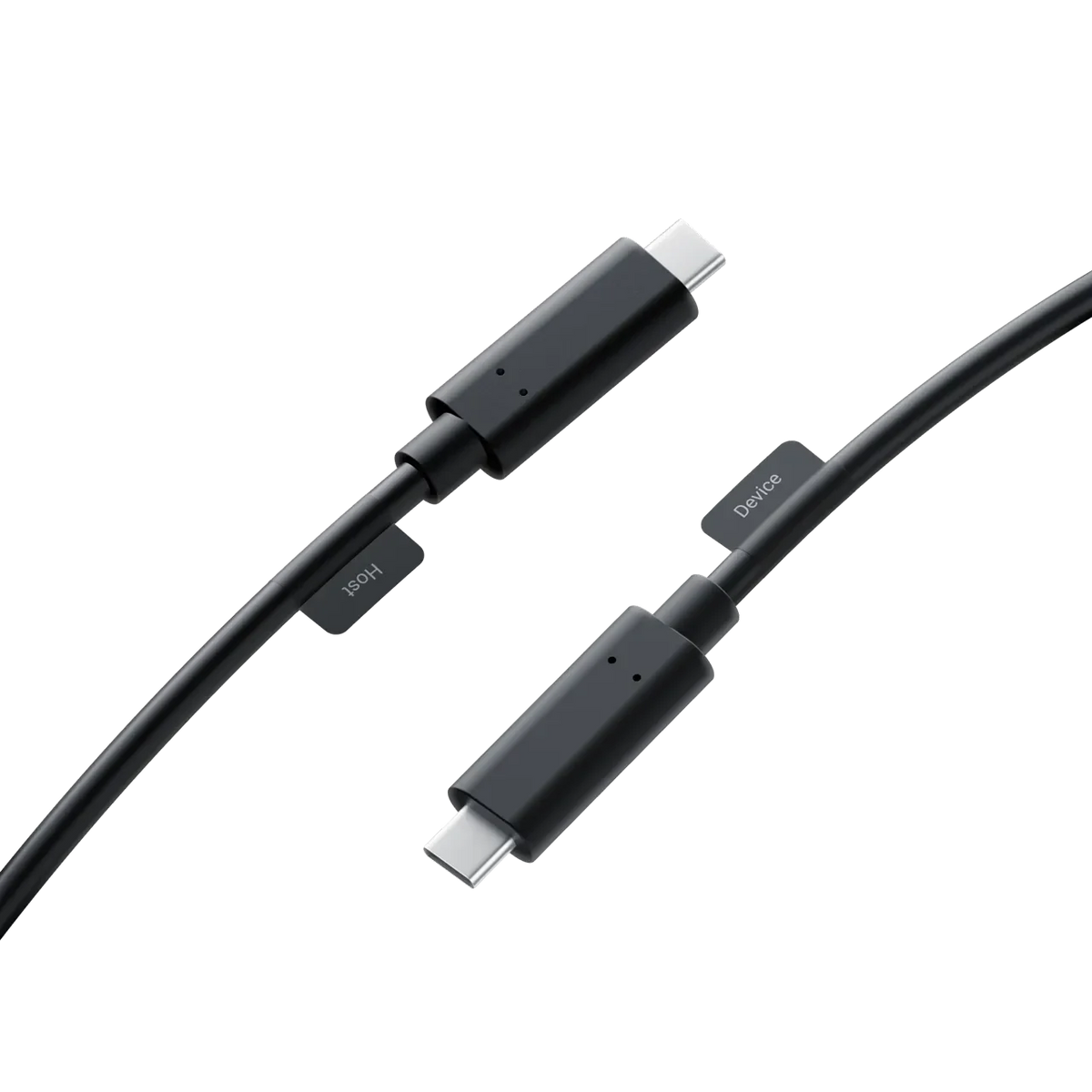

Directional — the host end goes to the computer and the device end to the Connect; do not swap them.
Also charges the remote — the Connect USB-C cables can top up the Connect Remote Control.
Insta360 Connect cables compared
Three extra-long cables cover the three links a Connect room needs: bar to computer, bar to display, and bar to Touch Panel.
Cable
USB-C to USB-C (10 m / 30 m)
HDMI (10 m / 30 m)
USB-A to USB-C (10 m)
Connects
Insta360 Connect to the computer
Connect HDMI out to a display, or a source to Connect HDMI in
Insta360 Connect to the Touch Panel
Maximum transmission
10 Gbps, USB 2.0 to 3.2
18 Gbps bandwidth
480 Mbps, USB 2.0
Construction
Fibre and copper hybrid, 5 mm
Extra-long HDMI, one-way
Active copper, 4.8 mm
Directional
Yes — host end and device end are marked
Yes — display end and source end are marked
Yes — USB-A to Connect, USB-C to Touch Panel
Runs through
Walls, ceilings, raceways, conduits (17 mm duct)
Walls, ceilings, raceways, conduits
Walls, ceilings, raceways, conduits (20 mm duct)
Figures are Insta360’s own published specifications. E&OE.
Insta360 Connect USB-C Cable (Extra Long, 10 m) specifications
Works with
Insta360 Connect
Length
10 m
Connectors
USB-C to USB-C, directional (host end and device end marked)
Maximum transmission
10 Gbps; USB 2.0 / 3.0 / 3.1 / 3.2
Construction
Fibre and copper hybrid; 5 mm diameter
Mechanical
Tensile strength 40 N; crush load 480 N; dynamic minimum bend radius 50 mm; minimum duct 17 mm
Installation
Walls, ceilings, raceways and conduits; self-powered devices
Operating temperature
-20 to 50 °C
Availability and support
Every cable is directional — the marked host and device ends must not be swapped.

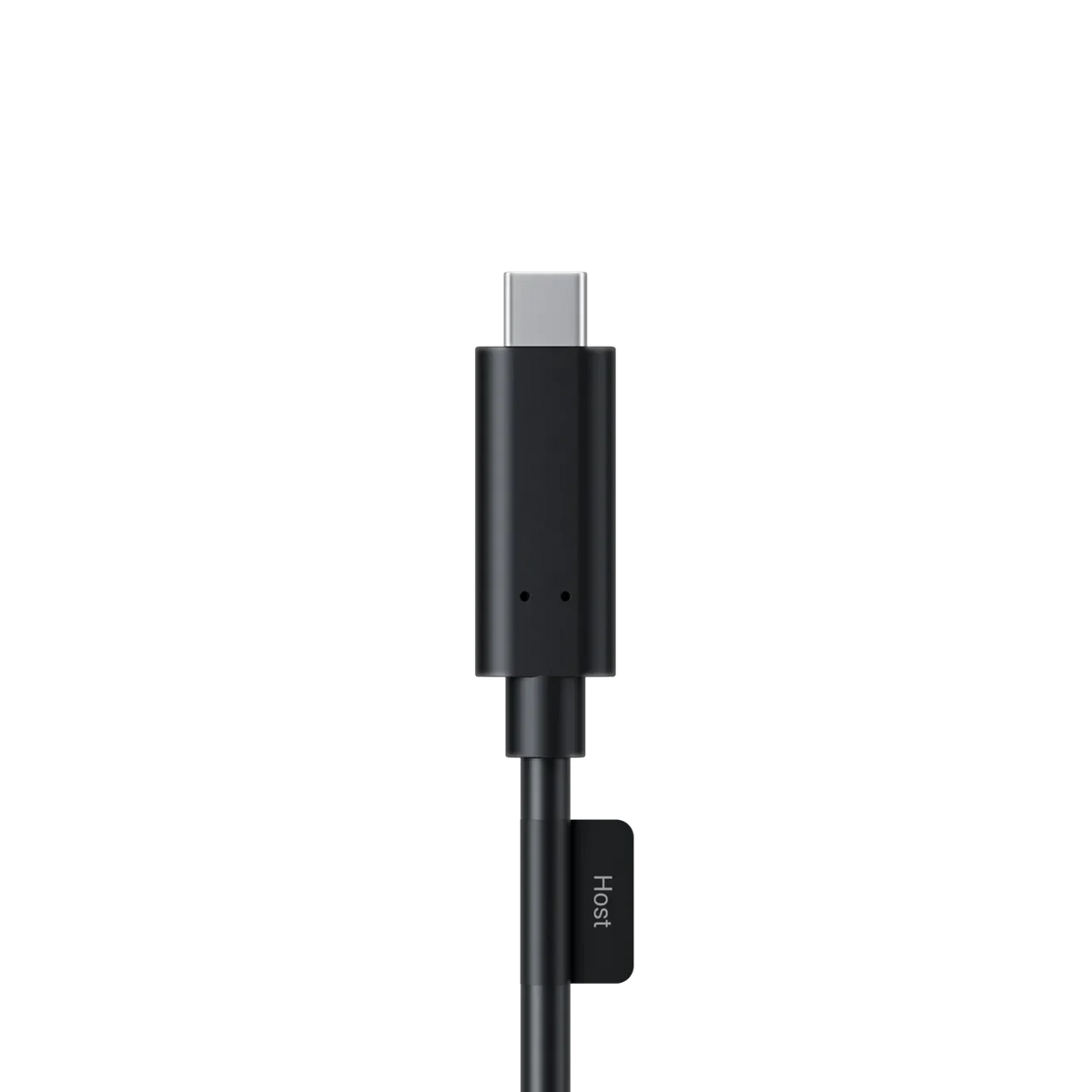

Which end goes where? The cable is one-way: the host end connects to the computer and the device end to the Insta360 Connect. Insta360 marks both ends; reversing them stops the link.
