Impro Cluster controller supplied in plastic housing for use in IPS metal enclosure.

Impro Cluster controller supplied in plastic housing for use in IPS metal enclosure.

R 5,689.00 ZAR
R 5,689.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

HCM941-0-0-GB
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

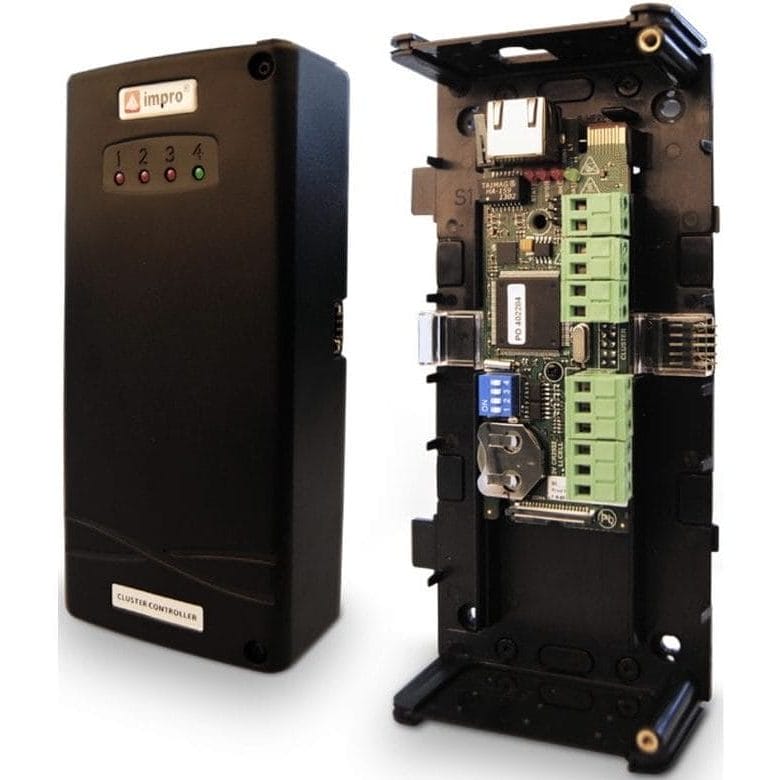

Impro Cluster controller supplied in plastic housing for use in IPS metal enclosure.

Cluster controller supplied in plastic housing for use in IPS metal enclosure.

Key Features

  • Simplified installations
  • Plug and play clustering
  • Powerful offline operation
  • Processing power to control up to 64 doors
  • Switches between four modes of operation by changing a dip-switch setting
  • Anti-tamper switch
  • 8 LED diagnostic indicators
  • S-Bus port to connect cluster modules up to 150 m away
  • RS485 and TCP/IP connection options
  • Supplied in plastic housing
  • Allows for full off-line functionality in the event of a power failure
  • Can be configured as a complete stand-alone access control system

Specifications

Specifications
Model Name HCM941
Product Description IPS Cluster controller unit
Color Uncovered PCB board
Interface in Lite mode Web based URL
Dimensions (d-w-h) 8.2cm x 38cm x 31cm 3.2” x 15” x 12.2”
Approximate Product Weight 5.45kg (12 lb)
Input Voltage 12 – 15 VDC polarity sensitive
Power Requirements at 12VDC 140mA current, 1.7W power at 12VDC
Power Input Protection Reverse polarity, over current and transient voltage protection
Processor 32-bit ARM Cortex M3 operating at 180MHz
Memory 200 KB RAM, 16 MB Flash Memory
Tag Functionality 10,000
Buffered transfers 100,000
RTC 1 x 3V, CR2032 Lithium cell battery. 2 yrs operating life, 5 yrs storage life
Card Compatibility Type Mifare, iClass, HID H1021, H10302 and H10304, HiTag Impro 125kHz and 13.56MHz slim tag, omega tag, quad transmitter
Anti-tamper Protection IPS mounted switch
Operating Temperature -25° to +60° C -13° to +140° F
Storage Temperature -40° to +80° C -40° to +176° F
Operating Humidity 0 to 75% relative humidity non-condensing (at +40° C / +104° F)

Product Details

  • Model: HCM941-0-0-GB
  • Brand: Impro
