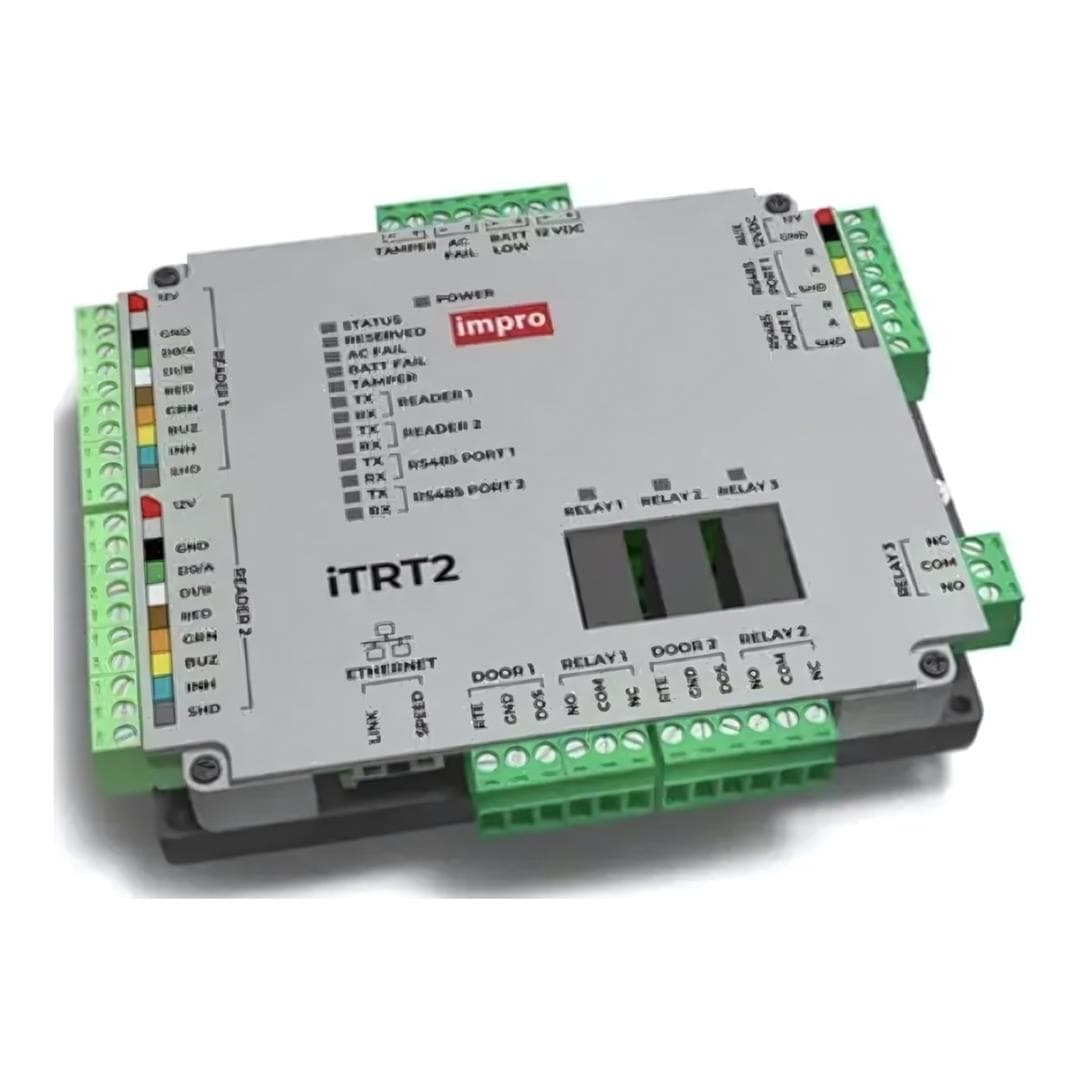

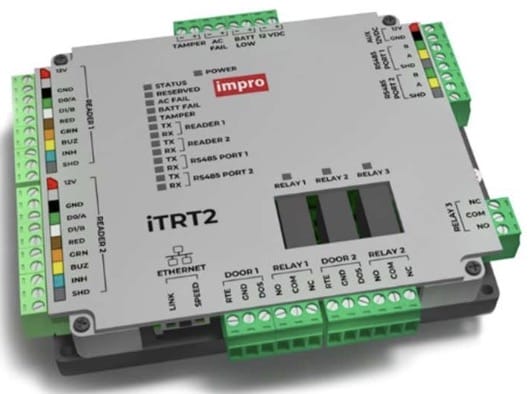

Impro iTRT2 Distributed Controller PC Board only

Impro iTRT2 Distributed Controller PC Board only

R 6,134.00 ZAR
R 6,134.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

HCD900-0-0-GB-00
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Impro iTRT2 Distributed Controller PC Board only

iTRT2 Distributed Controller PC Board only.

Key Features

  • Versatile: variants for indoor and outdoor use
  • Compatibility: support for OSDP and legacy Wiegand readers
  • Simplicity: available in 3 variants for ease of installation options
  • Interoperability: compatible and integrated with Impro solutions

Specifications

Specifications
Part Number HCD900
Product Description iTRT2 in plastic housing (No PSU)
Colour Grey
Dimensions (D x W x H) 164mm x 140mm x 28mm
Approx. Product Weight 0.35kg
Material PC Plastic
Input Voltage 12V DC
Power Requirements at 12VDC 120mA
Relay Power Requirements 0.45W per relay
Power Input Protection Reverse polarity and over-current protection
Ethernet 10/100 Base-T
RS-485 Ports 1 x 38400 RS-485 for controller networking 1 x 38400 RS-485 for Aperio™ lock hubs
OSDP & Wiegand 2 hardware-selectable ports for OSDP or legacy Wiegand
Status LEDs 20 Status LEDs
Digital Inputs 2 x Door Open Sensor inputs 2 x Request to Exit Button inputs
Input Type 4 dry contact inputs with end-of-line (EOL) sensing
Number of Relay Outputs 3
Output Type 3 x independent, SPDT dry contact relays (NO, COM, NC)
Relay contacts Normally Open, Common, Normally Closed
Contact Ratings 5A @ 28VDC (TV-5 Rated), 100k operations minimum
Operating Temperature -25°C to +60°C (-13°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +176°F)
Operating Humidity 0 to 95% RH non-condensing (at +40°C / +104°F)
SABS Certification (RSA) ✔️
Versatility Variants for indoor and outdoor use
Compatibility Supports OSDP and legacy Wiegand readers
Simplicity Available in 3 variants for ease of installation
Interoperability Compatible and integrated with Impro solutions
Technical Specifications Part Number: HCD900 Product Description: iTRT2 in plastic housing (No PSU) Colour: Grey Dimensions (D × W × H): 164 mm × 140 mm × 28 mm Approx. Product Weight: 0.35 kg Material: PC Plastic
Electrical Specifications Input Voltage 12 V DC Power Requirements at 12 V DC: 120 mA Relay Power Requirements: 0.45 W per relay Power Input Protection: Reverse polarity and over-current protection
Interconnectivity Ethernet 10/100 Base-T RS-485 Ports: 1 × 38400 RS-485 for controller networking, 1 × 38400 RS-485 for Aperio™ lock hubs OSDP & Wiegand: 2 hardware-selectable ports for OSDP or legacy Wiegand Status LEDs: 20
Input Specification Digital Inputs 2 × Door Open Sensor inputs, 2 × Request to Exit Button inputs Input Type: 4 dry contact inputs with end-of-line (EOL) sensing

Product Details

  • Model: HCD900-0-0-GB-00
  • Brand: Impro
