HIL093 PTZ-P332ZI-DE

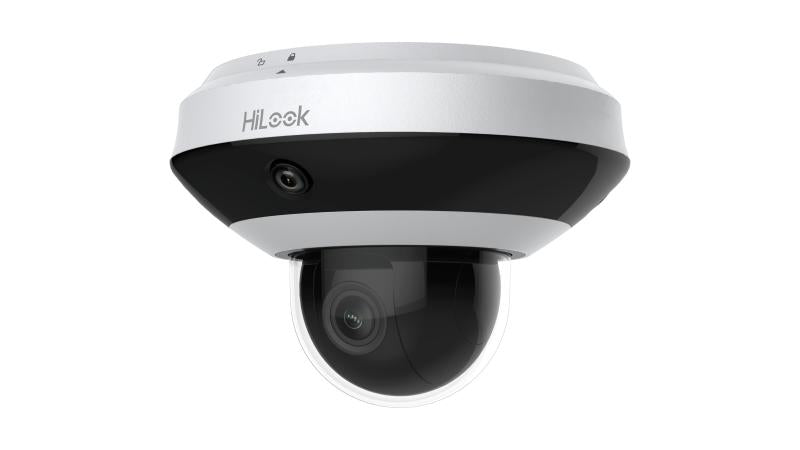

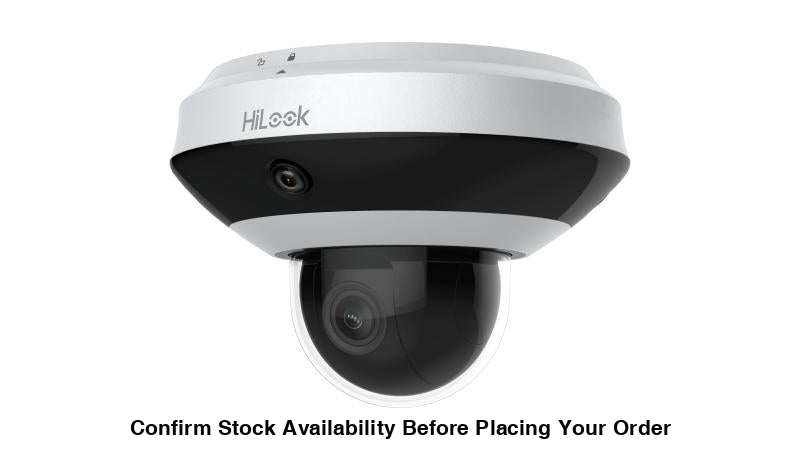

HiLook 3-inch 2 MP 4X Powered by Dark Fighter IR Network Speed Dome

  • Three 2 MP cameras face different directions to cover larger areas
  • One 2 MP camera for close-up view with 4x zoom ability
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to DWDR technology
  • Good night-time performance with up to 10 m IR
    • Lens
    • FOV Horizontal field of view: 120° to 56.6° (wide - tele),Vertical field of view: 61.8° to 31.7° (wide - tele),Diagonal field of view: 149° to 65° (wide - tele)
    • Focal Length2.8 mm to 12 mm, 4× optical zoom
    • Zoom SpeedApprox.5.4 s (optical, wide - tele)
    • Working Distance10 mm to 1500 mm (wide - tele)
    • Aperture RangeF2.0 to F2.4
    • Smart Features
    • Basic Event Detection Motion Detection, Video Tampering Detection, Exception
    • Smart DetectionAudio Exception Detection, Intrusion Detection, Line Crossing Detection
    • Smart Record ANR (Automatic Network Replenishment)
    • ROIMain stream supports eight fixed areas.
    • Smart Image Enhancement HLC/BLC/3D DNR/Regional Exposure/Regional Focus
    • Network
    • Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
    • Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
    • API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
    • Simultaneous Live View Up to 4 × 4 channels
    • User/Host Up to 32 users,3 levels: Administrator, Operator and User
    • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
    • Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
    • Image
    • Max. ResolutionMain stream:,50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
    • Interface
    • Audio Input1-ch audio input
    • Audio Output1-ch audio output
    • Network Interface1 RJ45 10 M/100 M Ethernet
    • Dual-VCA Support
    • Camera Module
    • Image Sensor1/2.8" progressive scan CMOS
    • Min. Illumination Color: 0.05 Lux @(F2.0, AGC ON),B/W: 0.01 Lux @(F2.0, AGC ON),0 Lux with IR
    • White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
    • GainAuto/Manual
    • Shutter Time50 Hz: 1/25 s to 1/30,000 s,60 Hz: 1/30 s to 1/30,000 s
    • Day & Night IR Cut Filter
    • Digital Zoom8×
    • Privacy Mask8 programmable privacy masks
    • Focus Mode Semi-automatic/Manual
    • WDR Digital WDR
    • General
    • Materia lPC + ABS & Aluminum alloy
    • DimensionsΦ 183 mm × 133 mm (Φ 7.20" × 5.24")
    • Weight Approx. 0.9 kg (1.98 lb)
    • Protection Level TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
    • Power

      12 VDC, 2.0 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class 4

      Max.24 W (Max. 6 W for IR)

    • Working Temperature-10°C to 50°C (14°F to 122°F)
    • Working Humidity≤ 90%
    • Supplement Light
    • IR Distance Up to 10 m IR (radius)
    • PTZ
    • Movement Range (Pan)Pan: 0° to 350°;
    • Pan Speed Pan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
    • Movement Range (Tilt)Tilt: 0° to 90°
    • Tilt Speed Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
    • Proportional ZoomSupport
    • Presets300
    • Power-off Memory Support
    • PTZ Status Display Support
    • Preset Freezing Support
    • Scheduled Task Preset/Dome Reboot/Dome Adjust
    • PTZ Linkage Support
    • Compression Standard
    • Video CompressionMain stream: H.265/H.264/MJPEG,H.264: Main Profile/High Profile
    • Video Bitrate32 Kbps to 8192 Kbps
    • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2
    • Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212: 32 Kbps/64 Kbps/128 Kbps
    • SVC Support
