HiLook 6 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera

HiLook 6 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera

R 2,579.00 ZAR
R 2,579.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

HIL098-IPC-B160HA-LUF/SL

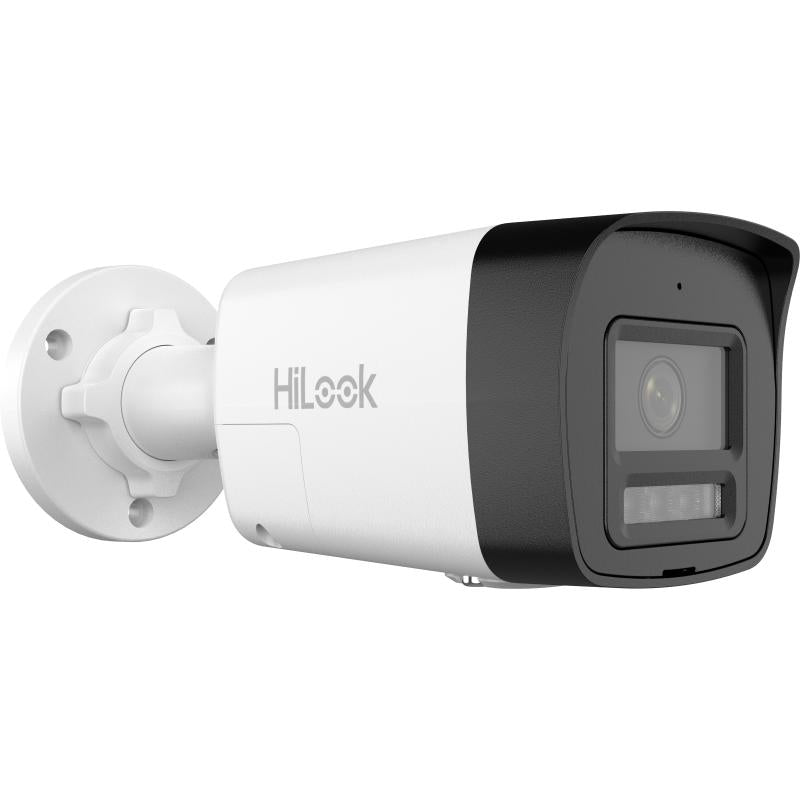

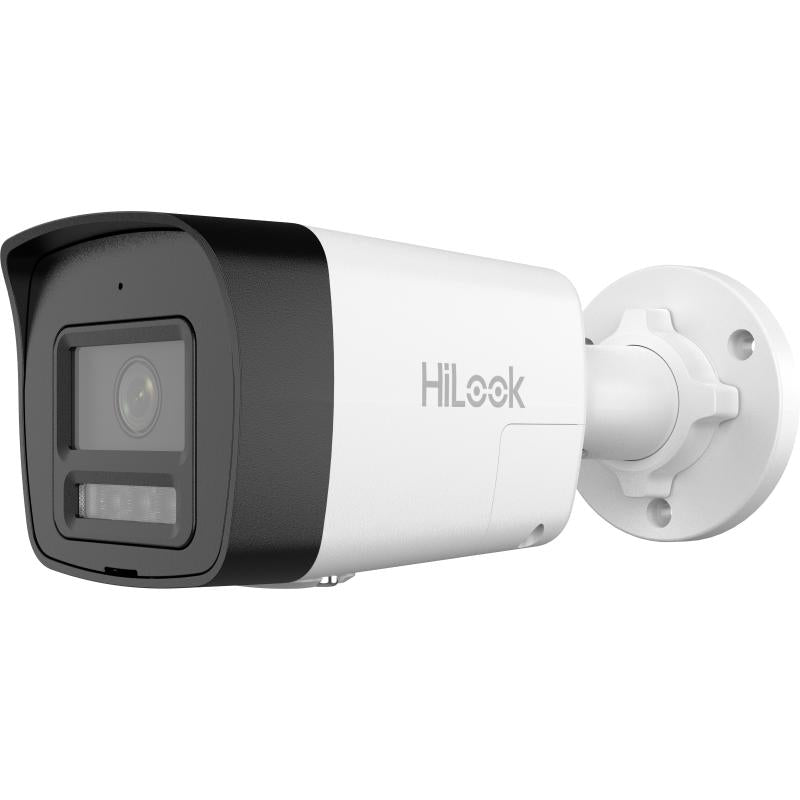

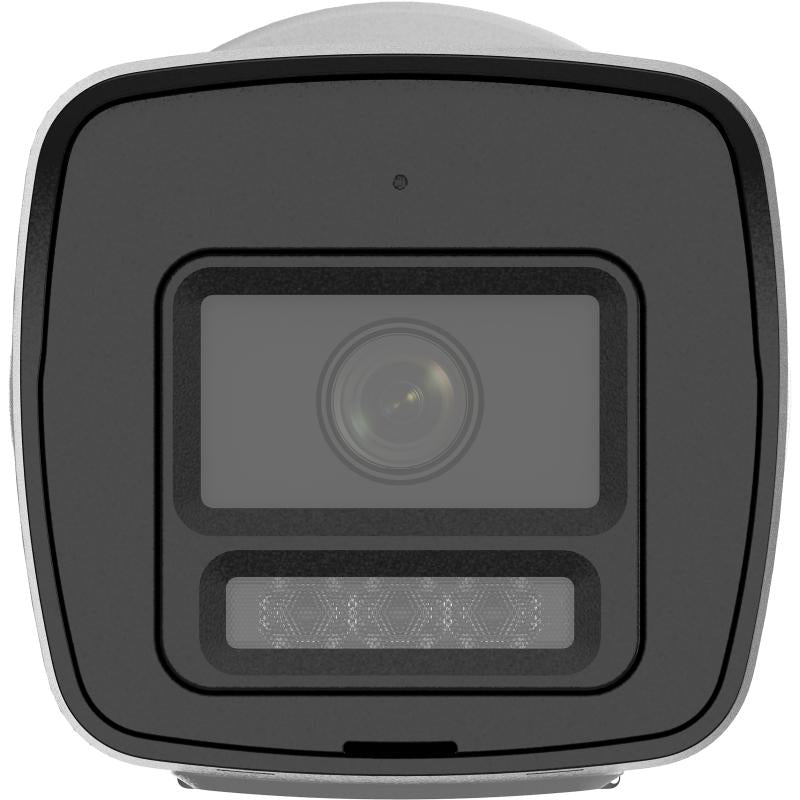

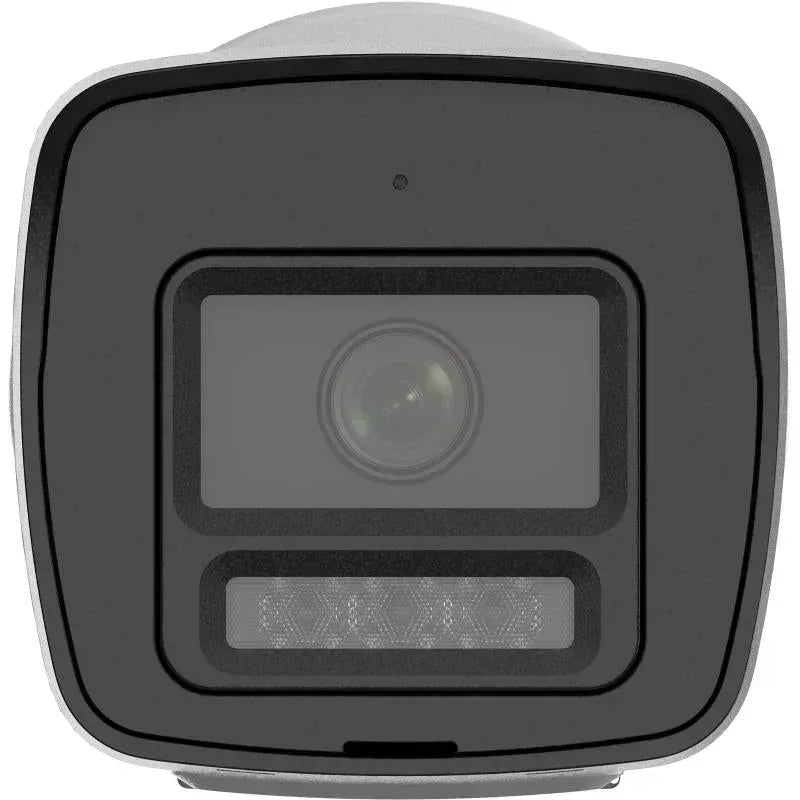

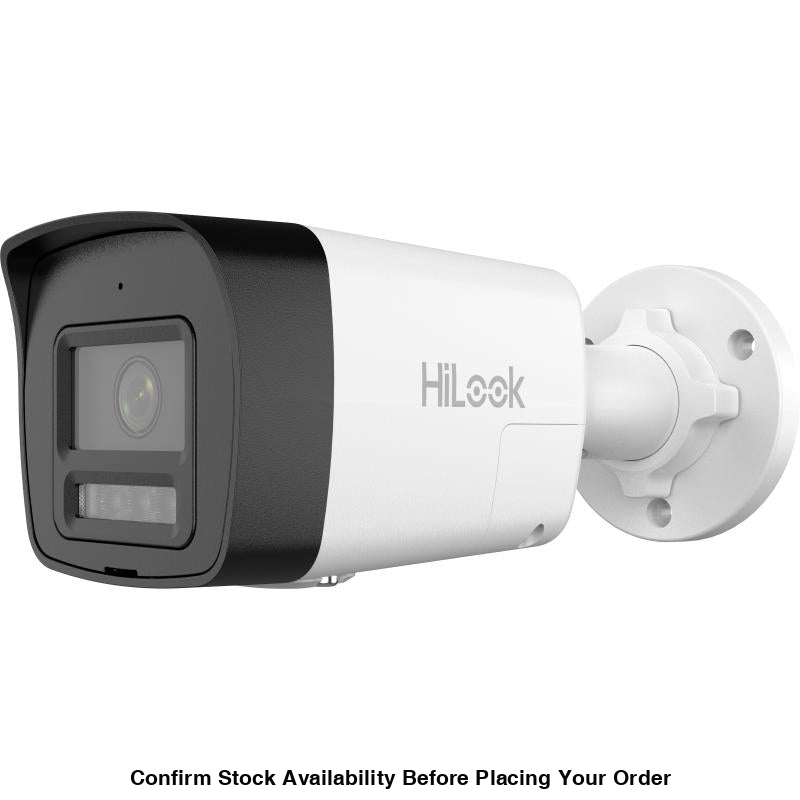

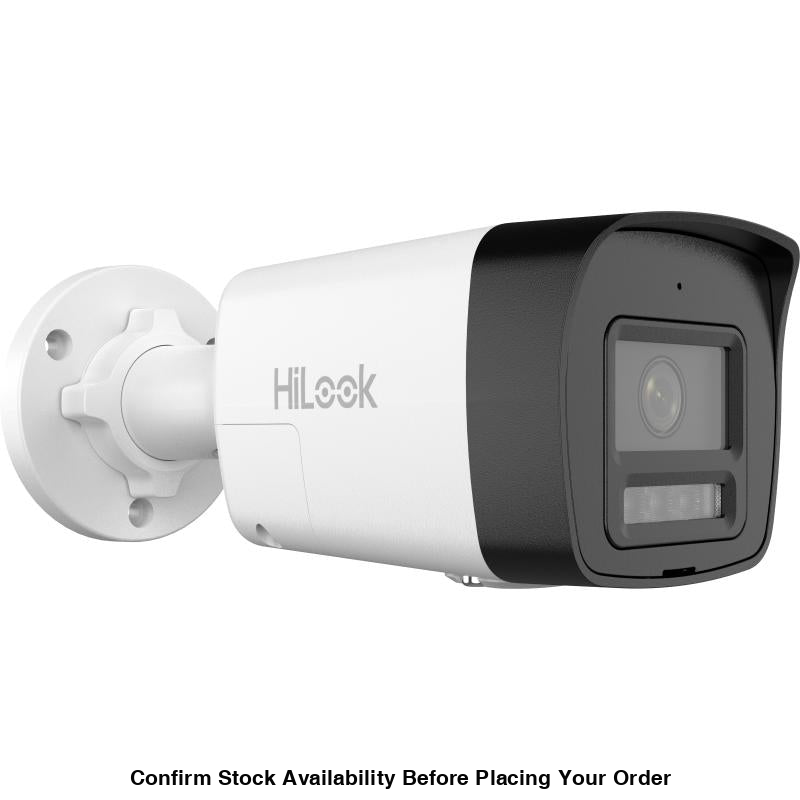

HiLook 6 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
    • Camera
    • Image Sensor1/2.4" Progressive Scan CMOS
    • Max. Resolution3200 × 1800
    • Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & Night IR cut filter
    • Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
    • Lens
    • Lens Type Fixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

      4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

    • Lens MountM12
    • Iris Type Fixed
    • ApertureF1.6
    • DORI
    • DORI

      2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

      4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

    • Illuminator
    • Supplement Light TypeIR,White Light
    • Supplement Light Range Up to 30 m
    • Smart Supplement Light Yes
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz:

      20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz:

      20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 Type Baseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR,VBR
    • Region of Interest (ROI)1 fixed region for main stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Audio
    • Audio Type Mono sound
    • Audio Sampling Rate8 kHz/16 kHz
    • Environment Noise Filtering Yes
    • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
    • Network
    • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
    • Simultaneous Live View Up to 6 channels
    • APIO pen Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
    • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • ClientiVMS-4200,HiLookVision
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Image
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥ 52 dB
    • Day/Night SwitchDay,Night,Auto,Schedule
    • Image EnhancementBLC,HLC,3D DNR
    • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Privacy Mask4 programmable polygon privacy masks
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage



      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

    • Built-in MicrophoneYes,1 built-in microphone
    • Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
    • Reset KeyYes
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
    • General
    • Power

      12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

      PoE: IEEE 802.3af, Class 3, max. 9.5 W

    • Material Metal & Plastic
    • Dimension179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
    • Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
    • Weight Approx. 280 g (0.6 lb.)
    • With Package Weight Approx. 475 g (1.0 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language English, Ukrainian
    • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
    • Flashing Light Yes
    • Approval
    • EMC

      CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7

    • Safety

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017

    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ProtectionIP67: IEC 60529-2013
View full details
