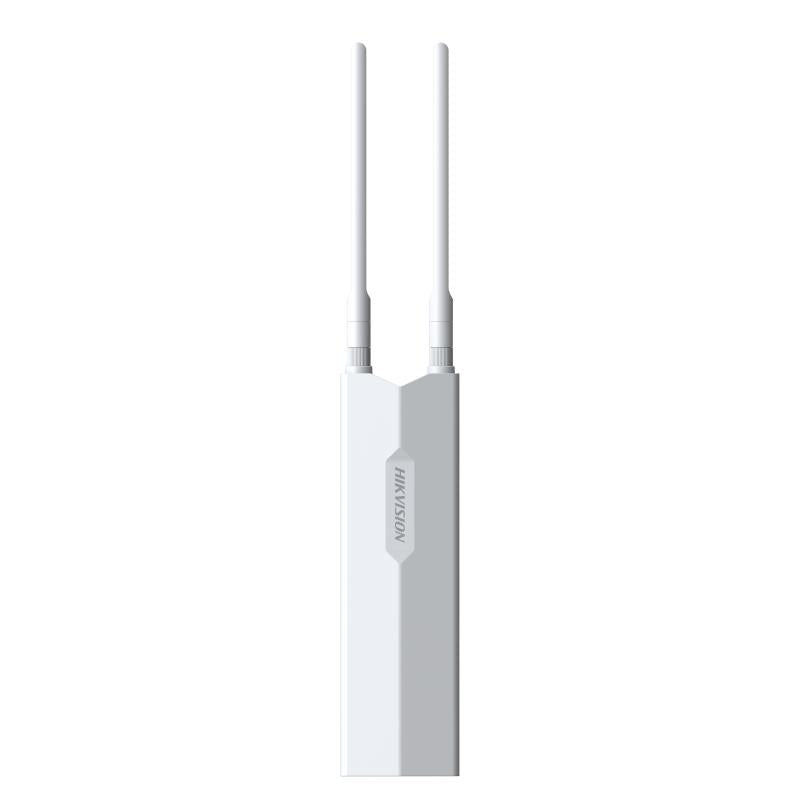

Hikvision WiFi 5 1200Mbps outdoor access point

Hikvision WiFi 5 1200Mbps outdoor access point

R 1,671.00 ZAR
R 1,671.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-3WAP5312-EI
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision WiFi 5 1200Mbps outdoor access point

Hikvision DS-3WAP5312-EI: Hikvision WiFi 5 1200Mbps outdoor access point.

Key Features

  • 1 × Gigabit PoE in port,1 × Gigabit RJ45 port
  • 802.11ac Wave 2 1200 Mbps
  • Wall & Pole Mount
  • Wide Signal Coverage
  • IP65 Waterproof

Specifications

General
Net Weight 0.34 kg (0.75 lb)
Gross Weight 0.55 kg (1.21 lb)
Installation Mode Wall Mounting, Pole Mounting
Working Temperature -30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity 0% to 100% (no condensation)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity 0% to 100% (no condensation)
Product Dimensions (W × H × D) 65 mm × 225 mm × 32 mm
Packing List 1200 M Access Point ×1, Antenna × 2, Band Clamp × 2, Mounting Bracket × 1, Screw Pack × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply Method PoE power supply: IEEE 802.3at
Power Consumption Standby Power Consumption: 4W Typical Power Consumption: 9W Maximum Power Consumption: 18W
Protection Grade IP65
Wireless Speed Max.: 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps
Wireless Standard Wi-Fi 5
Working Frequency Band Radio 1: 5G (11a/n/ac) Radio 2: 2.4G (11b/g/n)
Bandwidth 2.4G: Auto/20/40 MHz 5G: Auto/20/40/80 MHz
Recommended Coverage Range Recommended Coverage Radius: 150 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Max. Number of Connected Clients 128
Recommended Number of Connected Clients 80
Transmitting Power 2.4G: Combined power: 27 dBm; 5G: Combined power: 27 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
Wireless Security WPA2-PSK, WPA-WPA2-PSK
Antenna Integrated 2.4 GHz and 5 GHz: 2 external omnidirectional antennas
Antenna Gain 2.4 GHz: 3.7 dBi 5 GHz: 5 dBi
RF Design Dual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
FEM 2.4 GHz: 2 x eFEM 5 GHz: 2 x eFEM
Ports 1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
RESET 1 × Reset hole
Max. Number of Wireless SSIDs 7
Internet Access Mode DHCP,Static
VLAN ID Range 1~4000
Max. Number of VLANs 8
Operation Mode AP mode (default); Routing mode;
Interface Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN; Support QoS;
IP Services Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Portal Authentication Support Portal Authentication;
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020

Product Details

  • Model: DS-3WAP5312-EI
  • Brand: Hikvision
  • Hikvision model reference: DS-3WAP5312-EI
