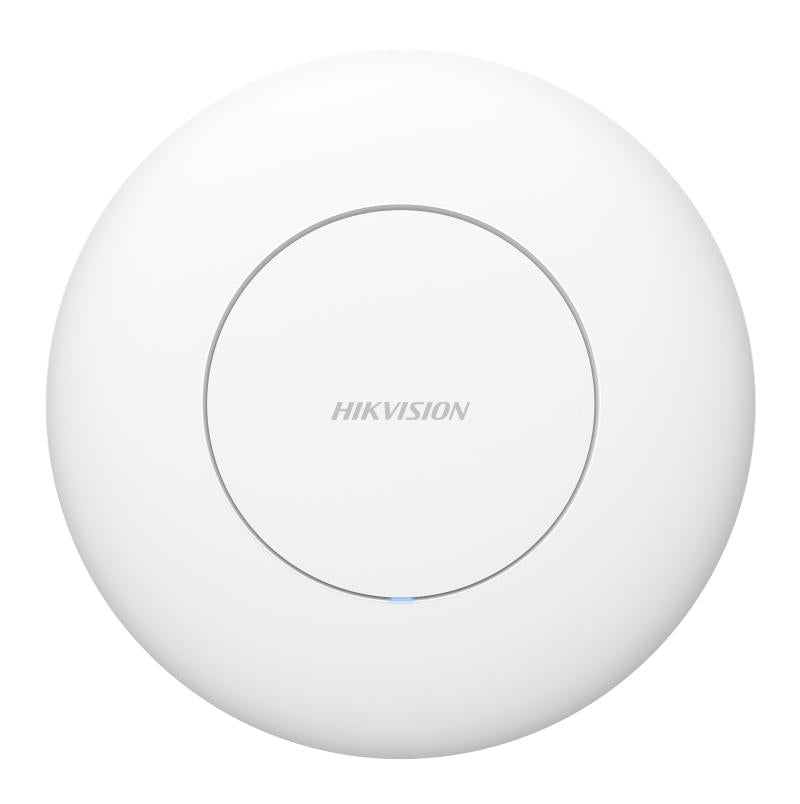

Hikvision WiFi 5 1200Mbps indoor ceiling access point

Hikvision WiFi 5 1200Mbps indoor ceiling access point

R 1,346.00 ZAR
R 1,346.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-3WAP5212-EI
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision WiFi 5 1200Mbps indoor ceiling access point

Hikvision DS-3WAP5212-EI: Hikvision WiFi 5 1200Mbps indoor ceiling access point.

Key Features

  • 1 × Gigabit PoE in port,1 × Gigabit RJ45 port
  • 802.11ac Wave 2 1200 Mbps
  • Auto RF Optimization
  • Wide Signal Coverage
  • Reliable Wi-Fi Connection
  • Outstanding Wall Penetration

Specifications

General
Net Weight 0.36 kg (0.79 lb)
Gross Weight 0.6 kg (1.32 lb)
Installation Mode Ceiling Mounting
Working Temperature 0°C to 40°C (32°F to 104°F)
Working Humidity 10% to 90% (no condensation)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Storage Humidity 5% to 95% (no condensation)
Product Dimensions (W × H × D) Ø220 mm × 49.7 mm (excluding bracket）
Packing List 1200 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply Method DC power supply: 12 V, 1.5 A; PoE power supply: IEEE 802.3at;
Power Consumption Standby Power Consumption: 4W Typical Power Consumption: 9W Maximum Power Consumption: 18W
Wireless Speed Max: 1167 Mbps; 2.4G: 300 Mbps; 5G: 867 Mbps;
Wireless Standard Wi-Fi 5
Working Frequency Band Radio 1: 5G (11a/n/ac); Radio 2: 2.4G (11b/g/n);
Bandwidth 2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
Recommended Coverage Range Recommended Coverage Range: 140 m², the radius in an open environment is 25 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Max. Number of Connected Clients 128
Recommended Number of Connected Clients 80
Transmitting Power 2.4G: Combined power: 28 dBm; 5G: Combined power: 28 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
Wireless Security WPA2-PSK, WPA-WPA2-PSK
Antenna 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
Antenna Gain 2.4 GHz: 3.5 dBi 5 GHz: 4.5 dBi
RF Design Dual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
FEM 2.4 GHz: 2 x eFEM 5 GHz: 2 x eFEM
Ports 1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
RESET 1 × Reset hole
Max. Number of Wireless SSIDs 7
Internet Access Mode DHCP,Static
VLAN ID Range 1~4000
Max. Number of VLANs 8
Operation Mode AP mode (default); Routing mode;
Interface Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN; Support QoS;
IP Services Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Portal Authentication Support Portal Authentication;
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio EN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020

Product Details

  • Model: DS-3WAP5212-EI
  • Brand: Hikvision
  • Hikvision model reference: DS-3WAP5212-EI
