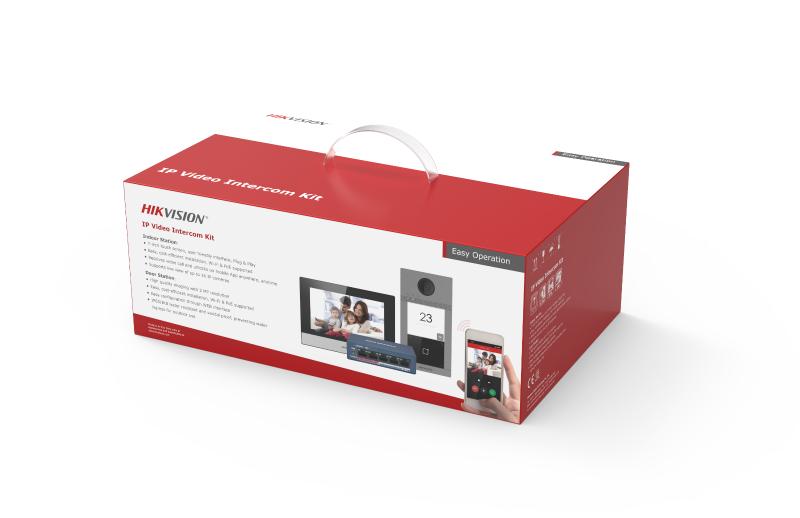

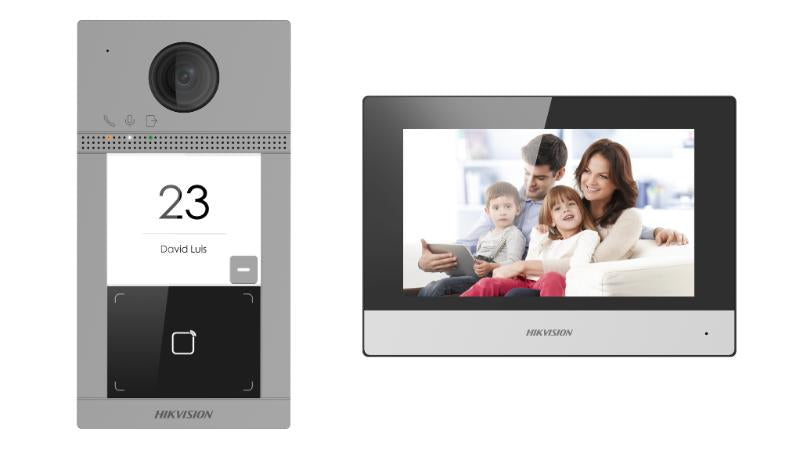

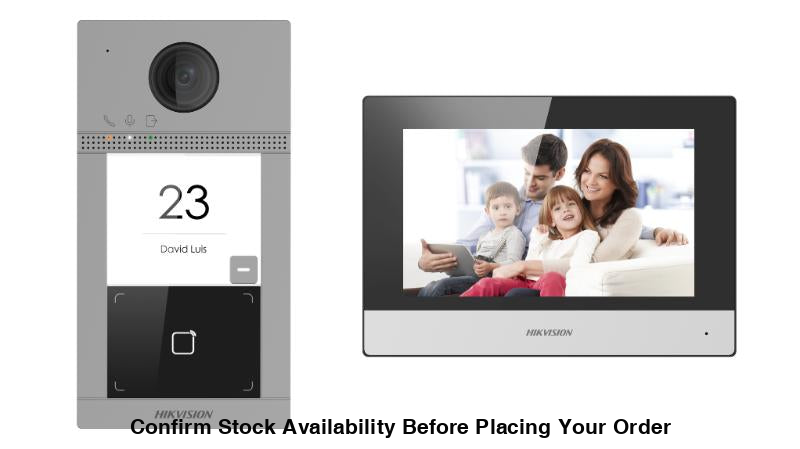

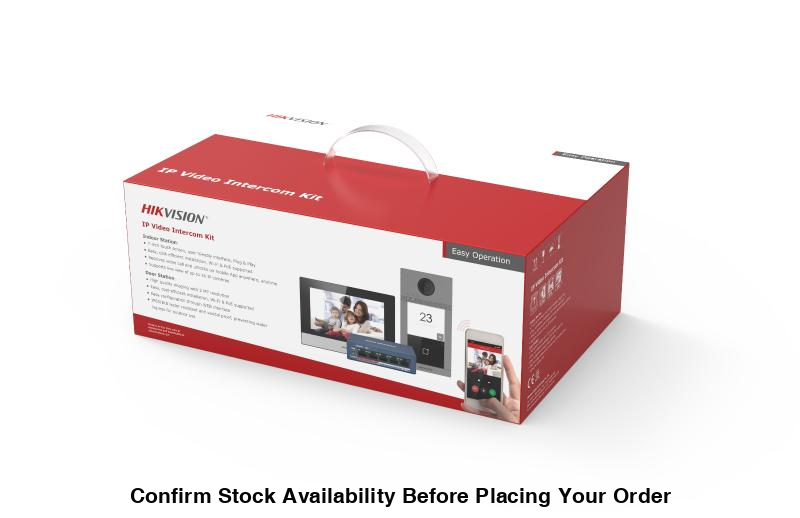

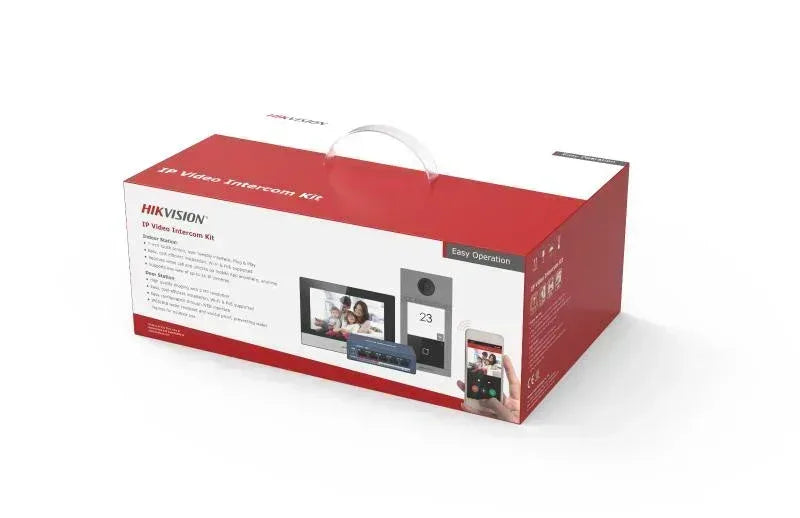

Hikvision IP Video Intercom Kit
- IP video intercom kit for villa or house, only one call button;
- DS-KV8113-WME1 x1;
- DS-KH6320-WTE1 x1;
- PSU x2(-P modal) x1;
- 16GB TF card x1;
- POE switch(-S modal) x1;
-
- Door station/System parameters
- Operation system Embedded Linux operation system
- Flash32 MB
- RAM128 MB
- Door station/Video parameters
- Camera2MP HD camera
- Night vision Low illumination IR supplement mode:3 m
- Backlight compensation Support
- Digital noise reduction Support
- WDR True WDR
- Field of view Horizontal: 129° Vertical: 75°
- Video Compression StandardH.264
- Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion detection Support
- Flash-avoid frequency50 Hz, 60 Hz
- Door station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Audio quality Noise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Audio intercom Two-way audio communication
- Door station/Network parameters
- Network protocol TCP/IP, RSTP
- Wired network10/100 Mbps Ethernet
- Door station/Device interfaces
- RS-4851
- Alarm input4
- Debugging port1
- Grounding1
- TAMPER switch1
- Door station/General
- Power consumption＜ 10 W
- Working temperature-40° C to 53° C(-40° F to 127.4° F)
- Working humidity10% to 95%
- Dimension174 mm × 91 mm × 29 mm
- Installation Surface mounting
- Protection levelIP65, IK08
- Indicator3
-
Power supply
IEEE802.3af, standard PoE
12 VDC
- Indoor station/System parameters
- Operation system Embedded Linux operation system
- Memory128 MB
- Flash32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation method Capacitive touch screen
- Indoor station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Audio quality Noise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network10/100 Mbps self-adaptive
- Wireless network Wi-Fi 802.11 b/g/n
- Protocol TCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor station/Device interfaces
- RS-4851
- Alarm input8-ch alarm inputs
- Relay output2
- TF card Max to 32 G, SD 2.0 or lower version
- Indoor station/General
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
