• Hikvision 10-Inch IP intercom main station 12VDC/POE
1 1

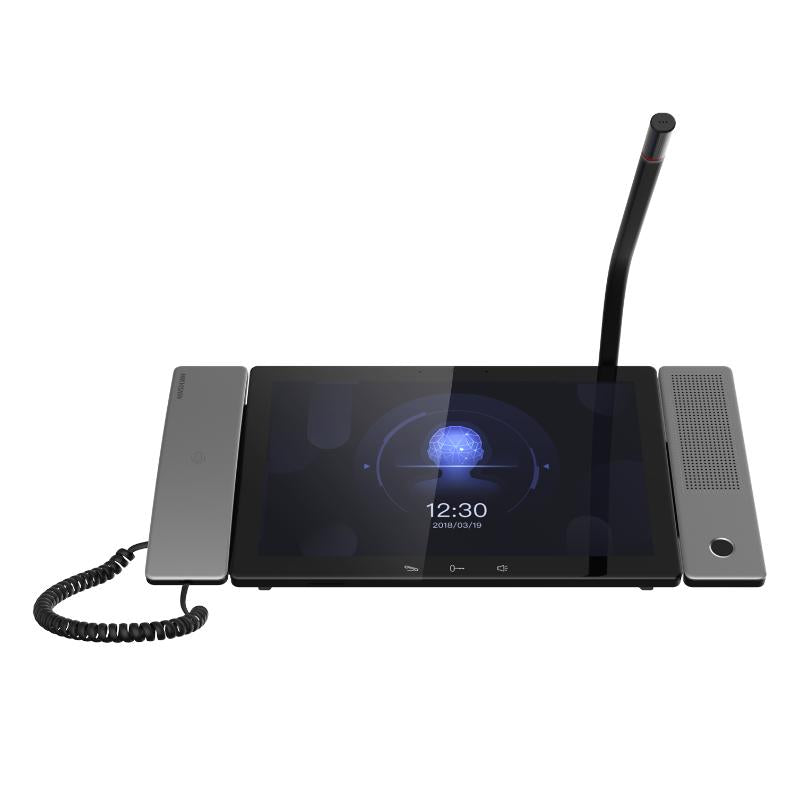

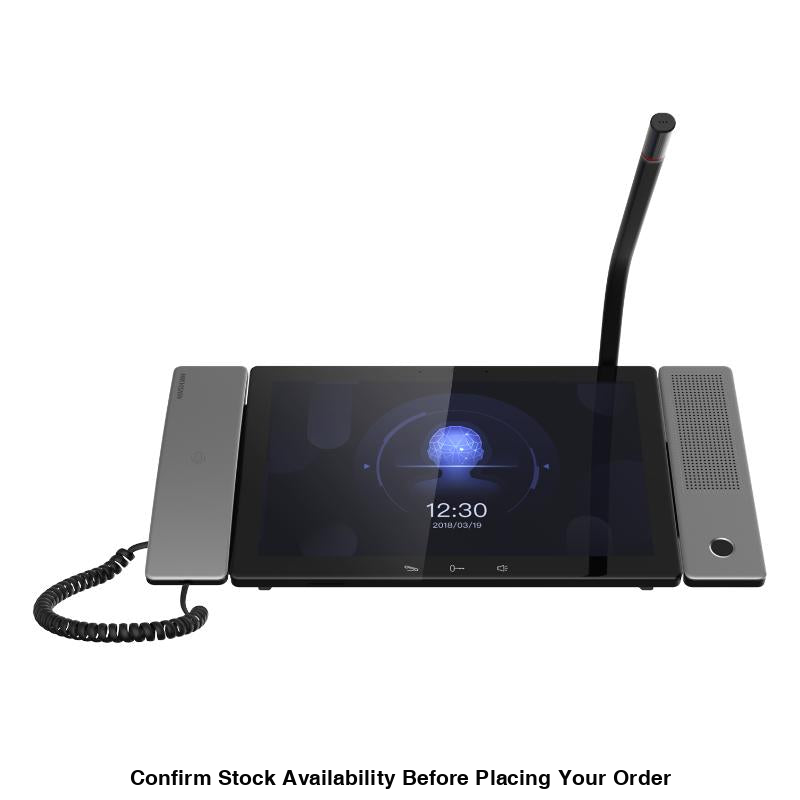

Hikvision 10-Inch IP intercom main station 12VDC/POE

Hikvision 10-Inch IP intercom main station 12VDC/POE

R 19,439.00 ZAR
R 19,439.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-KM9503_C

Hikvision 10-Inch IP intercom main station 12VDC/POE

  • 10.1-inch IPS touch screen with 1280 × 800 resolution
  • Built-in SIP private server, up to 10,000 video intercom devices accesses Up to 128 network cameras can be added to the device
  • Supports more than 2 speakers and microphones: Connects to external earphone (3.5 mm), external goose neck microphone
  • Displays operation pages via HDMI
  • Supports standard PoE & 12 VDC power supply
  • Video intercom and access control functions: Call waiting, call priority configuration, call across buildings, call forwarding (call forward when no answer, call forward when busy, call forwarding schedule, one-touch call forwarding), IPC forwarding Multi-party intercom
    • System parameters
    • Operation system Android 7.1
    • ROM8 GB
    • RAM2 GB
    • Processor Embeded high performance processor
    • Display parameters
    • Screen size10.1-inch
    • Operation method Capacitive touch screen
    • Type Colorful IPS
    • Resolution1280 × 800
    • Video parameters
    • Lens/
    • Resolution2 MP
    • FOV Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
    • Wide dynamic range (WDR)/
    • Supplement light/
    • Video compression standard

      Main stream: H.264;

      Sub-stream: H.264

    • Audio parameters
    • Audio input Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
    • Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
    • Audio output Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
    • Audio compression bitrate64 Kbps
    • Audio quality Noise suppression and echo cancellation
    • Volume adjustment Adjustable
    • Capacity
    • Linked network camera capacity128
    • Linked intercom device capacity10,000
    • Network parameters
    • Network protocol TCP/IP, SIP, RTSP
    • Wi-Fi/
    • 3G/4G/
    • Zigbee/
    • Device interfaces
    • Alarm input2 (reserved)
    • Network interface2
    • TAMPER/
    • RS-4851 (reserved)
    • USB3
    • TF card Support TF card, up to 128 G
    • Lock control2 relays (reserved)
    • General
    • Button3 touch buttons
    • Installation Table mounting & wall mounting
    • Indicator3
    • Weight

      Net weight: 1.285 kg (2.8 lb)

      Gross weight: 2.305 kg (5.0 lb)

    • Protective level/
    • Working humidity10% to 90% (no-condensing)
    • Dimension (W × H × D)292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
    • Battery/
    • Power supply12 VDC, standard PoE (LAN1)
    • Application environment Indoor
    • Power consumption≤ 12 W
    • Language English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian English, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese.
