Foredge Foredge 4-port industrial switch, 2-SFP ports

Foredge Foredge 4-port industrial switch, 2-SFP ports

R 2,792.00 ZAR
R 2,792.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

IS104GS-2F
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

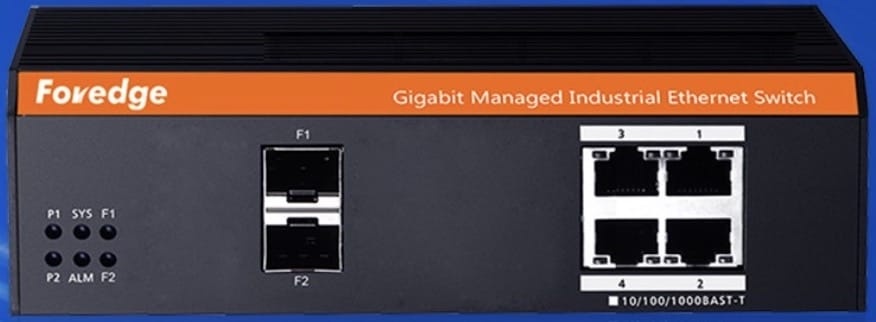

Foredge Foredge 4-port industrial switch, 2-SFP ports

Foredge 4-port industrial switch, 2-SFP ports. IS104GS-2F Foredge 6-Port Gigabit Managed Industrial Switch with 2 SFP ports, compact design, robust security, and reliable performance.

Key Features

  • 4x 10 / 100 / 1000 Mbps RJ45 ports, 2 Gigabit SFP fibre optic ports.
  • Small volume personalised design, flexible deployment in small spaces.
  • Diverse security protection strategies ensure stable and highly reliable operation of equipment.
  • High quality hardware design and stable device performance.
  • Rich network functions and security features.
  • Flexible networking and easy management.
  • I would like to receive updates about featured products.
  • Planet 16-Port, Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfaces, 26.7Mpps @64 bytes, Max. 10.4 watts, Power Requirements-100~240V AC, 50/60Hz, 0.8A (max) SKU: CA-GS-4210-16T2S Get Product Info

Specifications

Specifications
Network Interface 10 / 100 / 1000 Mbps RJ45 ports × 4 10 / 100 / 1000 Mbps SFP ports × 2 Console port × 1
Network Protocol IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at
Performance Bandwidth: 12 Gbps (Non-Block) Throughput: 8.9 Mpps MAC table: 8K Port cache: 4.1 Mb Forwarding model: Store and forward
LED Indicator Power: P1, P2 System: SYS Alarm: ALM SFP Port: Link & Act F1~F2 RJ45 Port: Link & Act 1~4
Power Supply Input voltage: 12-56V DC Input port: Pluggable 5-pin terminal block, 5.08 mm pitch (supports dual DC backup, overcurrent protection, anti-reverse connection)
Physical Parameter Casing: Corrugated high-strength metal housing, IP40 Installation: DIN-Rail Dimension (L×W×H): 163 mm × 110 mm × 46.5 mm
AI Features AI Button AI Loop Protect AI VLAN
DHCP / VLAN DHCP Snooping 4K VLAN 802.1Q VLAN, MAC VLAN, IP VLAN Voice VLAN
MAC Table IEEE 802.1d standard Automatic learning and aging Support static, dynamic, filtering address tables
Security Password protection Restrict user access by port number, IP, MAC HTTPS, SSL V3, TLS V1, SSH V1 / V2 IP-MAC-PORT ternary binding ARP protection, IP source protection, DoS protection DHCP Snooping, DHCP attack protection 802.1X authentication, AAA Port security, port isolation CPU protection
ACL L2 ~ L4 packet filtering Port mirroring, port redirection, flow rate limit, QoS remarking
QoS 8 port queues Port priority, 802.1P priority, DSCP priority SP, RR, WRR priority scheduling
Spanning Tree STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) Loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Multicast IGMP v1 / v2 Snooping Multicast VLAN Multicast filtering, packet statistics, unknown multicast discards
Storm Suppression Multicast suppression Broadcast suppression Unknown unicast suppression
Link Aggregation Static aggregation Dynamic aggregation IP, MAC, hybrid load balancing Up to 32 aggregation groups
IPv6 IPv6 Ping, IPv6 Tracert, IPv6 Telnet IPv6 SSH, IPv6 SSL
Management & Maintenance WEB management (HTTP, HTTPS, SSL V3) CLI (Telnet, SSH V1 / V2, Local serial port) SNMP V1 / V2 / V3 LLDP, RMON ARP protection, IP source protection, DoS protection CPU monitoring, memory monitoring System log, graded warning Ping, Tracert detection, cable detection

Product Details

  • Model: IS104GS-2F
  • Brand: Foredge
View full details
