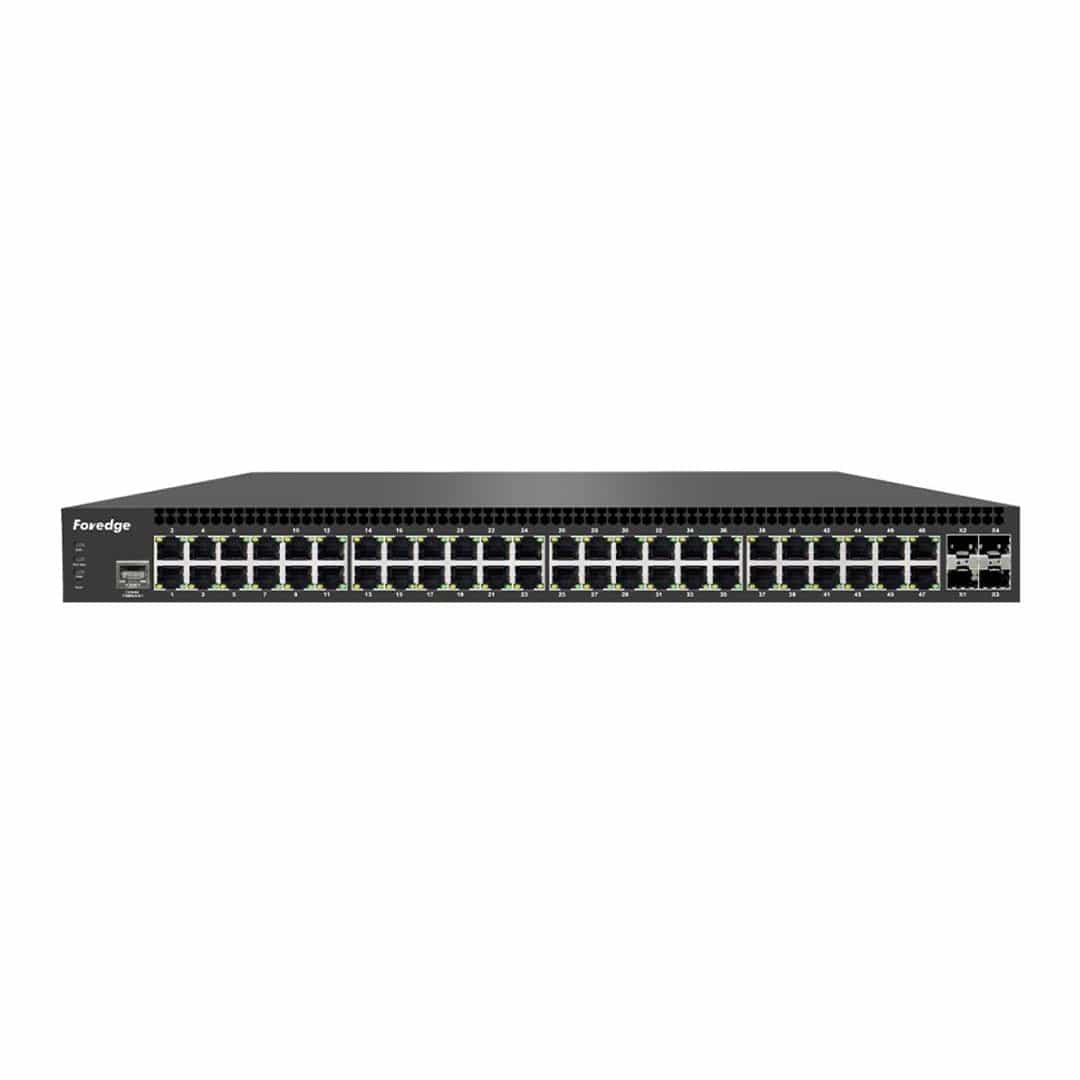

Foredge 10G Uplink 48-port Gigabit L3 PoE 700W Managed Switch S5700-48GP-4TFR-700W

Foredge 10G Uplink 48-port Gigabit L3 PoE 700W Managed Switch S5700-48GP-4TFR-700W

R 15,027.00 ZAR
R 15,027.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

S5700-48GP-4TFR-700W
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Foredge 10G Uplink 48-port Gigabit L3 PoE 700W Managed Switch S5700-48GP-4TFR-700W

L3 managed 48 port RJ45 POE Switch, with 4*10G SFP+ uplink, 1 console port, POE budget 700W,cloud management. The product adopts a new generation of high – performance hardware and software platform,provides flexible and cost – effective full-gigabit access and uplink ports.

Key Features

  • 48 10/100/1000Mbps RJ45 ports (POE)
  • 4 10 Gigabit SFP+fiber optic ports
  • High end chips with more stable and powerful performance
  • Three layer routing protocol control, adaptable to multiple services, and efficient and guaranteed information transmission
  • Supports one-stop management on the Apollo cloud platform
  • Support cloud platform for resource visualization management of switches and attached PD devices, making operation and maintenance management simpler

Specifications

Specifications
Network Interface 48 10/100/1000 Mbps RJ45 ports (PoE), 4 10G SFP+ fiber ports, 1 Console port Network Protocol: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1p, 802.1q, 802.1d, 802.1s, 802.1w, 802.3af, 802.3at
Performance Specifications Bandwidth: 176 Gbps, Packet Forwarding Rate: 130.9 Mpps, MAC Address Table: 16K, Port Cache: 12 Mb, Forwarding Mode: Store and Forward
LED Indicator 52 Link/Act indicators, 48 PoE indicators, 1 Power indicator, 1 SYS indicator
PoE Pin 1/2 (+), 3/6 (–) Power: Input: AC 100-240V/50-60Hz, Single Port Max Power: 30W, Total Power: 360W
Dimensions (L×W×H) 440 × 320 × 44 mm
IEEE 802.3 Ethernet MAC
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X (optical)
IEEE 802.3ad Link aggregation
IEEE 802.3x Flow control
IEEE 802.1p Layer 2 QoS/CoS
IEEE 802.1q VLAN
IEEE 802.1d STP
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.3af/at PoE
Layer 3 Interface Supports IPv4 and IPv6 configuration, ARP and ND configuration Layer 3 Routing: Supports IPv4 static/dynamic routing (RIP v1/v2, OSPFv2), IPv6 static/dynamic routing (RIPng, OSPFv3)
VLAN Supports 4K VLANs, 802.1Q, MAC VLAN, IP VLAN, Voice VLAN
DHCP Supports DHCP server, relay, and snooping
MAC Address Table Complies with IEEE 802.1d, supports automatic learning/aging, static/dynamic/filtered entries
PoE Management Supports power limit, chip status check, port priority, power scheduling, intelligent power supply
Access Control (ACL) Supports L2-L4 packet filtering, port mirroring, flow speed restriction, QoS remarking
QoS 8 port queues, port/802.1p/DSCP priority, SP, WRR, SP+WRR, WFQ scheduling
Spanning Tree Supports STP (802.1d), RSTP (802.1w), MSTP (802.1s), loop/root/TC/BPDU protection, optical port 50ms switching
Multicast Supports IGMP v1/v2/v3 snooping, MLD v1/v2 snooping, fast leave, L2/L3 IPv4/IPv6 static multicast
Storm Suppression Supports multicast, broadcast, and unknown unicast suppression
Link Convergence Supports static/dynamic convergence, IP/MAC/mixed load balancing, up to 32 aggregation groups
IPv6 Supports Ping, Tracert, Telnet, SSH, SSL over IPv6
Network Management Supports WEB (HTTP/HTTPS/SSL), CLI (Telnet/SSH/serial), SNMP v1/v2/v3, RMON v1/v2, LLDP, NTP, DNS, CPU/memory monitoring, system logs and alerts, Ping/Tracert/cable detection, Apollo cloud platform management

Product Details

  • Model: S5700-48GP-4TFR-700W
  • Brand: Foredge
